PRE PARING FOR THE INSTALLATION
33

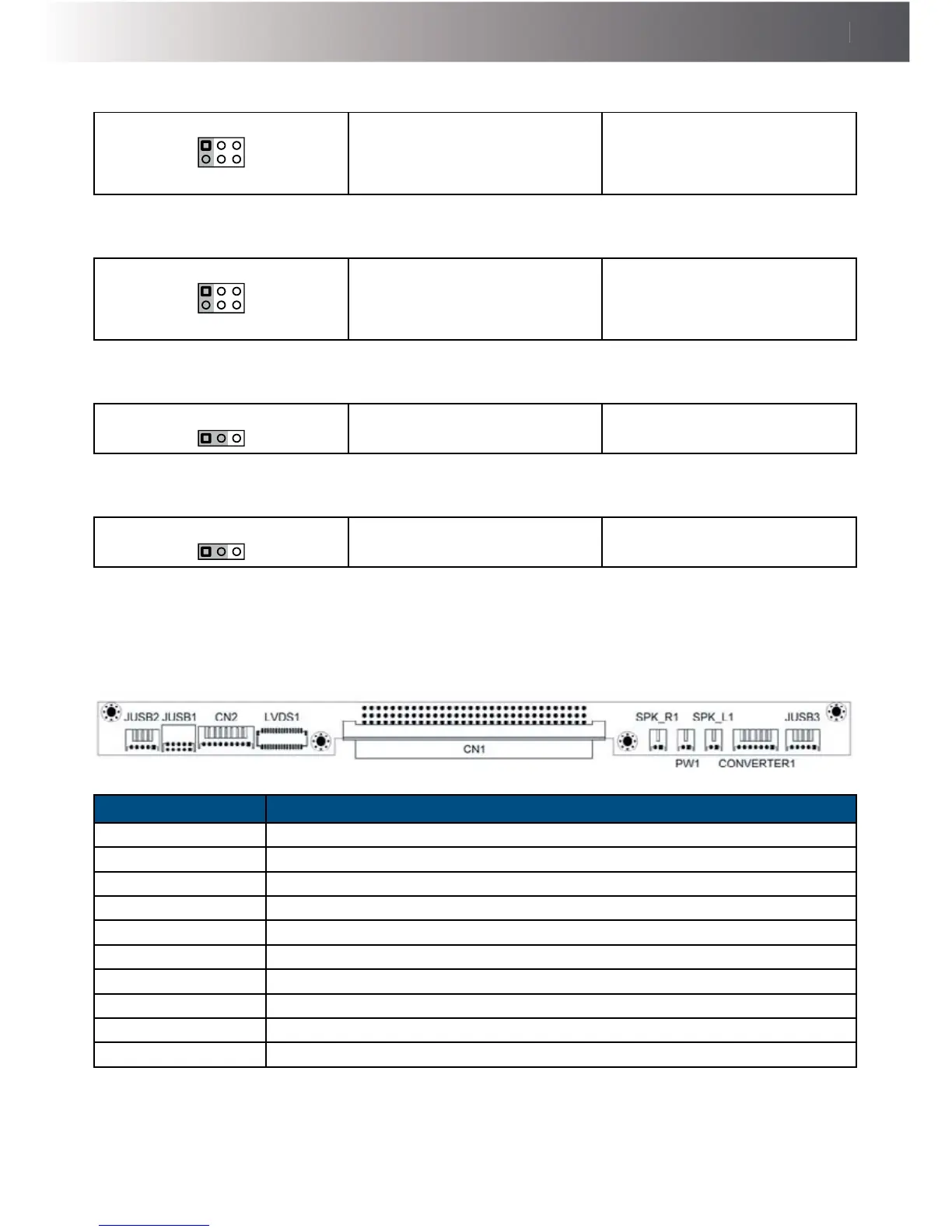

JP8 COM 2 D-SUB PIN9 VOLTAGE SELECT
1 3 5
2 4 6
1-2 = 0V / RI
3-4 = +5V
5-6 = +12V
Default = 0V
JP9 COM 1 D-SUB PIN9 VOLTAGE SELECT
1 3 5
2 4 6
1-2 = 0V / RI
3-4 = +5V
5-6 = +12V
Default = 0V
JP12 Keyboard VOLTAGE SETTING
1 2 3
1-2 = 5VSB
2-3 = +5V
Default = Normal
JP13 CASH DRAWER VOLTAGE SETTING
1 2 3
1-2 = +24V
2-3 = +12V
Default = Normal
Signal Convergence Board Connector
Connector/Jumper Description
JUSB1 USB port for USB Touch
JUSB2 USB port for POS input device
JUSB3 USB port for POS input device
CONVERTER1 LED backlight inverter connector
SPK_L1 Speaker connector
SPK_R1 Speaker connector
PW1 connector to Power switch (optional)
LVDS1 2x15 LVDS connector
CN2 COM5 connector for RS-232 POS input device for G-615 / G-715
CN2 COM6 connector for RS-232 POS input device for G-615S / G-715S
