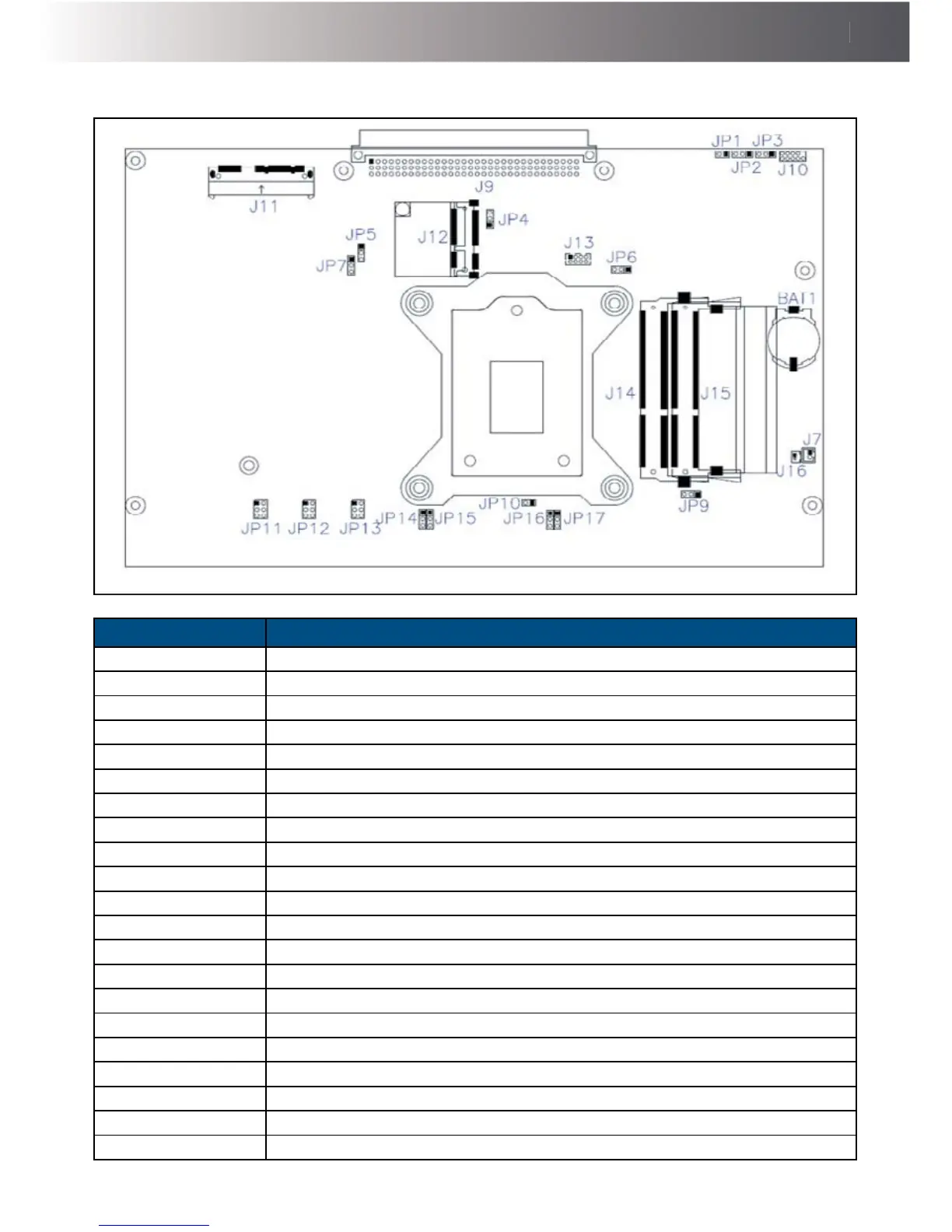

Datavan G-615S - G-715 S;G-715 SR Main Board Bottom View

PRE PARING FOR THE INSTALLATION
31
Bottom View
Connector/Jumper Description
CN1 Audio line output connector
CN2 VGA output connector
CN3 Gigabit LAN connector
CN4 USB3.0 *2 connector
CN5 USB2.0 *2 connector
CN6 USB2.0 Vertical connector
CN7 E-SATA + USB connector
CN8 Cash Drawer output
CN9 PS/2 keyboard connector
CON10 HDMI Vertical connector
CON11 COM1 connector
CON12 COM2 connector
CON13 COM3 connector
CON14 24V DC power input
CON15 12V DC power output
J1 I/O Brick
J2 80 Port Debug Connector (Factory use only)
J3 Parallel Port Connector (optional)
J4 HDD Power Connector
J5 / J6 COM5/4 RS232 Serial Port
J7 Power Button Connector
