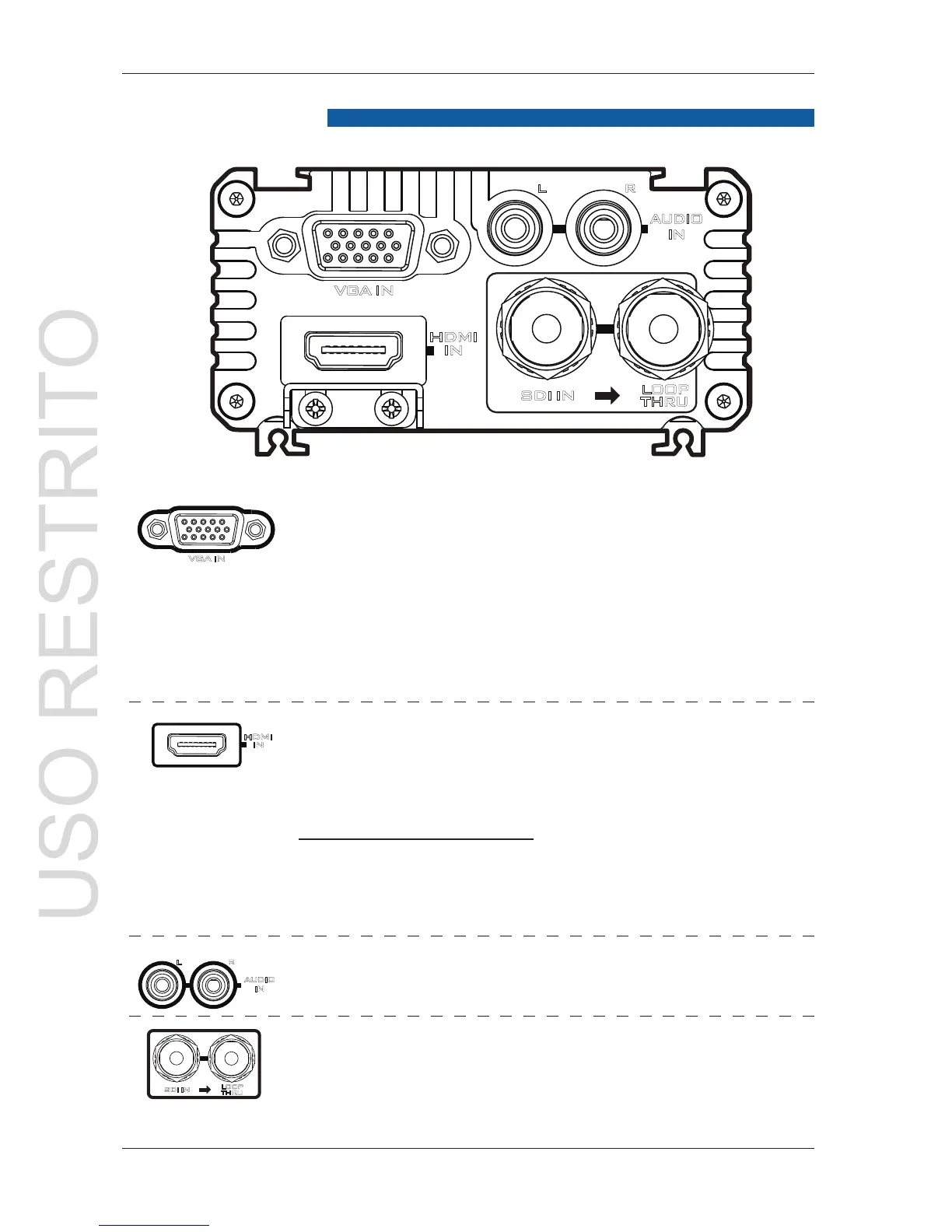

Front Panel
L R
VGA IN
HDMI
IN
SDI IN
LOOP
THRU
AUDIO
IN
VGA IN
HDMI
IN
L R
AUDIO
IN
SDI IN
LOOP
THRU
Video In
Connects your VGA connector equipment to this
connector
Supported resolutions
800x600 @60Hz, 1024x768 @60Hz,
1280x1024 @60Hz, 1366x768 @60Hz,
1400x1050 @60Hz, 1600x1200 @60Hz
HDMI In
Connects your HDMI connector equipment to this
connector
HDCP Copy Protection
For legal reasons the HDMI input is unable to pass
on video from copy protected HDMI sources.
Audio In
Inputs for 2 channels RCA unbalanced audio
HD-SDI In & Output (Loop Thru)
HD-SDI input and Loop-through output connectors.
