EN Dateq BCS70 Manual BCS72(GE) dual stereo input module 11

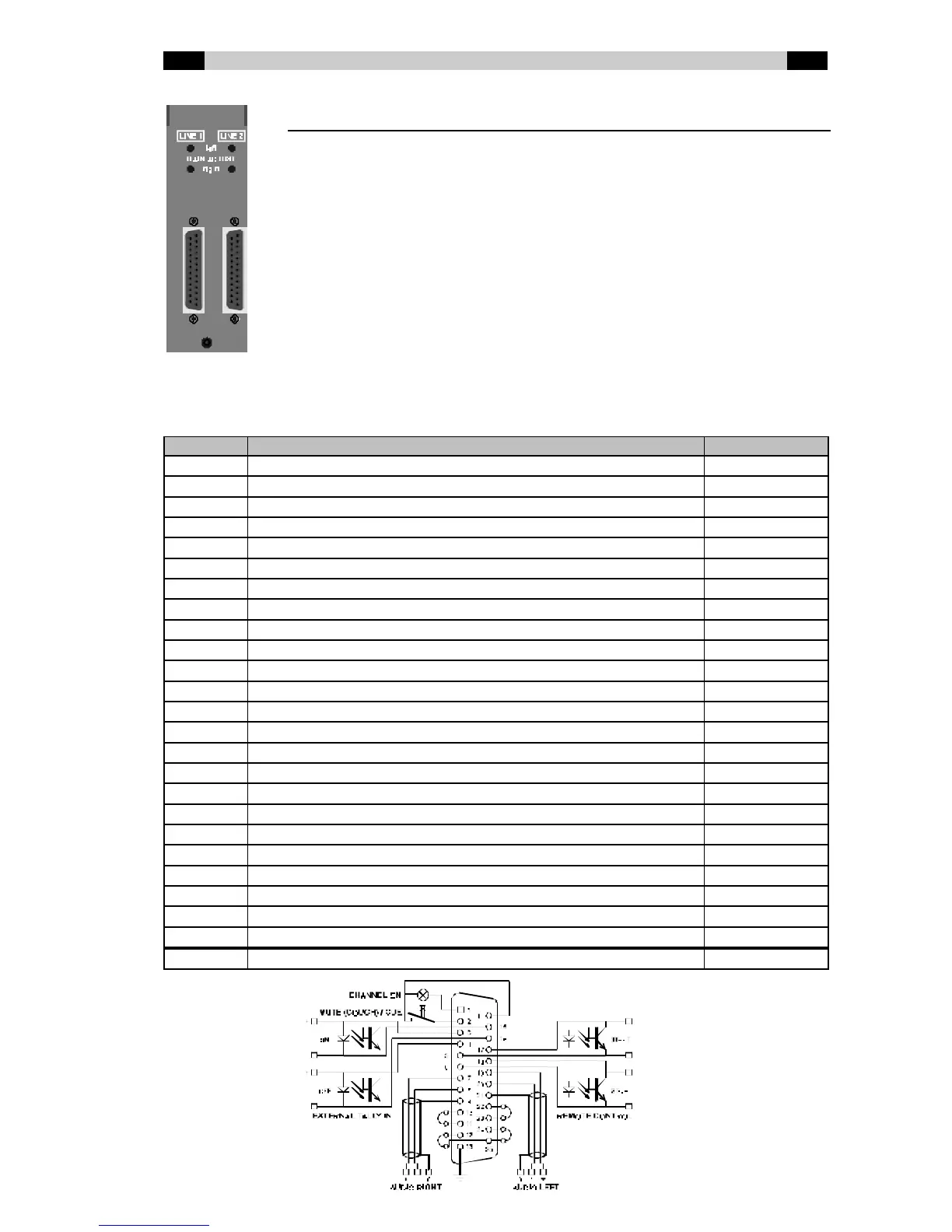

BCS72(GE) connector board
GAIN ADJUST The input level can be trimmed separately for both
channels of both inputs. Use a small screw driver to
adjust the trimmers in the holes marked 'left' and
'right'.
LINE 1 First stereo line input on 25-pin female Sub-D
connector.
LINE 2 Second stereo line input on female 25-pin Sub-D
connector. Identical facilities to the first line input.
BCS72(GE) Audio and Control Input / Output (Sub-D 25-pin female)
Pin Function Type
1 Channel ON / External CUE lamp Out
14 External CUE lamp / External CUE or Cough switch D-GND
2 External CUE or Cough switch In
15 External tally ON - (opto-coupler cathode) In
3 External tally ON + (opto-coupler anode) In
16 External tally OFF - (opto-coupler cathode) In
4 External tally OFF + (opto-coupler anode) In
17 Remote control Start (opto-coupler collector) Out
5 Remote control Start (opto-coupler emitter) Out
18 Remote control Stop (opto-coupler collector) Out
6 Remote control Stop (opto-coupler emitter) Out
19 Audio Left + In
7 Audio Right + In
20 Audio Left - In
8 Audio Right - In
21 Audio Left GND A-GND
9 Audio Right GND A-GND
22 Insert Send Left + (no insert used: connect to pin 23) Out
10 Insert Send Right + (no insert used: connect to pin 11) Out
23 Insert Return Left + (no insert used: connect to pin 22) In
11 Insert Return Right + (no insert used: connect to pin 10) In
24 Insert Return Left - (no insert used: connect to pin 25) In
12 Insert Return Right - (no insert used: connect to pin 25) In
25 Insert GND (no insert used: connect to pins 12 and 24) Out
13 Frame GND FRAME
