Datex-Ohmeda Tec 7 - Page 40

Tec 7 Vaporizer
7-4 1175-0013-000
Fluotec 5%

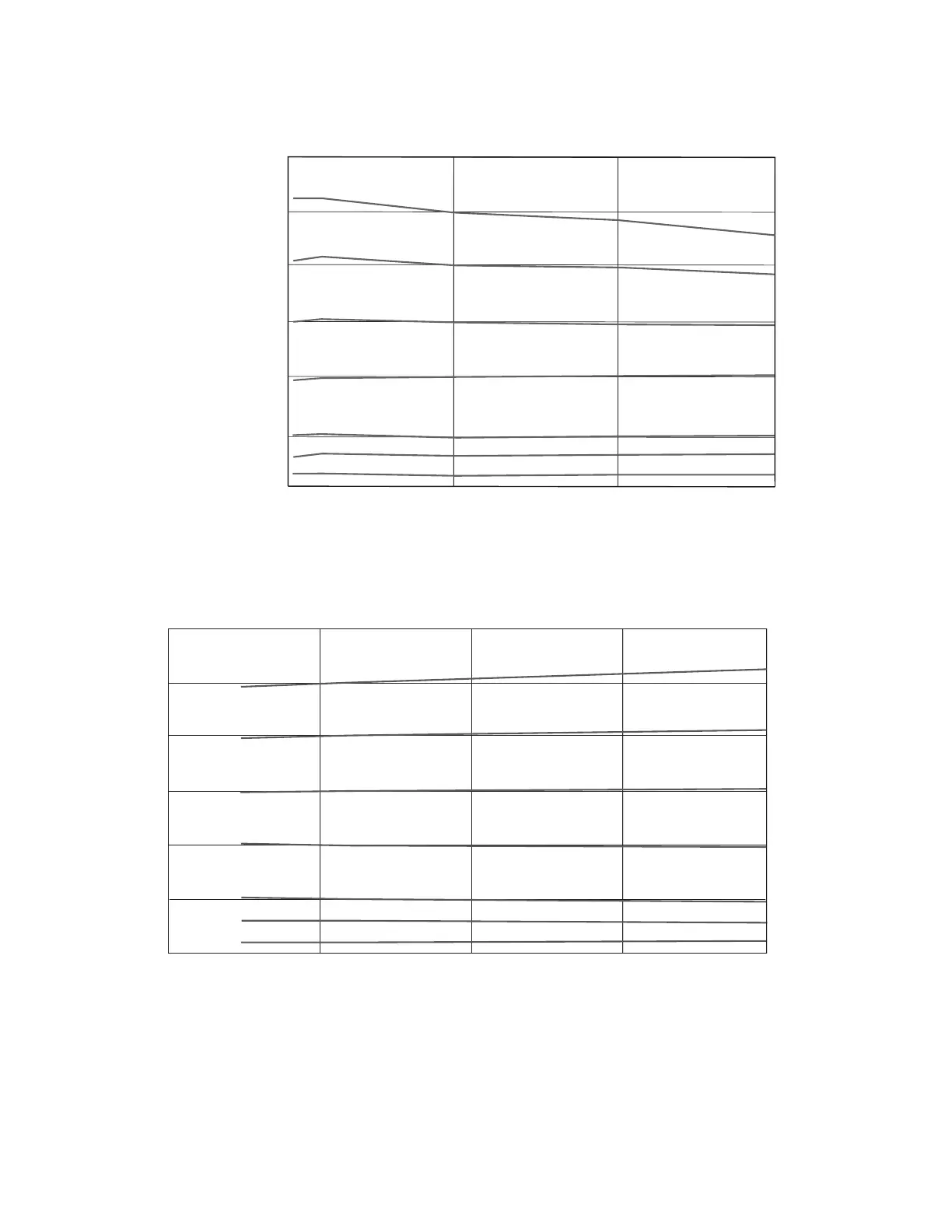

Figure 7-3 • Effect of Flowrate at 21 ± 2° C with oxygen flowing
Figure 7-4 • Effect of temperature at 5 liters/minute with oxygen flow
0
1
2
3
4
5
0.2 1 5 10 15
5
4
3
2
1
0.6
0.2
AB80029
% HALOTHANE
DIAL SETTING
Flowrate (liters/minute oxygen)
0
1
2
3
4
5
15 20 25 30
5
4
3
2
1
0.6
0.2
35
AB80030
% HALOTHANE
DIAL SETTING
Temperature °C
