Datex-Ohmeda Tec 7 - Page 41

7 Specifications
1175-0013-000 7-5
Sevotec 5%

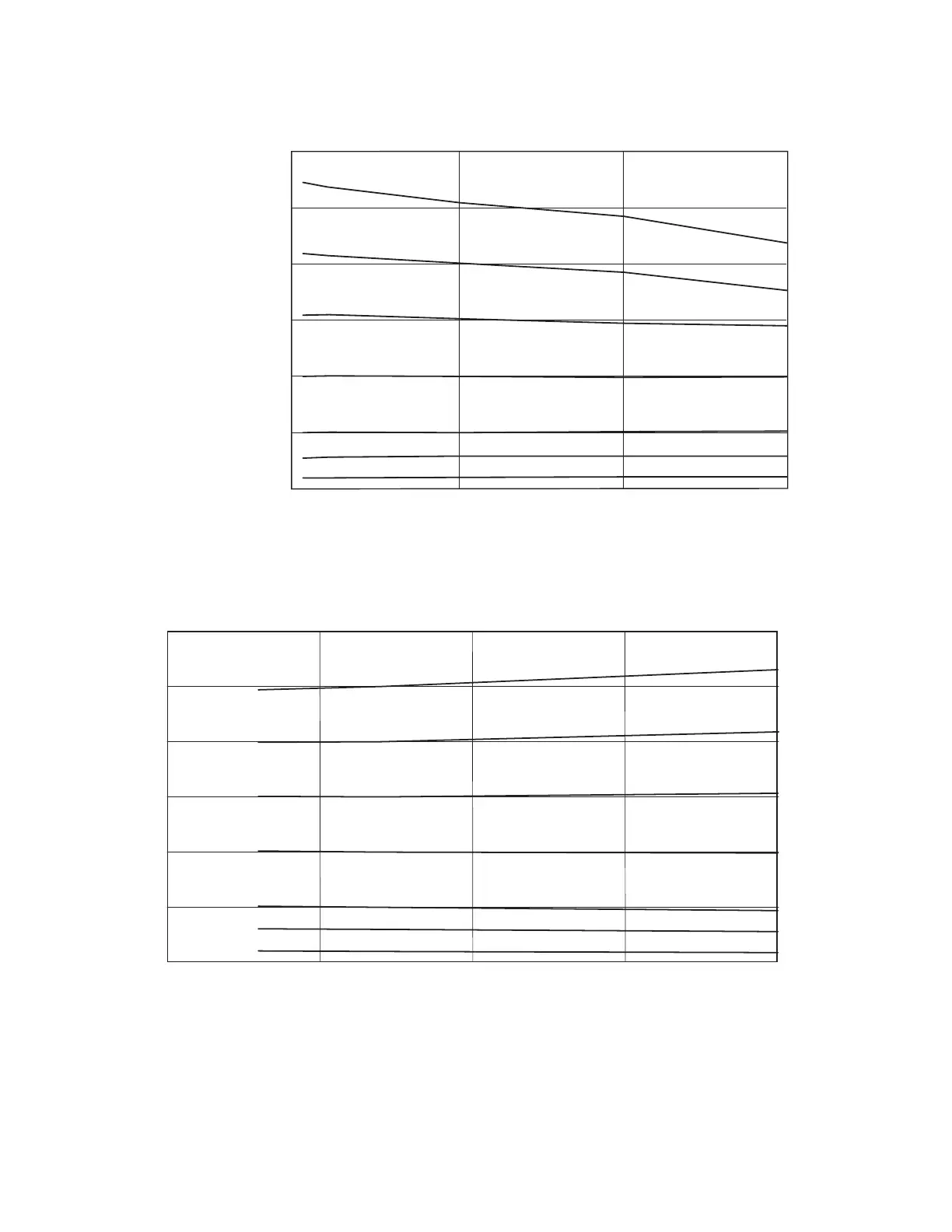

Figure 7-5 • Effect of Flowrate at 21 ± 2° C with oxygen flowing
Figure 7-6 • Effect of temperature at 5 liters/minute with oxygen flow
AB800031
1
2
3
4
5
0.2 1 5 10
5
4
3
2
1
0.6
0.2
15
0
% SEVOFLURANE
DIAL SETTING
Flowrate (liters/minute oxygen)
AB80032
0
1
2
3
4
5
15 20 25 30
5
4
3
2
1
0.6
0.2
35
% SEVOFLURANE
DIAL SETTING
Temperature °C
