(2) Models with Analogue Timer

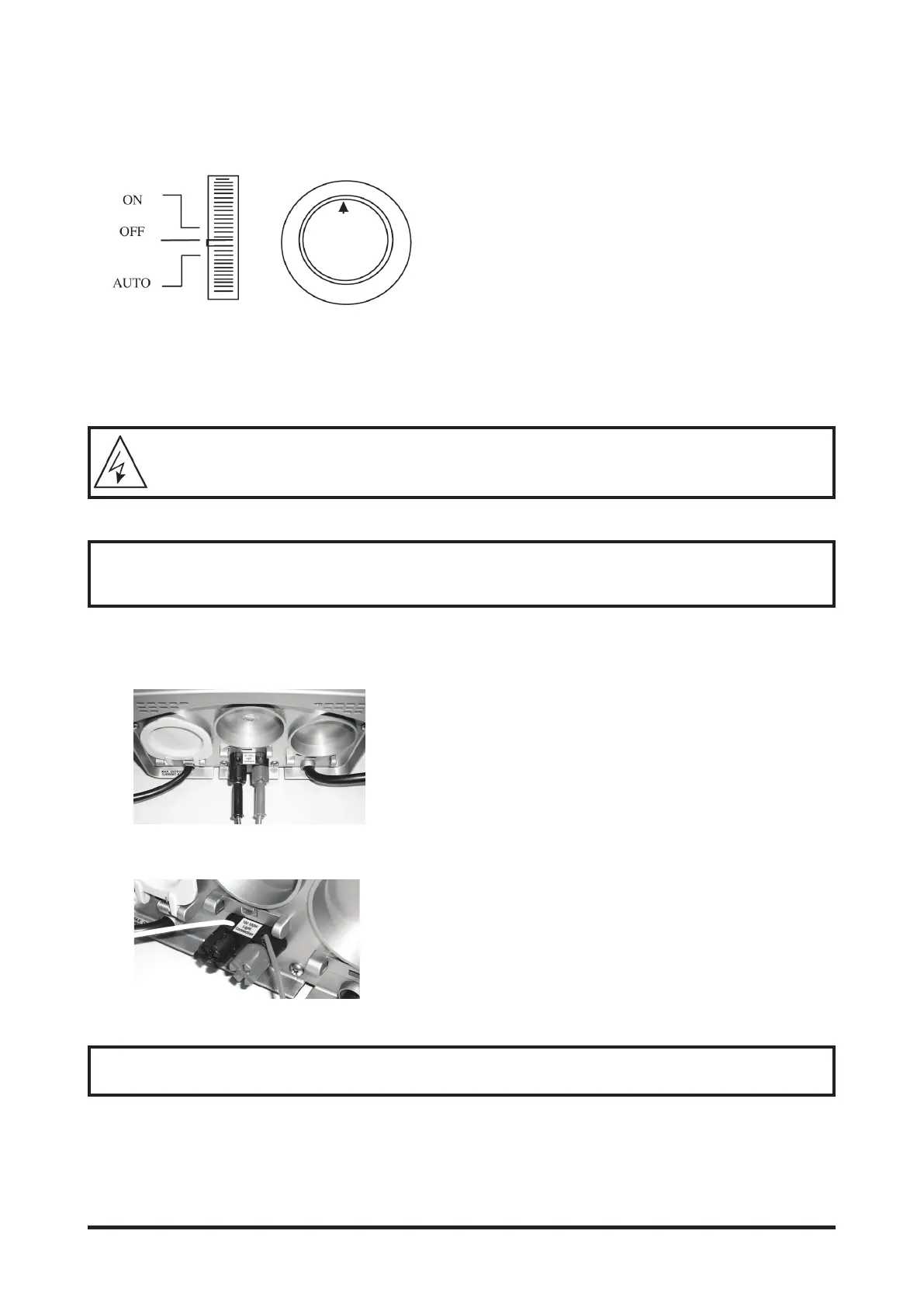

If your Power Supply is tted with an analogue time clock the operating time(s) can be easily set by pushing the
small pins forward or backwards to the desired operating time(s). The unit comes pre-set for 8 hours operation per
day. The ON-OFF-AUTO switch functions as follows:
On - Over-rides automatic time clock, Filtration System switched on.
Off- Over-rides automatic time clock, Filtration System switched off.
Auto- Filtration System switches on and off automatically according to times set.
OPTIONAL POOL LIGHT TRANSFORMER:
Power connections and wiring must be carried out by an authorised electrician.
If your Davey ChloroMatic is tted with a pool light transformer, connect as described below:-
Please Note: Only one light can be connected to each light transformer. (Max power: 150W at 12VAC)
If more than one light is required please refer to your ChloroMatic Davey dealer or the Davey Customer Service
Centre.
BLACK & RED TERMINAL SOCKET IN THE BASE OF THE UNIT
This terminal socket may accept light connection in two ways:
• “Banana” plugs into the bottom of the terminal
• Wires into the terminal holes at right angles, and fastened by screw tting
SAFETY NOTICE
IMPORTANT Certain local electrical regulations state “If the supply cord is damaged, it must be replaced
by a special cord available from the manufacturer or its service agent”.
MAINTENANCE OF POWER SUPPLY:
Little or no maintenance is normally required with the exception of replacing blown Fuses. These Fuses can
be sourced from your local ChloroMatic Dealer. However it is essential that the wall or post to which the Unit is
installed be sprayed (not the Unit itself) periodically with a good surface type insect repellent, since penetration by
insects may cause damage, which is not covered by your warranty.
The back of the Unit has been designed as a heat sink. It is normal for this area to become very hot.
