INSTALLATION INSTRUCTIONS FOR ECOSALT
™
INSTALLING THE POWER SUPPLY:
Select a convenient well-ventilated location within one metre of lter equipment and mount the Power
Supply vertically onto a post or wall 1.5 metres above ground level. Australian Standards requires that the
Power Supply shall not be located within 3 meters of the pool water. Plug Power supply into a suitable
weatherproof outlet and plug pump into the power outlet of the Power Supply Unit. The Unit must be kept
away from acid and other chemical storage areas. Acid and chemical vapours will corrode the electronics
inside the Unit. It must also be kept away from heat sources. Good ventilation is necessary for correct
operation.
Two self-tapping screws and wall plugs have been provided for fast and simple installation. Simply cut out
Template at bottom of page 15 for location of drill entry points. Use a 7mm masonry drill bit when tting
Power Supply to a brick or concrete wall. When mounting to a post drill pilot holes and t screws provided.
Once screws are in position simply hang chlorinator via bracket on back of Unit.

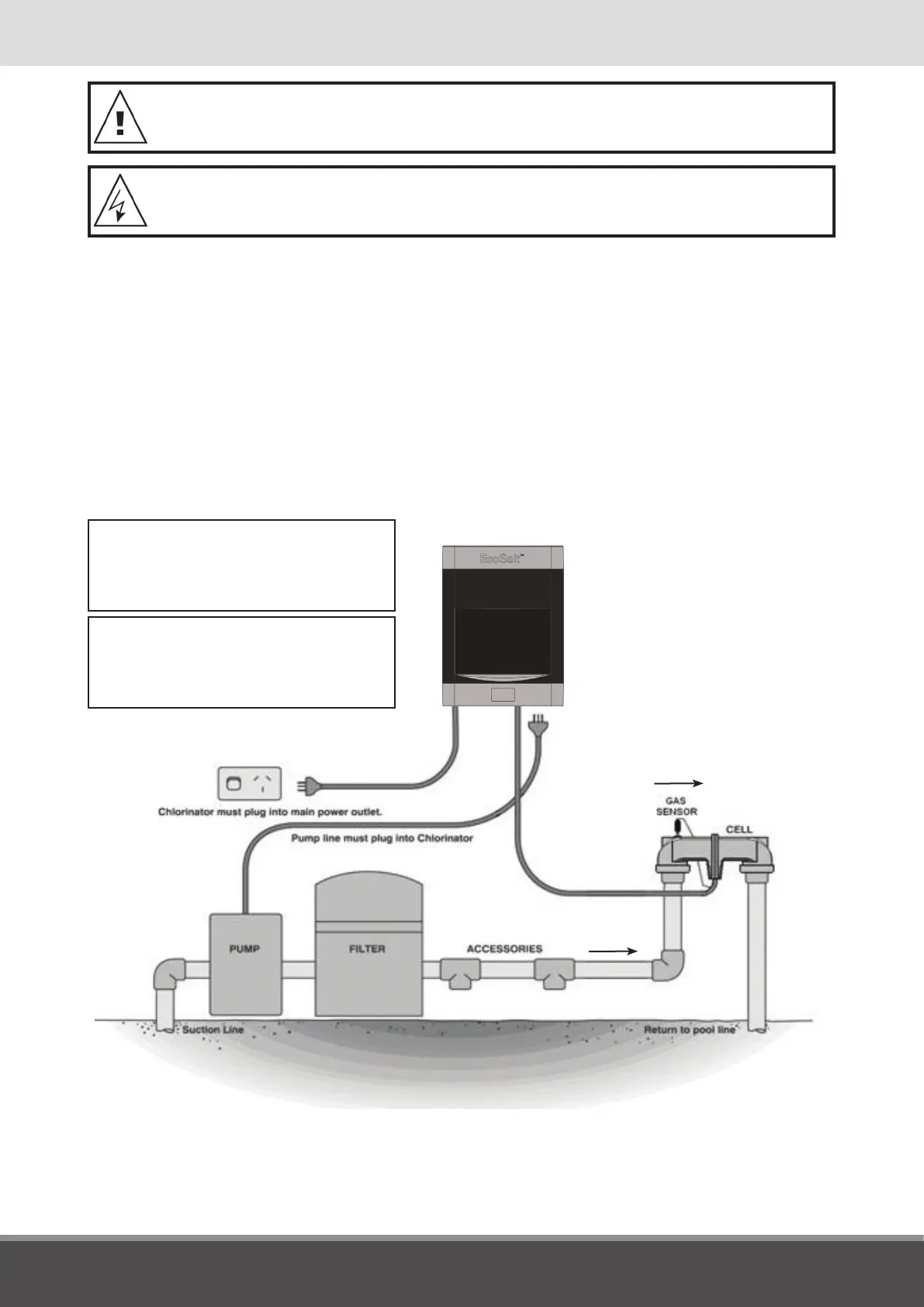

IMPORTANT:
This diagram is intended to conform with
S.P.A.S.A. for the safe operation of saline
chlorinators. Any deviation is at the installers risk
and may void the manufacturers warranty.
NOTE:
The cell must be fitted to allow for easy removal
and cleaning, and positioned after all accesories
such as heater or pool cleaner, but before it divides
if there is more than one return to pool line.
Note: The Chlorinator is not intended for use by young children or inrm persons without
supervision. Please ensure that young children are supervised to ensure that they do not play
with the Chlorinator.
Power connections and wiring must be carried out by an authorised electrician.
FLOW
FLOW
