12.
13.
10

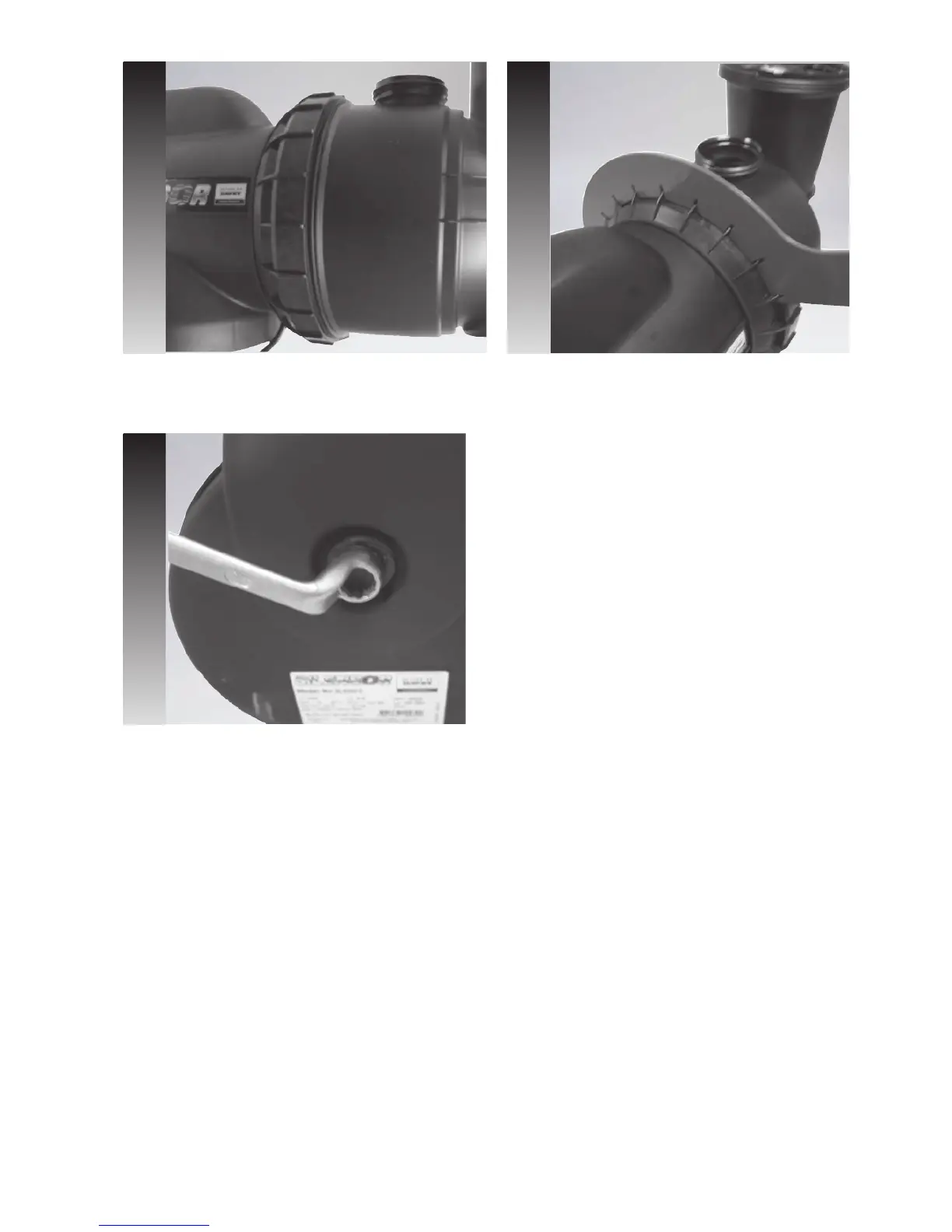

Use the large spanner to tighten the nut. Be aware that
there is a lug on the nut that should not nish at the top
as it can interfere with the barrel union on the SLS model
Tuck all wires into the capacitor cover and then t the rear
cover complete with gasket and tighten the bolt using a
ring spanner (13mm). The pump is now ready for water
testing.
With the pump facing you place the front casing against it
and turn the casing nut anti clockwise to lock it in. There
are two slots in the motor casing that the front casing
locks into.
11.
