Note Wiring
Position
Capacitor Housing

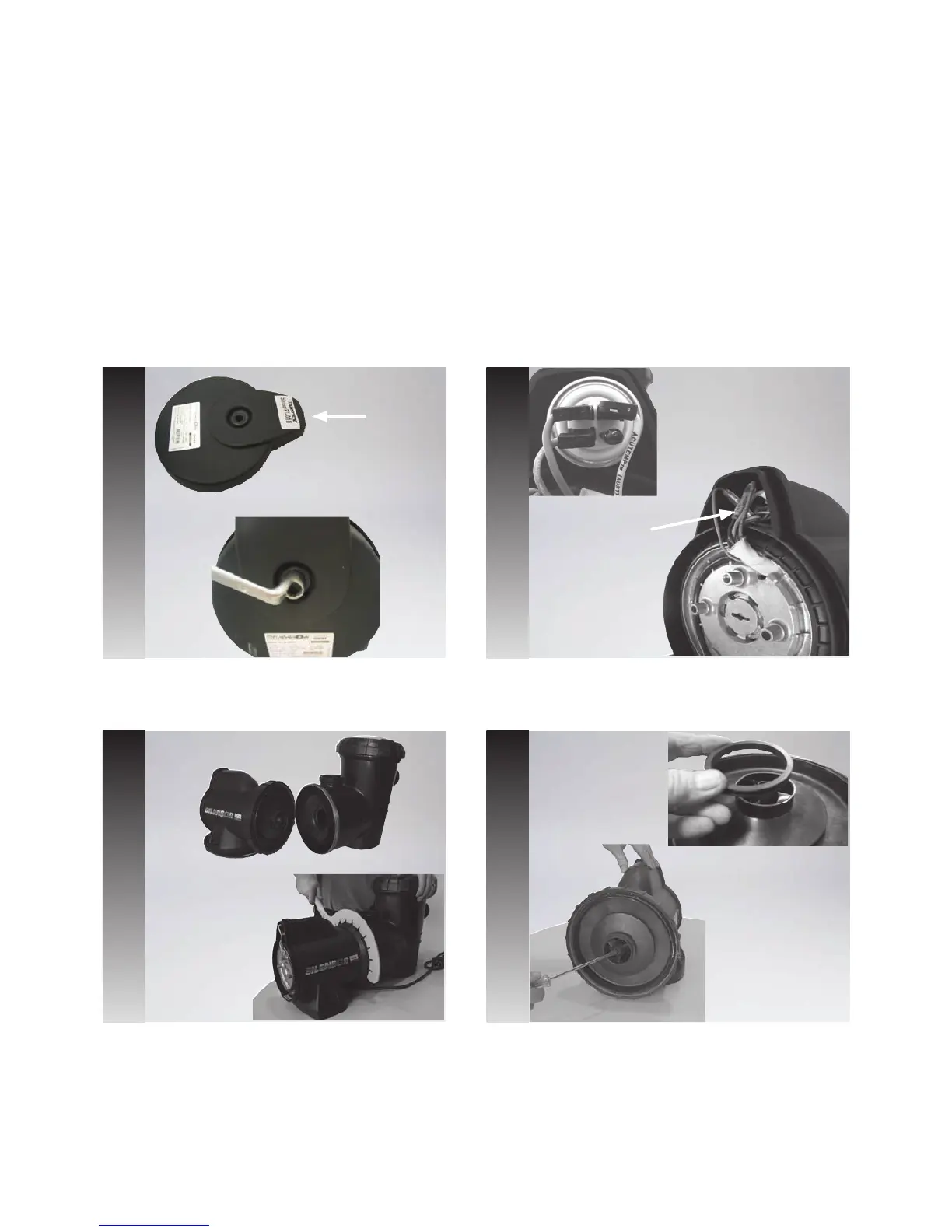

Unscrew the bolt from the rear cover using a ring spanner
(13mm) and remove the cover. Note that it has a gasket
on the inside. Check for damage and replace if necessary.
Remove the capacitor from its housing. Take note of the
connections and then remove from motor.
Warning! Care should be taken when handling capacitors.
Remove the oating neck ring from the impeller and with
a at blade screw driver break the plastic tab blocking the
impeller nut.
1. 2.
4.
Tap the pump foot towards the rear with a soft head
mallet. This makes it easier to unscrew the locking nut
using the large Silensor spanner (part 13810SP). If the
spanner is tight hit the spanner with a sharp tap of the
mallet to free up the nut.
3.
4
Disassembly
Procedure
Disassembly
Procedure
Rear Cover
