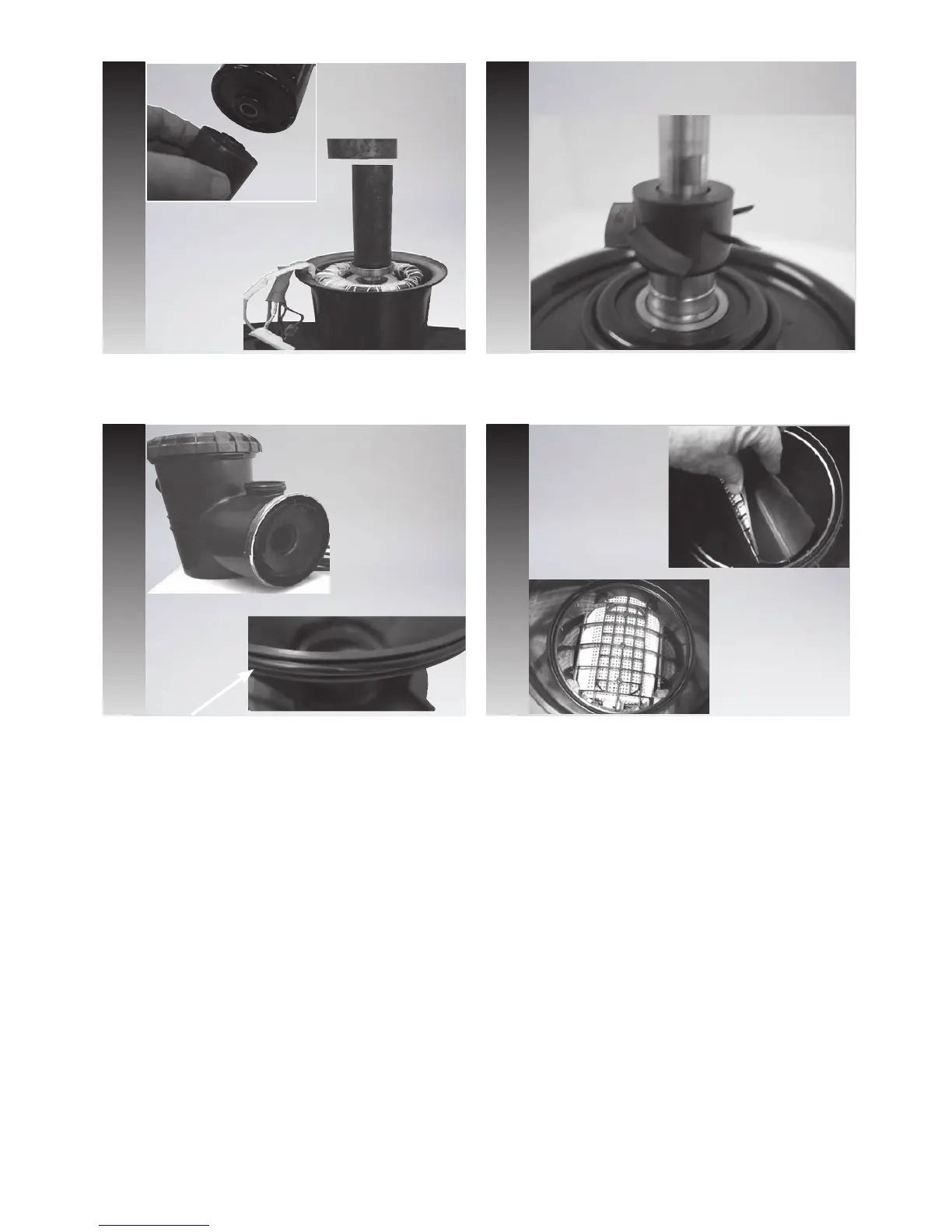

Remove the stator and shell and turn upside down on the
small bearing tool then place back under the press. Insert
the rotor being careful of the windings and then press it
into the bearing with the press.
17.
Replace the front sealing ring, O-ring, and slinger. The
motor is now ready for reassembly.
The diffuser should be inside the front casing simply pull it
out and check for distortion and also check the O-ring that
is on the inside.
18.
19.
Note: The SLS front casing has a removable rubber ap
valve, the SLL has not.
