7. ORDER OF ASSEMBLY FOR DIFFUSERS AND IMPELLERS
1. See drawing 5-A for assembling order of VM1, 3.
Symbol information

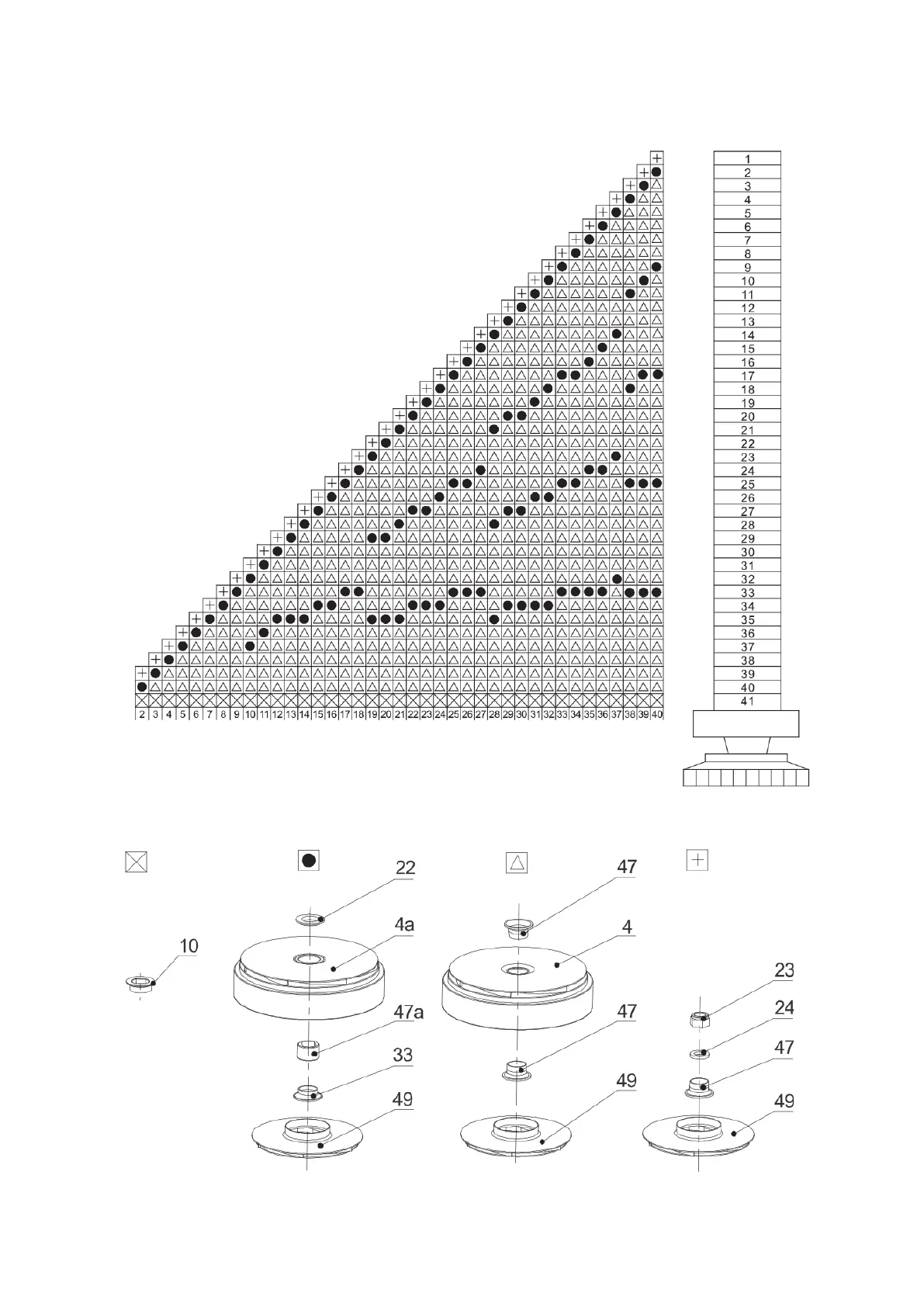

Drawing 5-A VM1, 3 assembling order.
