Page 2 Solar Radiation Sensor
M
OUNTING
H
ARDWARE
Please make sure you have all components listed below before continuing.
✦
Shield
✦
Body with cable attached
✦

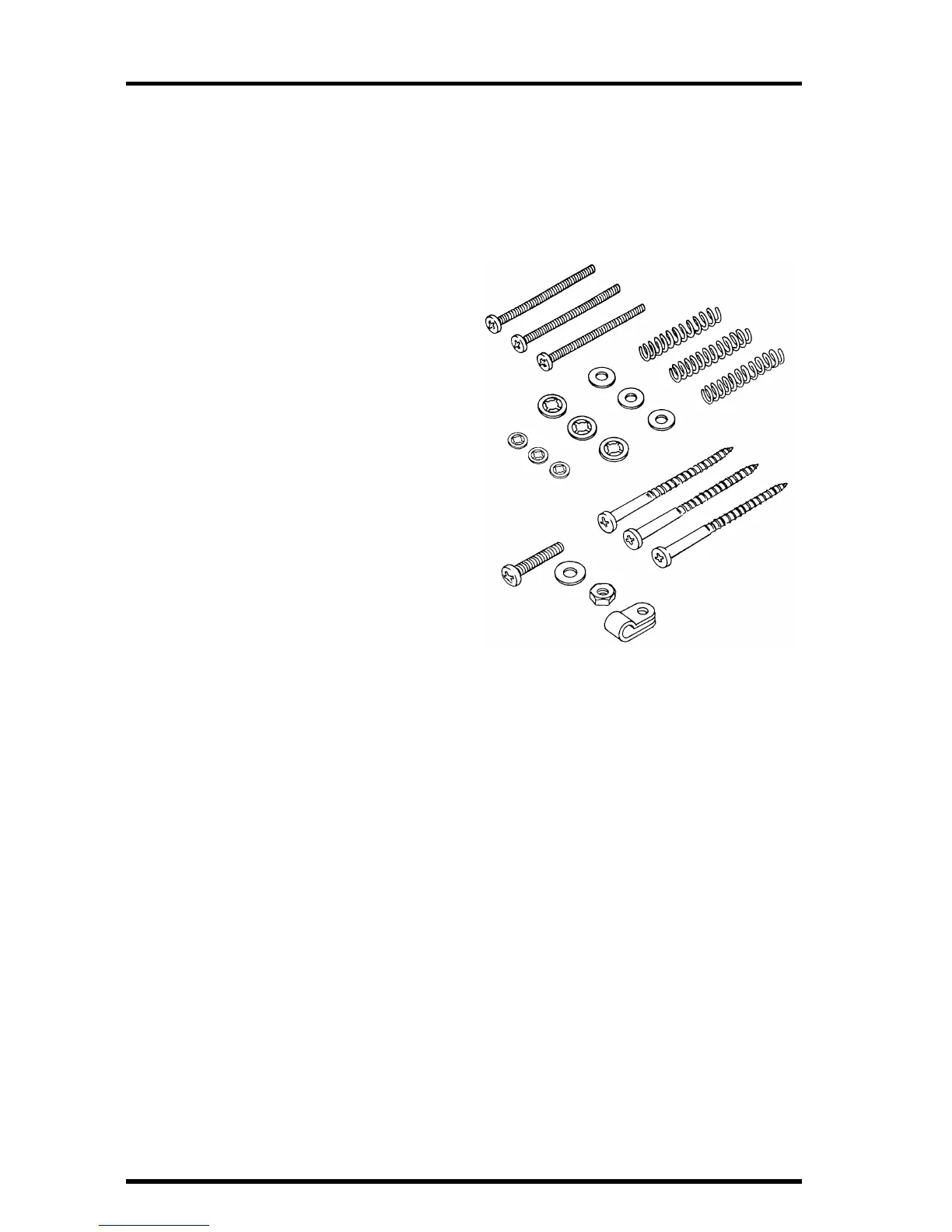

Mounting hardware
Enables installation and
leveling of the sensor.
✦
Three #6-32 x 1-1/2"
(38 mm) machine screws
✦
Three springs
✦
Three #6 flat washers
✦
Three #6 screw retainers
✦
Three #4 screw retainers
✦
Three wood screws
✦
One #8-32 x 3/4" (19 mm)
machine screw
✦
One #8-32 hex nut
✦
One #8 flat washer
✦
One 3/16" (5 mm) cable
clamp
T
OOLS
AND
M
ATERIALS
N
EEDED
You may need some of the following tools and materials in order to complete
your installation. Please be sure you have everything you need before beginning.
✦
Medium Phillips screwdriver
✦
Scissors
✦
Center punch or nail (if mounting on wood surface)
✦
Drill with 7/8" (22 mm) and #36 (2.7 mm) drill bits (if mounting on wood surface)
✦
Wire cutters and stripper (industrial version only)
