Standard and Industrial Versions: Installation Page 5
Typical Industrial Installation

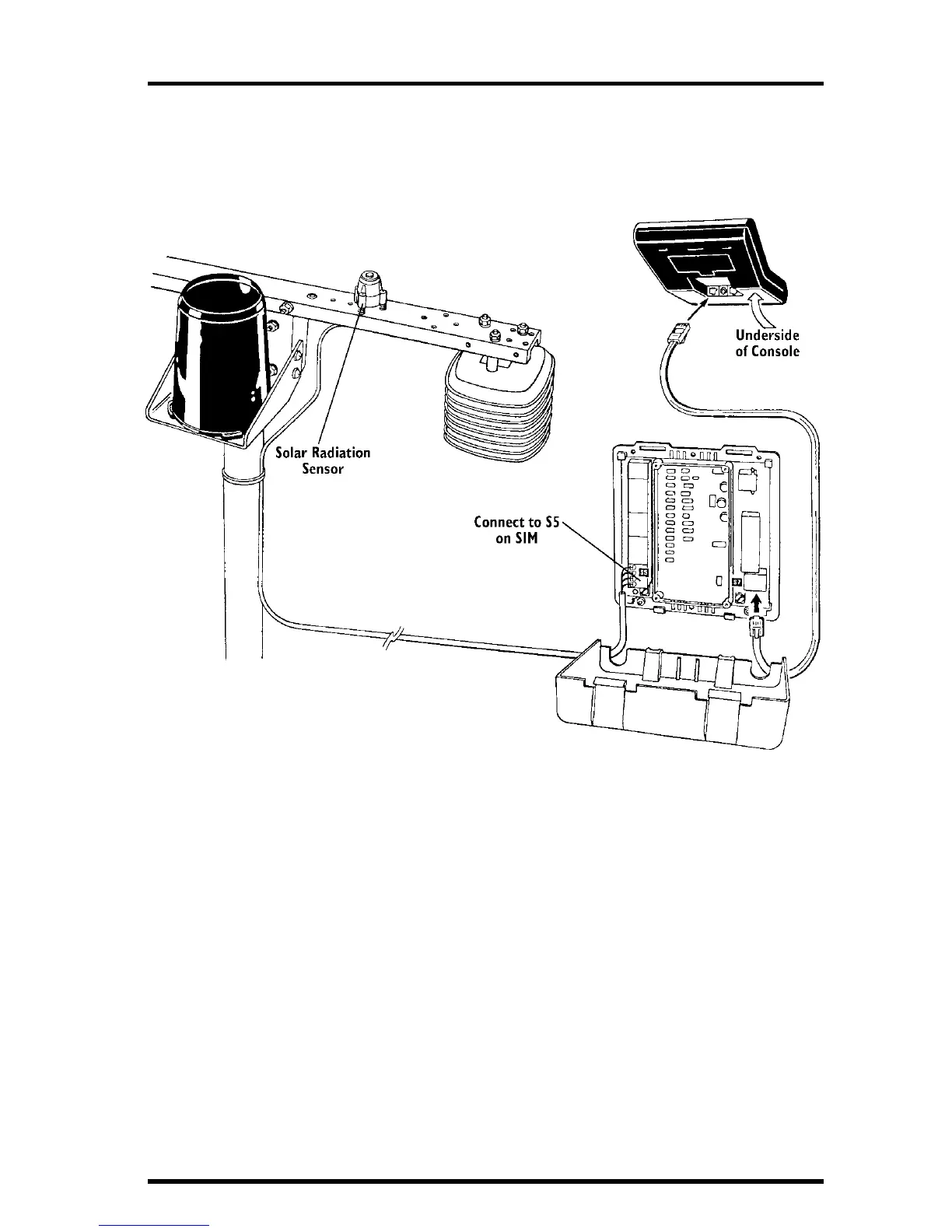

The illustration below shows typical industrial solar radiation installation. The
sensor cable attaches to connector S5 on the sensor interface module (SIM).
T
YPICAL
I
NDUSTRIAL
I
NSTALLATION
