Standard and Industrial Versions: Installation Page 7

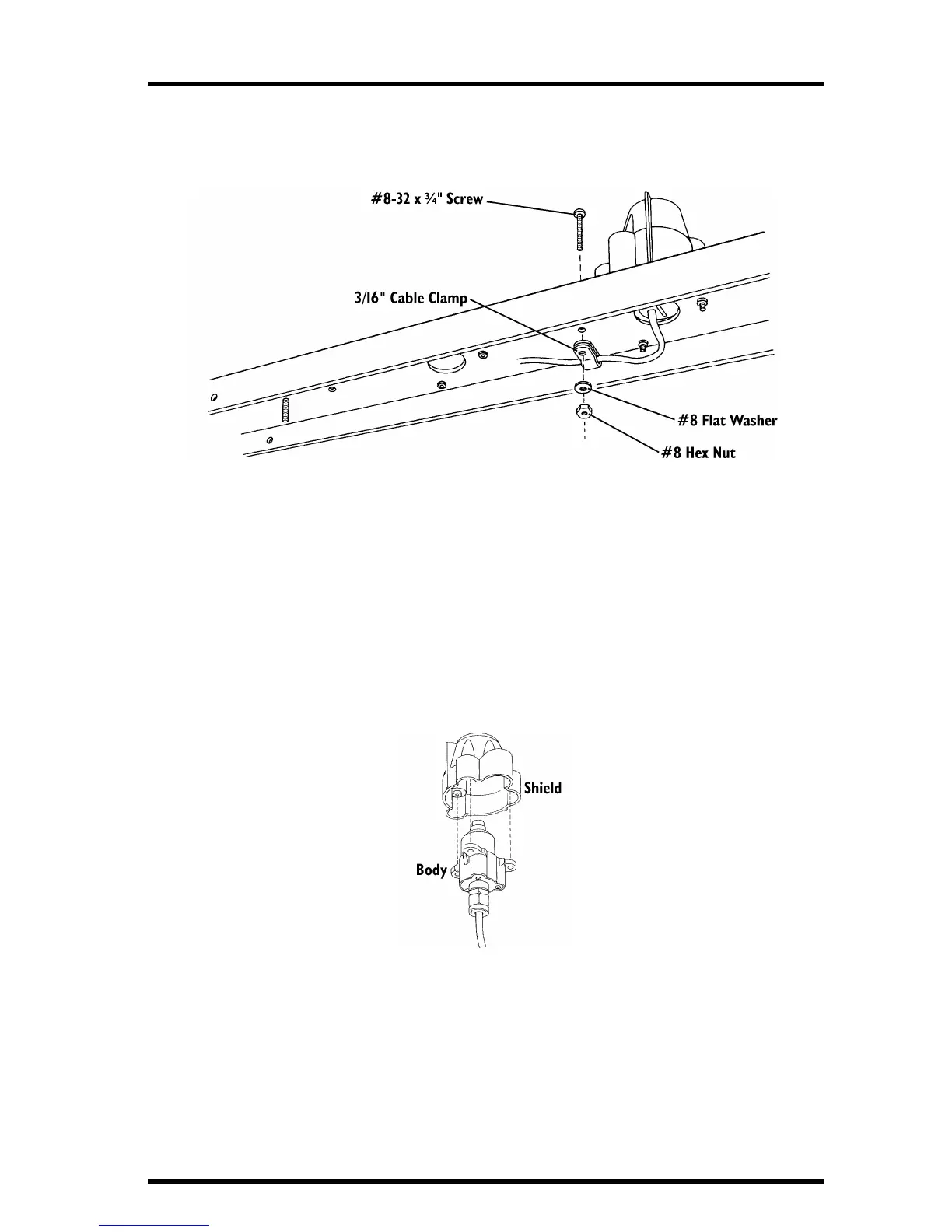

7. Secure the sensor cable to the underside of the mounting arm using the 3/16" cable
clamp, #8-32 x 3/4" screw, #8 hex nut, and #8 flat washer as shown below.
S
ECURING
S
ENSOR
C
ABLE
Mounting the Sensor on the Sensor Tilting Bracket
Follow the instructions below to mount the sensor on the Sensor Tilting
Bracket. Do not install the bracket onto the mounting arm until instructed to do
so below.
1. Route the cable through the large hole in the bracket if desired.
2. Place the shield onto the body as shown below.
P
LACING
S
HIELD
ONTO
B
ODY
