Standard and Industrial Versions: Installation Page 9

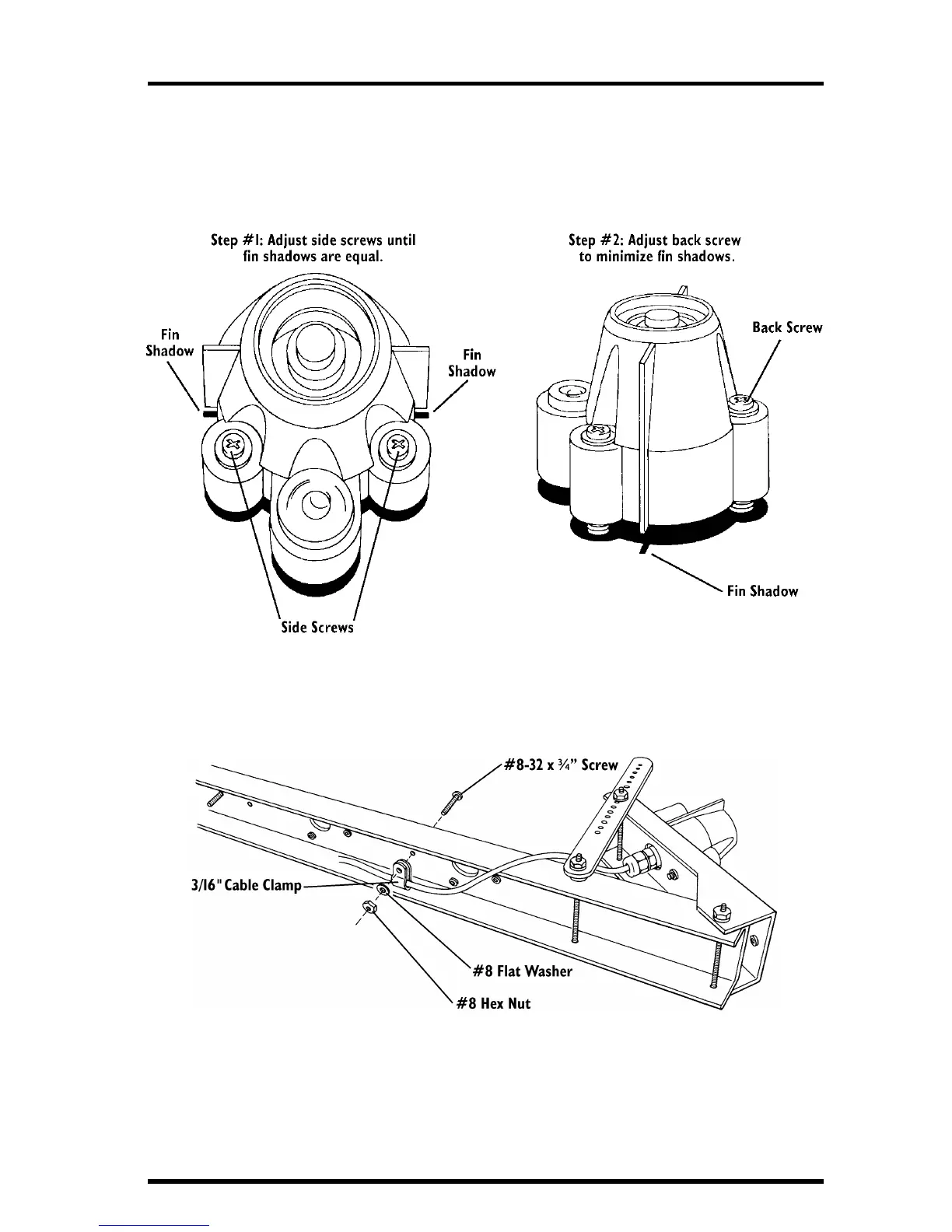

8. If necessary, adjust the position of the sensor by tightening or loosening the levelling

screws.

When pointed directly at the sun, the shadows from the alignment ﬁns

should appear as shown in the illustration below.

INAL

SENSOR

OSITIONING

9. Secure the sensor cable to the underside of the mounting arm using the 3/16" cable

clamp, #8-32 x 3/4" screw, #8 hex nut, and #8 ﬂat washer as shown below.

SECURING SENSOR CABLE
