Standard and Industrial Versions: Installation
Page 5
T
ypical Industrial Installation

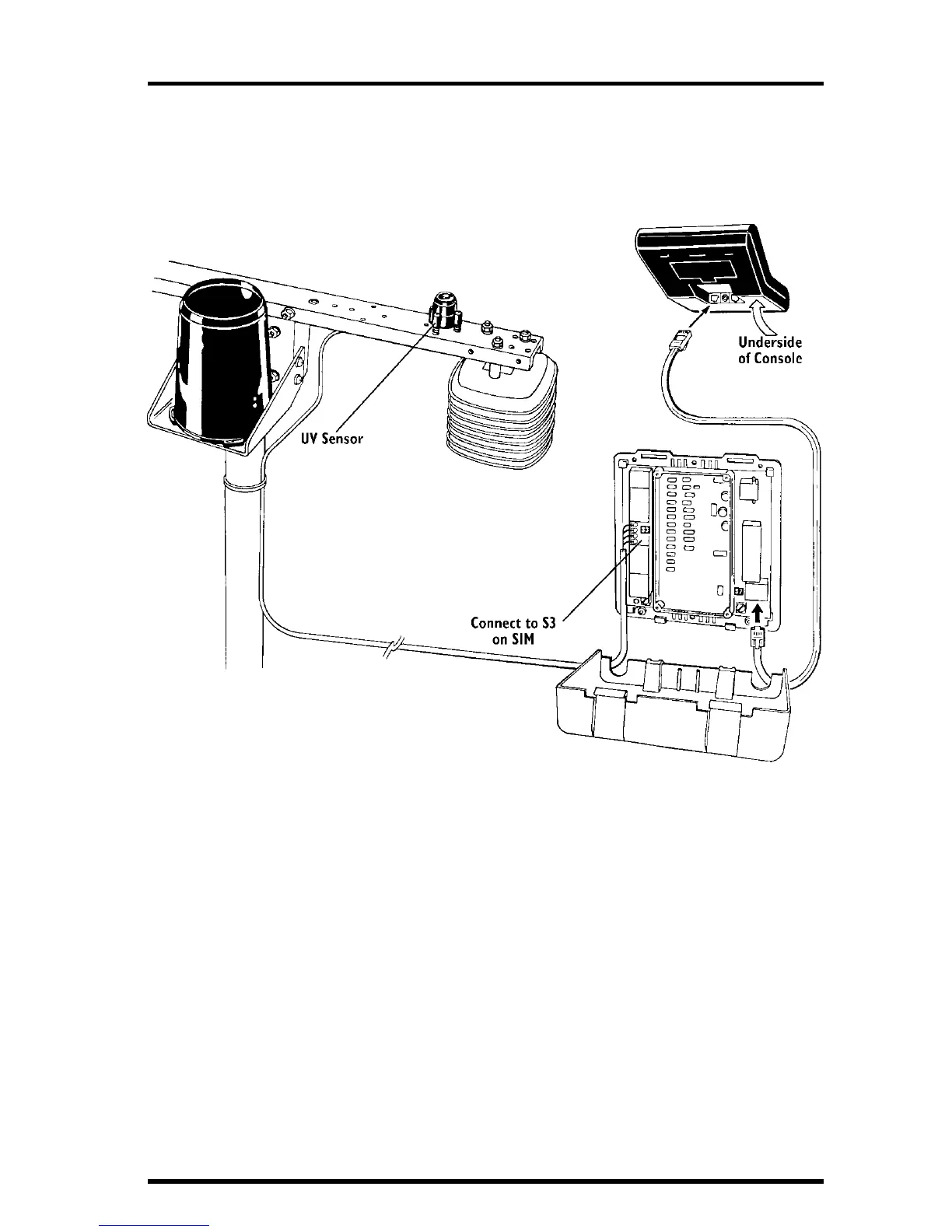

The illustration below shows typical industrial UV installation. The sensor
cable attaches to connector S3 on the sensor interface module (SIM).
T
YPICAL
I
NDUSTRIAL
I
NSTALLATION
4
6
