Standard and Industrial Versions: Installation Page 7
6. Using the bubble level on the sensor as a guide, adjust the sensor until it is level by
tightening or loosening the screws as necessary.

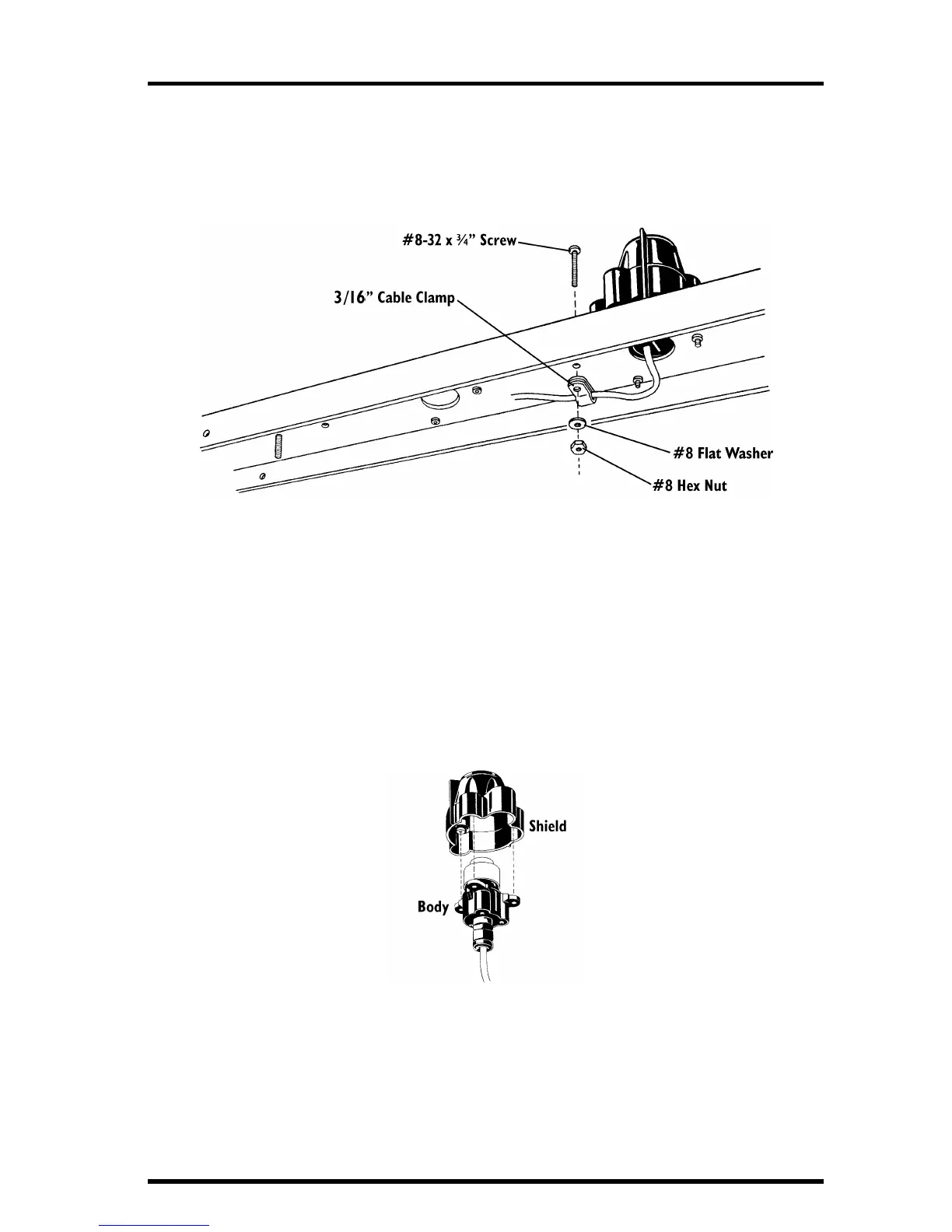

7. Secure the sensor cable to the underside of the mounting arm using the 3/16" cable
clamp, #8-32 x 3/4" screw, #8 hex nut, and #8 flat washer as shown below.
S
ECURING
S
ENSOR
C
ABLE
Mounting on the Sensor Tilting Bracket
Follow the instructions below to mount the sensor on the Sensor Tilting
Bracket. Do not install the bracket onto the mounting arm until instructed to do
so below.
1. Route the sensor cable through the large hole in the bracket if desired.
2. Place the shield onto the body as shown below.
P
LACING
S
HIELD
ONTO
B
ODY
