Standard and Industrial Versions: Installation Page 9
8. If necessary, adjust the position of the sensor by tightening or loosening the levelling
screws.

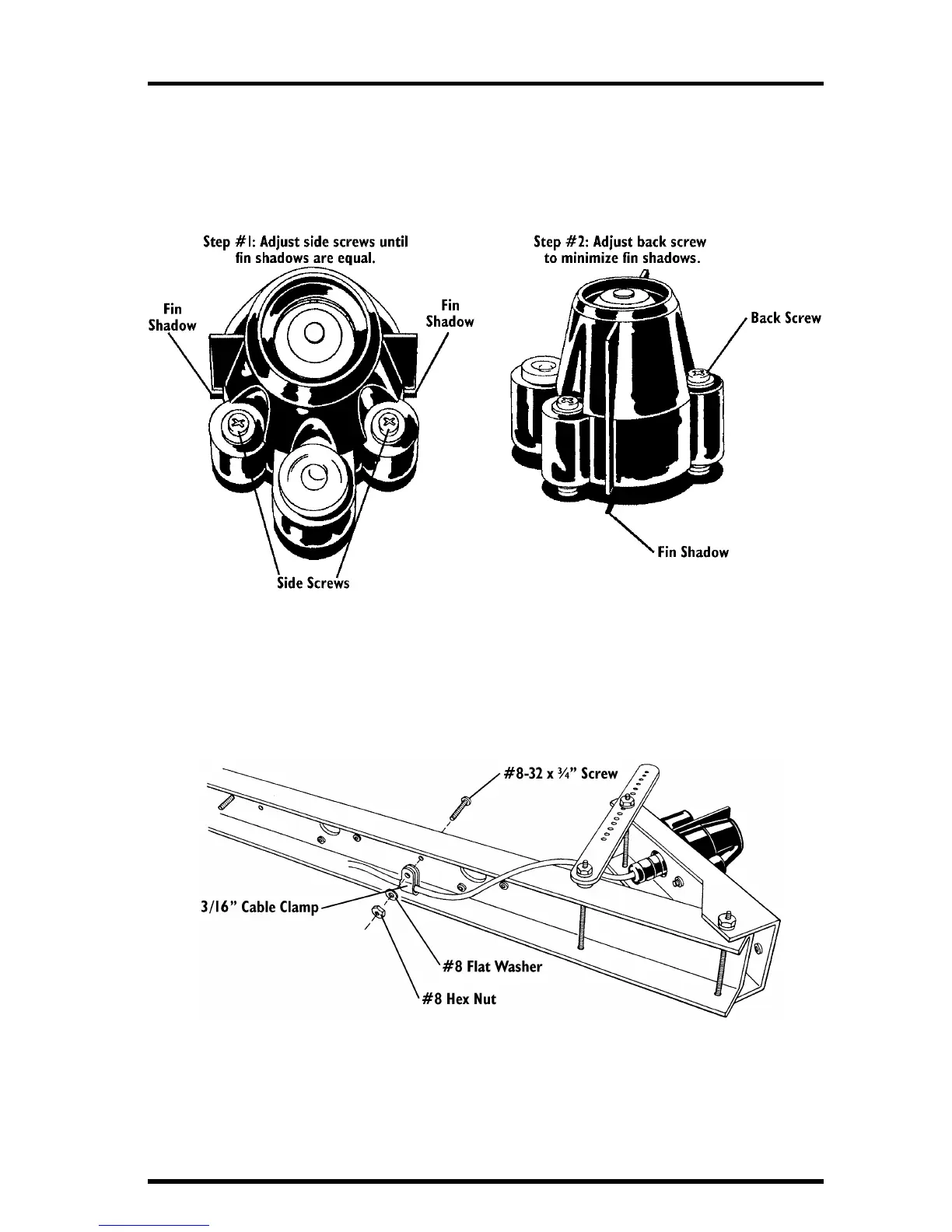

When pointed directly at the sun, the shadows from the alignment fins
should appear as shown in the illustration below.
F
INAL
SENSOR
P
OSITIONING
9. Secure the sensor cable to the underside of the mounting arm using the 3/16" cable
clamp, #8-32 x 3/4" screw, #8 hex nut, and #8 flat washer as shown below.
S
ECURING
S
ENSOR
C
ABLE
