DAVIS Vantage Pro2 Getting Started Guide

Remote Modem Connection Notes
3
8. Insert the USB - Mini B connector on the USB connector of the USB data
logger. The connection between the console and the computer can be
extended up to 16’ (5 m) using a USB-to-USB connector cable.
9. Check the Baud rate settings on the console.
• Enter the console Setup Mode by pressing and holding DONE key,
then pressing the DOWN arrow (-) key on your console.
• Use DONE and BAR to scroll to the Baud Rate screen. The Baud Rate
setting here on the console must be same as that set in the Weather-
Link software.
• Use the UP (+) and DOWN arrow (-) keys to change the baud rate set-
ting, if needed.
• Press and hold DONE to exit Setup Mode.
• The default setting is 19200 Baud.
Remote Modem Connection Notes
When accessing a remote modem connection, WeatherLink automatically
dials the station and console whenever an action has been performed in the
software that requires it to talk to the station.
While connected to a remote station, an On-Line icon displays in the tool-
bar. This icon indicates that WeatherLink has established a connection with
the remote console and weather station. Select the On-Line icon from the
Vantage Pro Console
Battery Cover
Data
Logger
USB
port
USB-mini B
Cable
Battery Cover
Vantage Vue Console

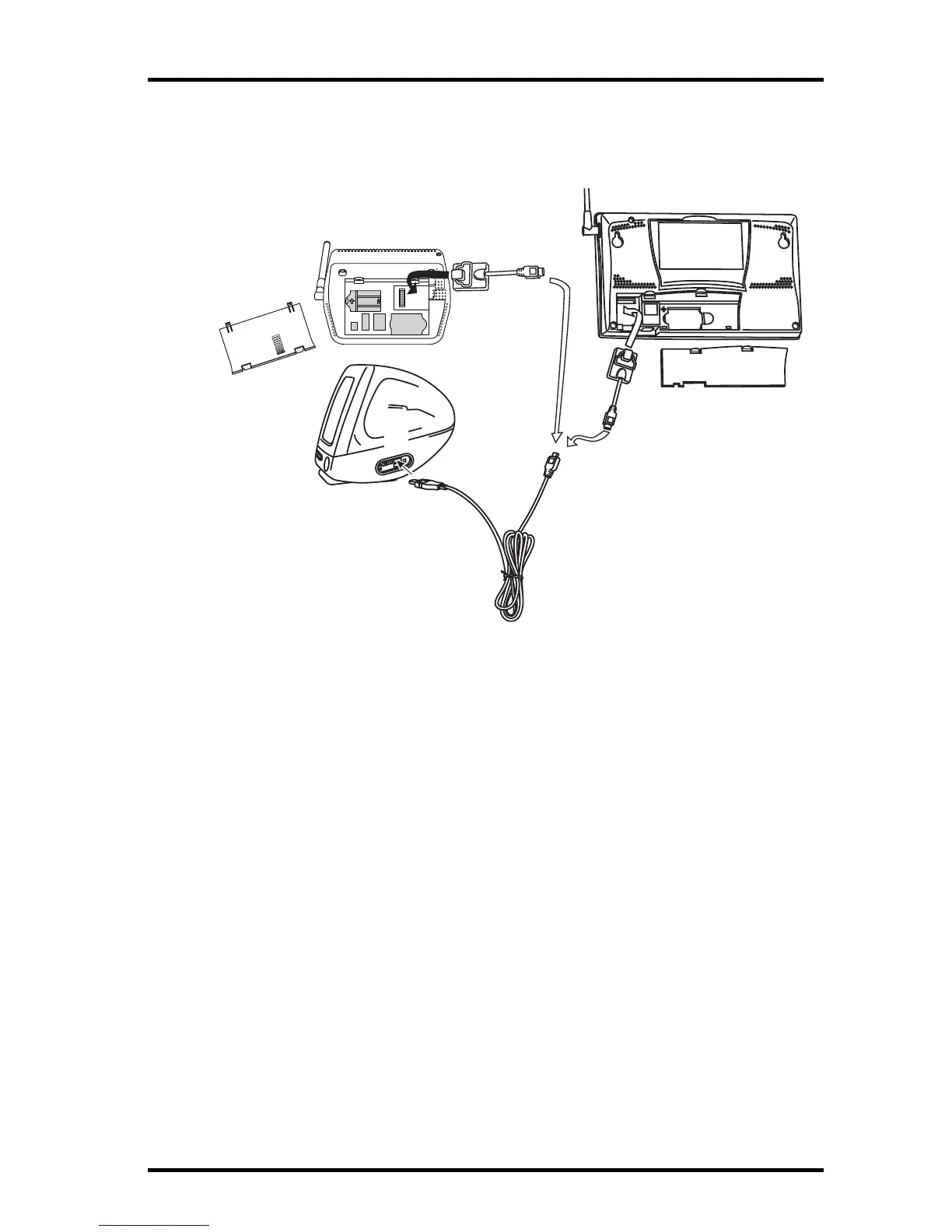

Typical Local Connection for Vantage Pro, Vantage Pro2 and Vantage Vue

DAVIS Vantage Pro2 Specifications

General

Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Barometric Pressure Range	16.00 to 32.50 inHg (540 to 1100 hPa)
Rain Collector Type	Tipping bucket
Wind Speed Range	0 to 200 mph (0 to 322 km/h)
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Wind Direction Resolution	1°
Wind Direction Accuracy	±3°
Solar Radiation Range	0 to 1800 W/m²
Solar Radiation Sensor Accuracy	±5%
UV Index Range	0 to 16
UV Index Accuracy	±5%
Wireless Transmission Range	Up to 1000 ft (300 m)
Temperature Range	-40°F to +150°F (-40°C to +65°C)
Humidity Range	0 to 100%
Humidity Accuracy	±3%
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Measurement Accuracy	±4%
Wind Direction Range	0 to 360°
Power Supply	Solar powered with battery backup
