How to use drainpipe
Water drainage
The drain hose should drain smoothly
1. The height of the drain hose should be less
than 10cm, otherwise the drainage will not be
smooth and would need a long time to drain. The machine
may stop during working.
2. Do not step on or press the drain hose.
4. Purchase a proper hose, if you need an additional one.
Its diameter should not be less than 30mm and length should
not exceed 1.5m.
A B
3. Cut the drain hose, if it is too long. Cut the front end of the
hose slantingly to make drainage smooth.

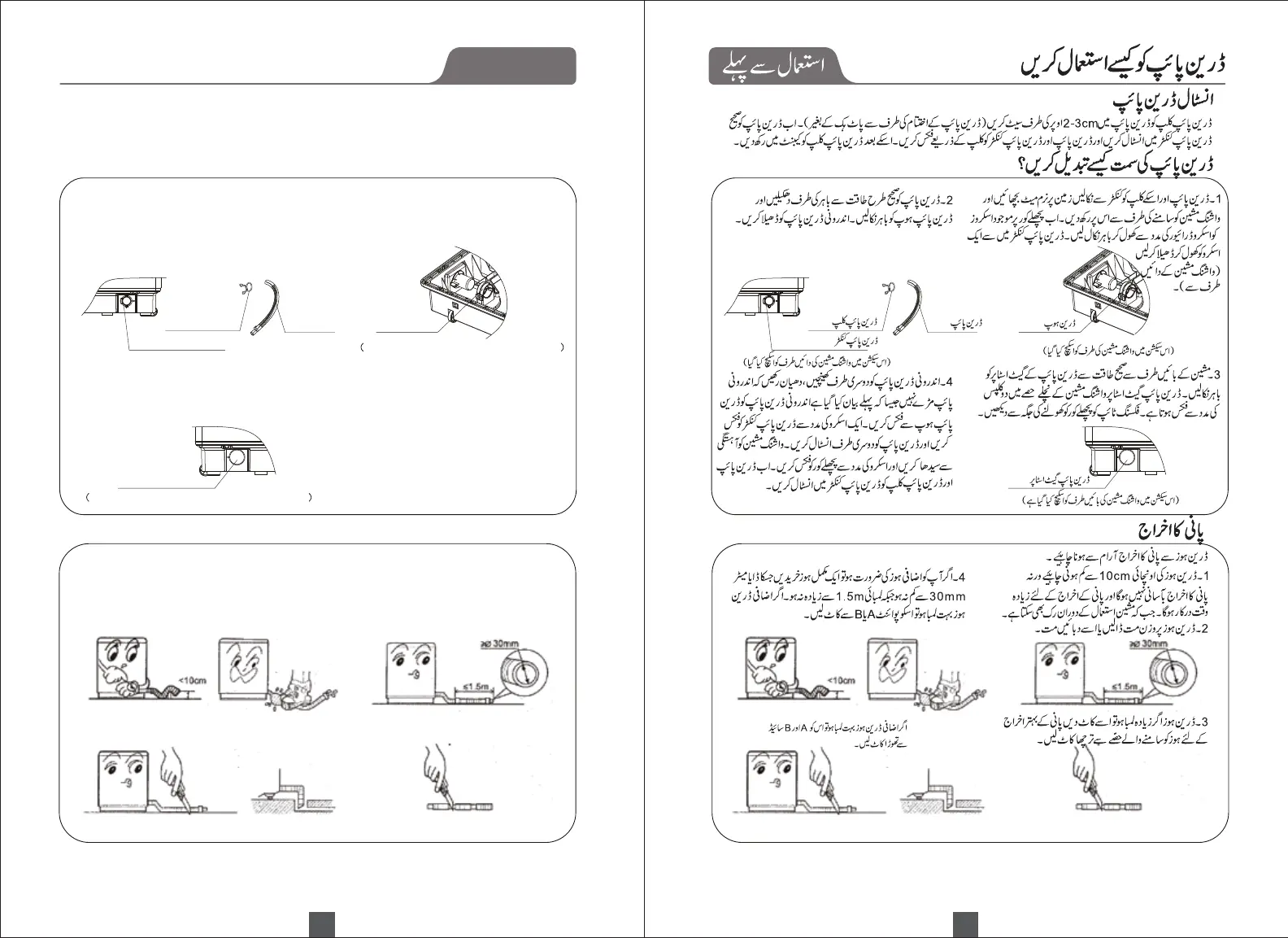

How to change the direction of the drainpipe
1. Take off the drainpipe and its clip from the connector
Put a soft mat on the oor & make the washing machine
front side down. Now, gently
demount the screws on the
back cover with a screwdriver
and take it out. Demount
one screw from the drainpipe connector (on right side of
the washing machine) & loosen it.
3. With proper force, take down the drainpipe gate stopper
the left side of the washing machine. The drainpipe gate
stopper is xed on washing machine base with two
clips. Please see the xing type from the place of
back cover opening.
2. Extrude the drainpipe with proper force
and take out drainpipe hoop (on right of the
washing machine). Loosen the inner
drainpipe.
4. Pull the inner drainpipe to another side.
Please do not make any distortion in the
inner pipe; as per foregoing description,
x inner drainpipe with a drainpipe hoop.
With one screw x drainpipe connector
and install the drainpipe gate stopper to
another side. Make the washing machine
stand gently and x the back cover with
a screw. Now, install the drainpipe and
drainpipe clip into the drainpipe connector.
Install drainpipe
Set drainpipe clip into the drainpipe to above 2-3cm (from the drainpipe end without pothook).
Now, install the drainpipe into the right drainpipe connector and x the drainpipe
and drainpipe connector with the clip. After that, put the drainpipe clip on the cabinet.
Drainpipe hoop
Drainpipe gate stopper
Drainpipe connector
Drainpipe
Drainpipe clip
(Section sketch map for washing machine right side)
Section sketch map inside washing machine
Section sketch map for washing machine left side
Before using
,
If the additional drain hose is too long,
cut some at A or B point.
A B
