Dawlance DWT 9060 EZ - Water Inlet Installation

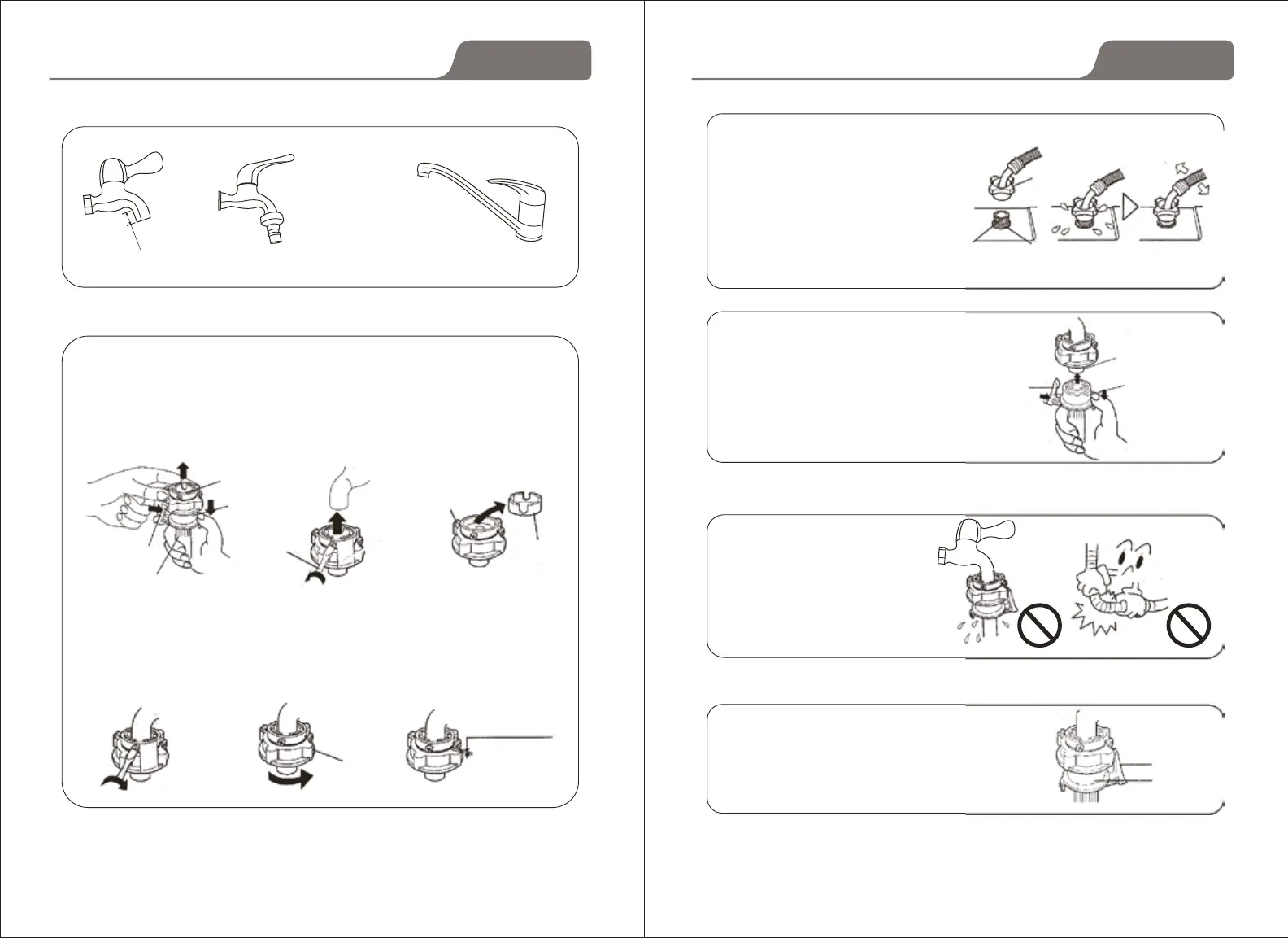

Water inlet installation Water inlet installation
>10mm
Lock lever
Inlet hose
Inlet hose connector
Slider
Screwdriver
Bolt
Bushing
Before twisting, about 4mm
After twisting, less than 2mm
Nut
Illustration 1
Illustration 2
Illustration 3
Illustration 6
Illustration 5
Illustration 4
Tap selection
Suitable tap
Unsuitable tap
The front end should be longer than 10mm.
The tap exit end face should be at and smooth, if not, le it to avoid leakage.
Connect the inlet hose connector with the tap
1. Press the lower end of the lock lever and push down the slider. Take off the inlet hose
connector from the inlet hose, see illustration 1.
2. Loosen the four bolts on the inlet hose connector till the tap can be accessed. Then
set the inlet hose connector to the tap, see illustration 2. (If the tap caliber is too large and
could not t the inlet hose end, unscrew the four bolts and take out the bushing. The tap exit
end must be at, otherwise it will leak, see illustration 3).
3. Fasten the four bolts in the inlet hose connector evenly, see illustration 4.
4. Twist the fastening nut as in the illustration, see illustration 5.
Remark: Before twisting the nut, the threading should be about 4mm above the upper surface of the nut. After
twisting, the threading becomes less than 2mm
above the upper surface of the nut, see illustration 6.
Connect the inlet hose connector with the inlet hose
Check the connection between inlet hose
connector and the tap
Inlet valve connector
Inlet hose nut
Water absorption cushion
Lock lever
Inlet hose connector
Slider
1. Push down the slider and insert the inlet hose into the connector.
2. Hang the lock lever to the inlet hose connector and release
the slider till a click sound is heard.
1. Swing the inlet hose gently to conrm if it is fastened.
2. After installation, open the tap and check if it leaks.
3. Do not bend the inlet hose with overstrain.
4. Before each usage, check the connection between
inlet hose connector and the tap. Also, make sure that the
inlet hose is installed properly. Conrm that they are rmly
tted to prevent dropping from improper installation position.
Slider
Lock lever
Connect the inlet hose with the washing machine
1. Do not take off the water absorption cushion. Please
check if the cushion is dropped or damaged before
each use; if it is, contact the seller immediately.
2. Put the inlet hose nut on the inlet valve connector.
3. Fasten the inlet hose nut and swing it gently to make
sure if it is suitable.
1. Close the tap.
2. Press the locking lever, push down the slider, and pull off the
inlet hose. If the machine is used frequently, the connector
of the inlet hose can be kept on the tap to prevent damage to
the xing screw.
Dismantle the inlet hose
Cautions: When installing the washing machine, please use the new hose along with the washing
machine. Old hose cannot be reused.
