Strider MD 4 Plus Repairs - mechanics

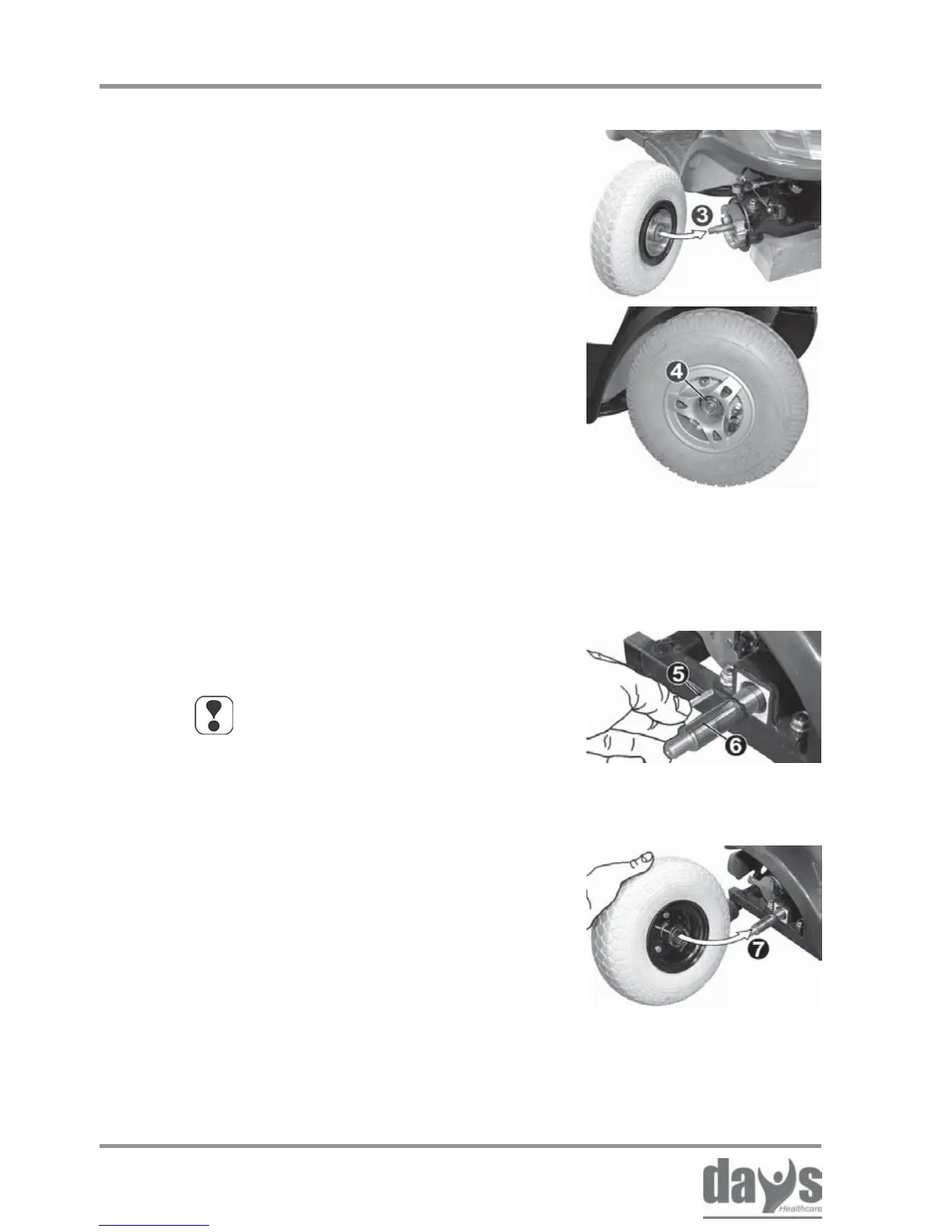

Push the wheel onto the stem (3) as far
as the wheel stop.
➨
Fitting the front wheel: Fitting the front wheel
Screw the wheel fixing self-locking nut
(4) and tighten it (size 19 mm).
Lower the Strider.
Retighten the self-locking nut.
➨
➨
➨
Place the key (5) in the slot in the drive
shaft (6).
➨
Fitting the rear wheel:
NOTE
The key is rectangular. Place
it with its widest side in the
axle slot.
Push the wheel onto the stem and align
the wheel hub groove (7) with the key in
the drive shaft.
Push the wheel on as far as the drive
shaft stop.
➨
➨
Fitting the rear wheel
Locating the axle key
Press the protective cap onto the
wheel fixing nut.
➨
