Days MD 4 Plus - After Transport - Reassembly; Engaging the Drive Unit to the Chassis

56
Issued: 28.02.2005
Strider MD 4 Plus
Working step summary:
NOTE
• All cable connection plugs can only be reconnected in one
position (anti-rotation protection).
• When re-connecting the plugs, ensure that the locking device
engages correctly.
Connecting the chassis

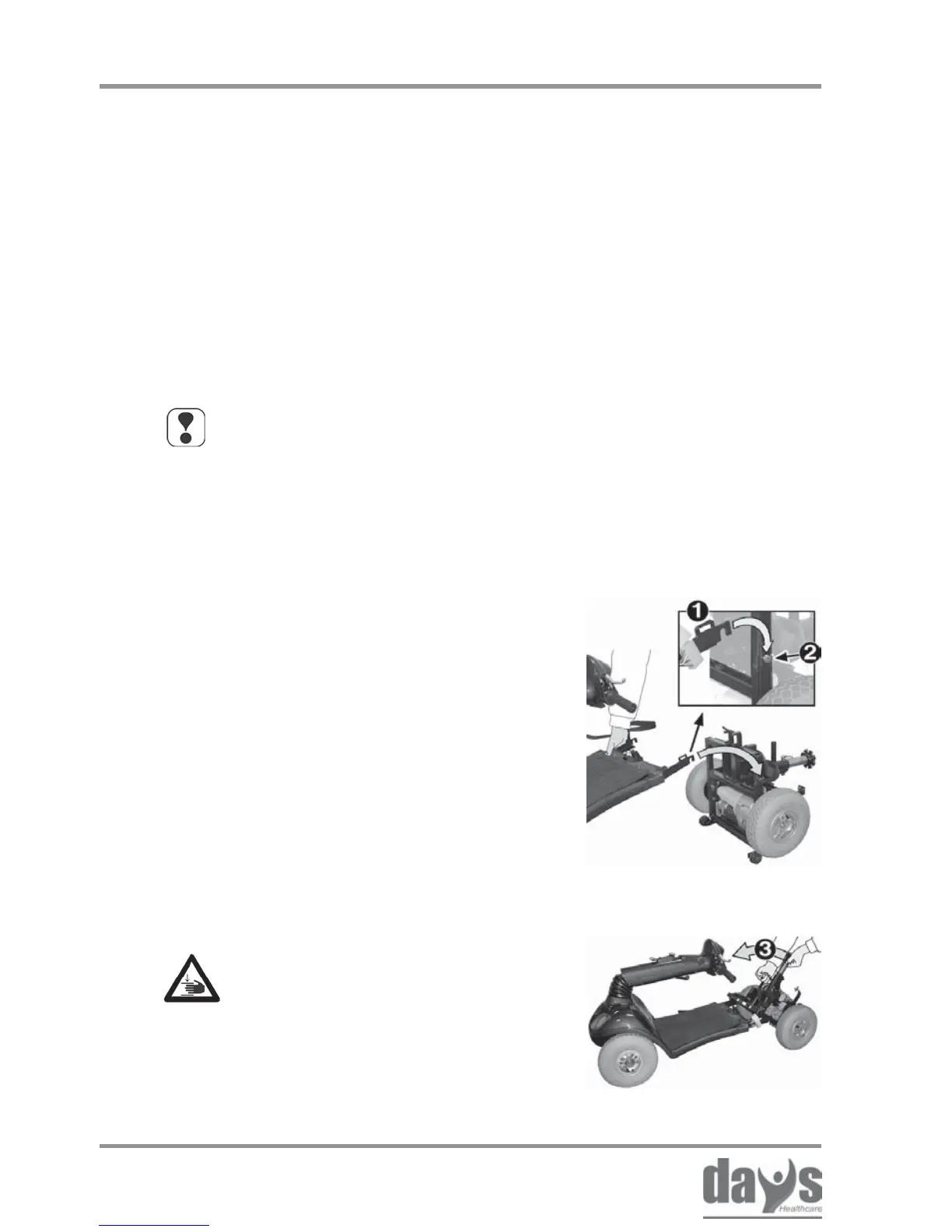

Locate the frames (1) over the drive unit
holding bolts (2).
➨
Fold the drive unit forwards (3).➨ Folding the drive unit in
Transporting the Strider
13.4 After Transport - Reassembly
13.4.1 Engaging the drive unit to the chassis
Clamping and crushing
hazard!
Pay particular attention to hazards
caused by trapping and crushing
while carrying out this work.
Re-couple the drive unit.
Fold the tiller up again.
Insert the batteries and secure with the straps.
Fit the rear panelling in place.
Fit the seat.
➨
➨
➨
➨
➨
