SIGNAL CONNECTIONS
To make these connections, we recommend high quality RCA cables, which are available
at your local car audio retailer. Run signal wires away from electrical wires to avoid possibil-
ity of induced noise from the car’s electrical system (i.e. popping noises or engine noise).
SPEAKER CONNECTIONS
(PRO2.6K, PRO3.6K)
Make the speaker connections using speaker wire that is at least 16
gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential
for strong bass response. When connecting, make sure that positive (+) from the amplifier
is connected to the positive (+) of the speake
The DB Drive amplifiers are capable of being bridged in a mono configuration. This
r, and the same for negative (-).
(Bridged)
PRO2.6K and PRO3.6K
PRO2.6K and PRO3.6K
4 Ohm Speaker
(2 Ohm Minimum)
4 Ohm Speaker
Connect the RCA output of the head unit to the RCA input terminals of the
amplifier.
Optional line out
connection to additional
amplifiers in the system.

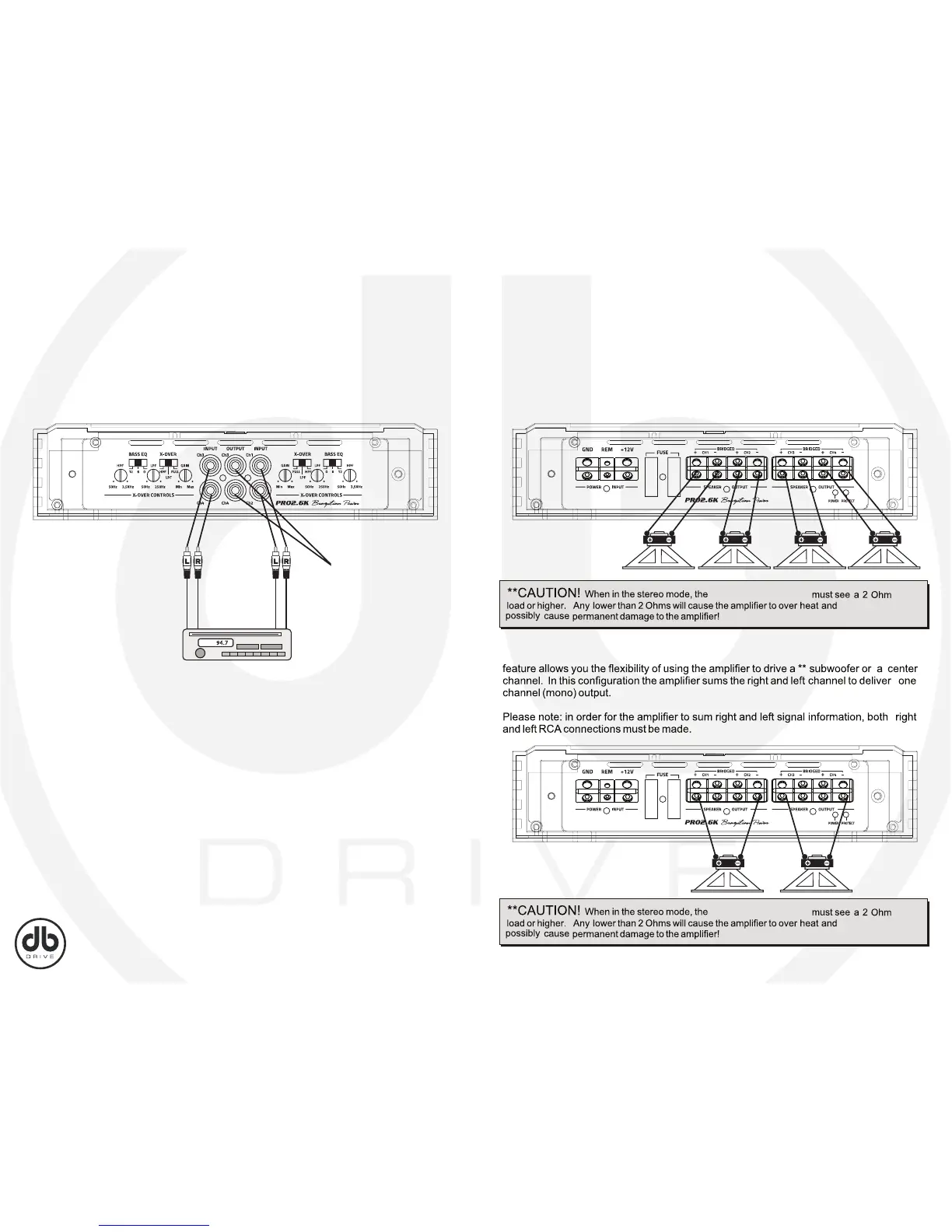

SIGNAL CONNECTION:
Head Unit
4 Channel Amplifier using
2 Pair of RCA Inputs.
