KL SERIES Code 420120347 REV. 1.0
MECHANICAL AND ACOUSTICAL FEATURES

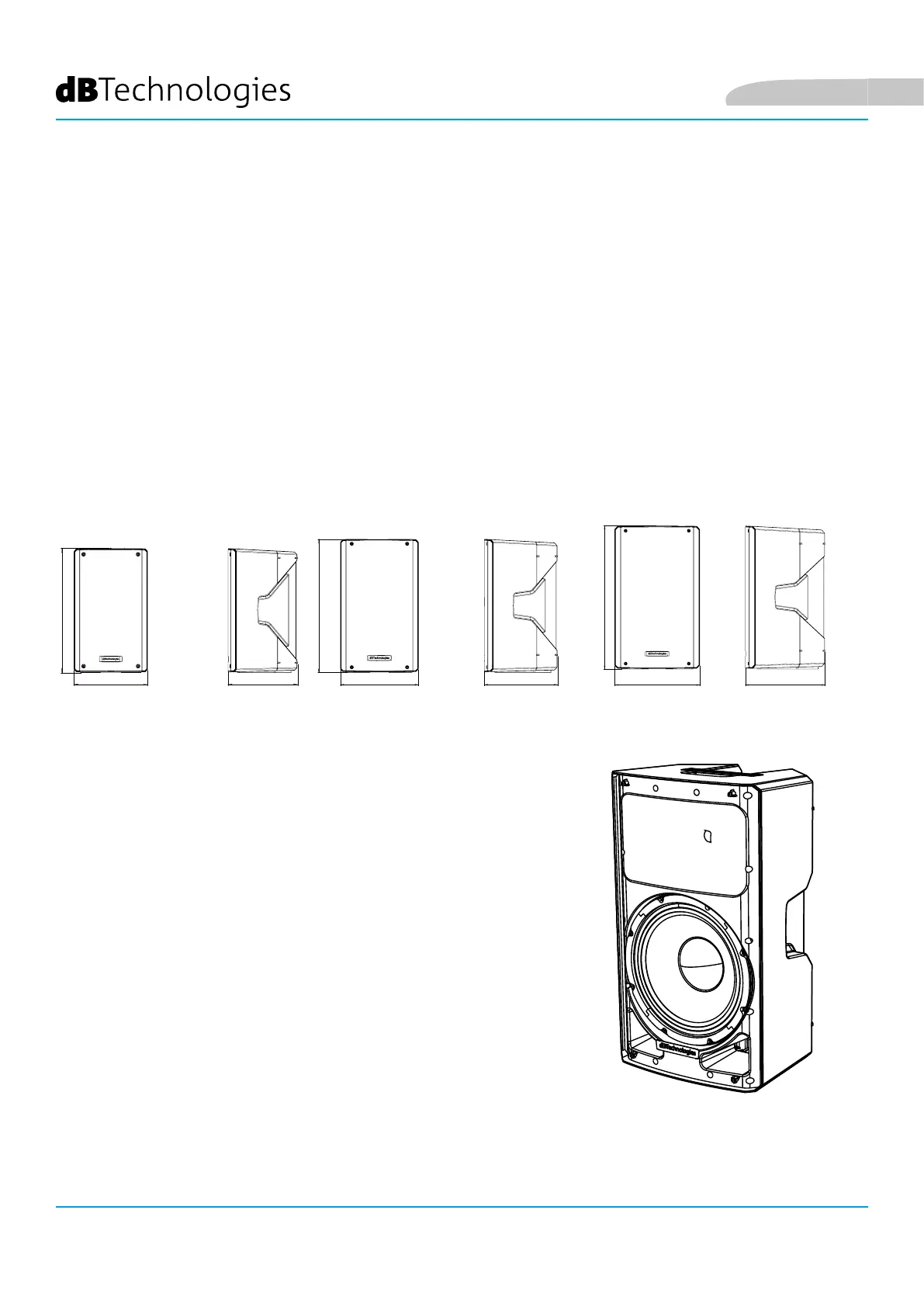

DIMENSIONS
SOUND COVERAGE
The KL series has been designed with the intent to optimise weight and dimensions.
The cabinet is light but resistant, and features 2 handles, one on the side or one at the top, for easy handling.
For a quick comparison of the 3 models, the overall dimensions are the following:
Width: 310 mm (KL10) 365 mm (KL12) 430 mm (KL15)
Height: 521 mm (KL10) 622.5 mm (KL12) 722.5 mm (KL15)
Depth: 292.5 mm (KL10) 342 mm (KL12) 402 mm (KL15)
The special design of the horn, shown in the gure, is
common for all 3 models. With coverage: 90° x 60°.
Take these data into account, for example, when using the
monitoring function.
