KL SERIES Code 420120347 REV. 1.0

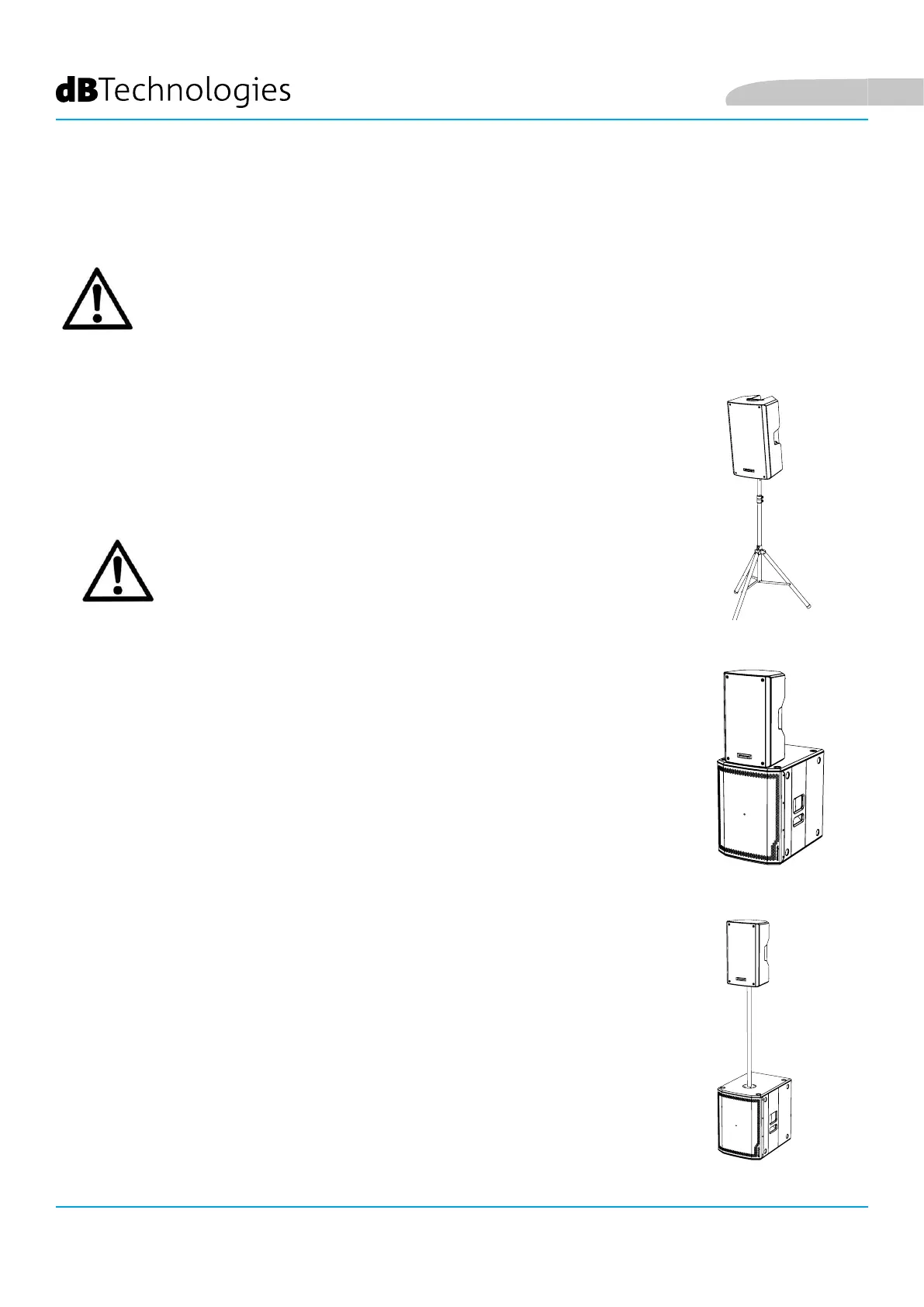

3. USAGE EXAMPLES
• Types of installation other than those here described are not allowed.
• Never use the handles to suspend the speaker
• Always check that the positioning is stable and that the installation does not pose a danger to
people, animals or property.
• Perform the installation on a at, not tilted surface, otherwise an additional safety fastening is
mandatory.
INSTALLATION ON STAND
INSTALLATION ON SUBWOOFER
1 KL speaker can be installed on a tripod stand, coming as standard option
(accessory SSB2) with a 35 mm diameter pole. The maximum allowed height
between the speaker base and the oor is 150 cm for KL10, KL12. KL15.
ATTENTION!
• Use a suitably sized stand with the central leg pointing forward
to provide appropriate stability.
Through the installation with the DS2-S accessory, it is possible to use 1 KL directly
on subwoofer provided with M20 ange. For further information, refer to the
relevant accessory manual.
INSTALLATION ON SUBWOOFER WITH POLE
It is possible to use only one speaker mounted on a 35 mm diameter pole. The
maximum allowed height between the speaker base and the oor is 150 cm for
KL10, KL12, KL15. In case of DVA S08DP or SUB 28D subwoofer, an additional
mechanical fastening or a belt fastening is required to correctly and safely x the
installation.
