dB PM 1000 - Appendix

DB ELETTRONICA TELECOMUNICAZIONI S.p.A.
PM 1000 – 1 kW FM Broadcasting Transmitter - USER’S MANUAL
99 /101
12. APPENDIX
12.1 APPENDIX A - XLR AUDIO CONNECTORS PINOUTS
Connection procedure to connect the audio signal cables to the XLR female connectors for a
balanced or unbalanced signal.

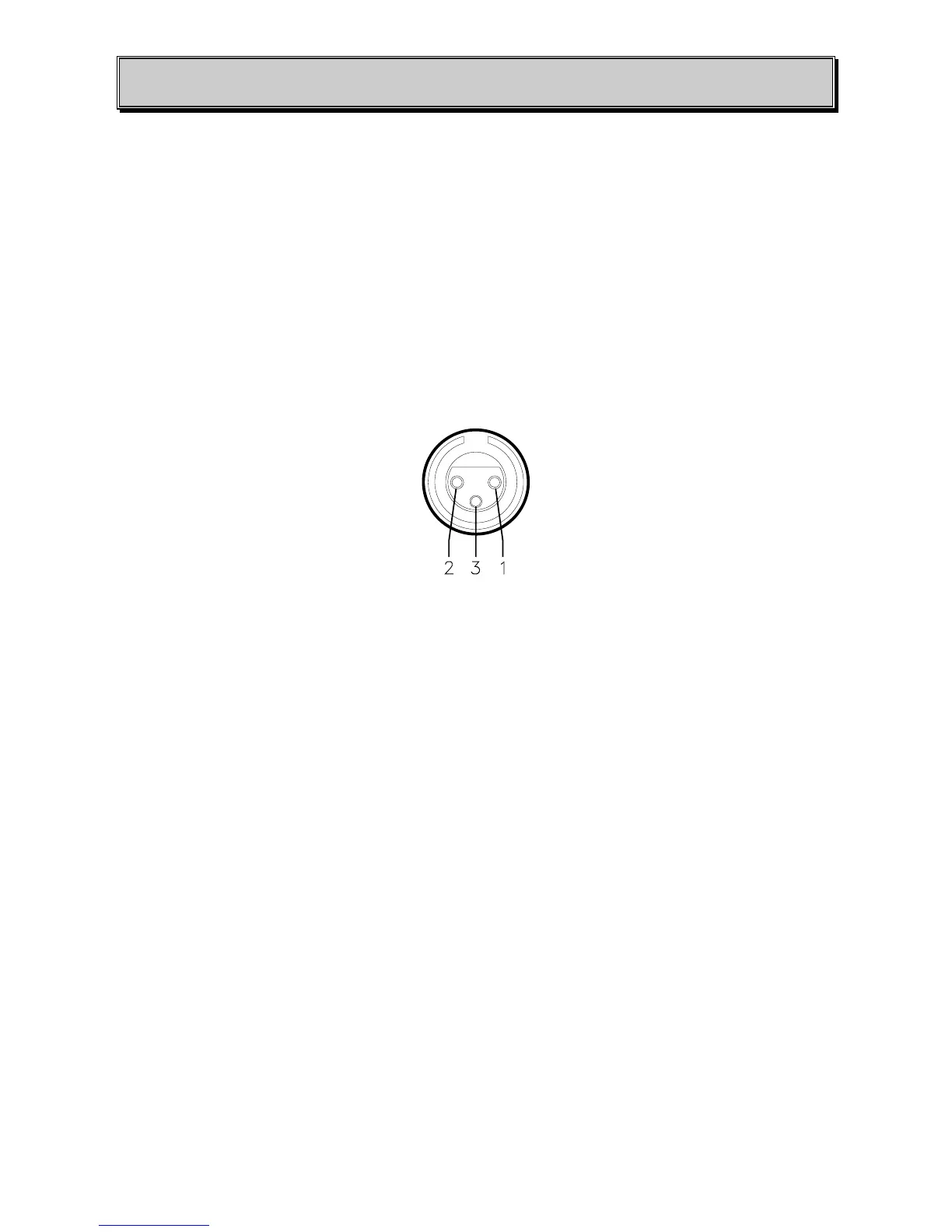

XLR FEMALE
XLR CONNECTOR PIN BALANCED SIGNAL UNBALANCED SIGNAL
1 ground ground
2 "
+" ground
3 "
– " signal
