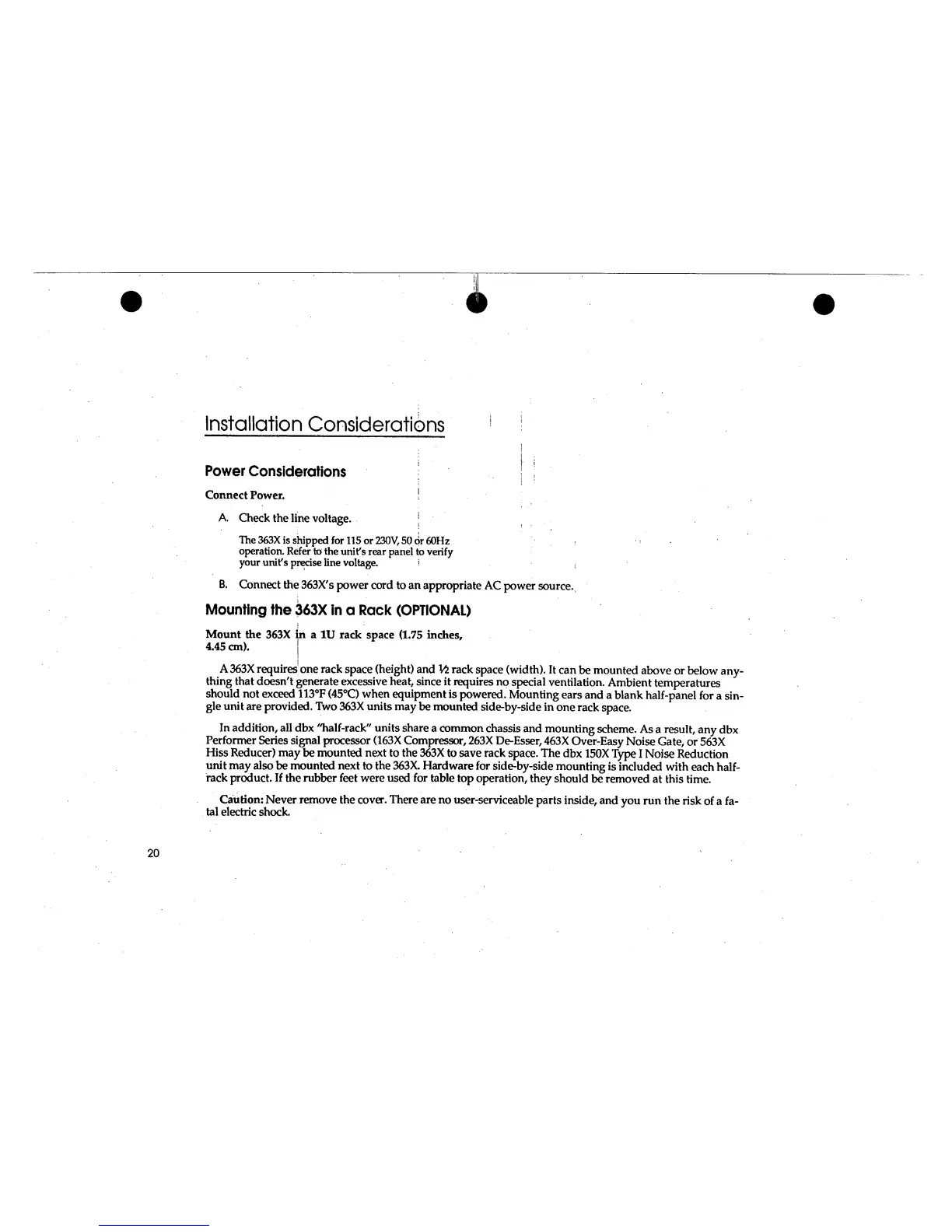

Installation
Considerations
Power
Considerations
Connect
Power.
!
A.
Check
the line
voltage.
The 363X
is shipped
for 115 or 230V,
50 or
60Hz
operation.
Refer to
the unit's
rear
panel to verify
your
unit's
precise line voltage.
B.
Connect
the
363X's power cord
to
an
appropriate
AC
power
source.
Mounting
the
363X in
a
Rack (OPTIONAL)
Mount
the 363X in
a 1U rack space
(1.75
inches,
4.45 cm).
A363X requires
1
one
rack
space
(height)
and
VS
rack
space (width).
It
can
be mounted
above
or
below
any-
thing that
doesn't
generate excessive heat,
since it
requires
no
special
ventilation.
Ambient
temperatures
should
not exceed 113°F
(45°C)
when equipment
is powered.
Mounting
ears
and a
blank
half-panel
for
a sin-
gle
unit
are
provided. Two 363X units
may
be mounted
side-by-side in
one
rack
space.
In
addition, all dbx "half-rack" units share
a common
chassis
and
mounting
scheme.
As
a result,
any
dbx
Performer
Series
signal
processor
(163X
Compressor,
263X
De-Esser,
463X
Over-Easy
Noise
Gate,
or
563X
Hiss
Reducer)
may be
mounted
next to the
363X
to save
rack
space.
The
dbx
150X
Type I
Noise
Reduction
unit
may
also
be
mounted next
to
the
363X.
Hardware
for
side-by-side
mounting
is
included
with each
half-
rack product.
If
the
rubber
feet
were used
for
table
top operation,
they
should
be
removed
at
this time.
Caution:
Never remove
the cover.
There are
no
user-serviceable
parts
inside,
and
you run the risk
of
a
fa-
tal electric
shock.
