2.2 641/641m, 1261/1261m Front Panels

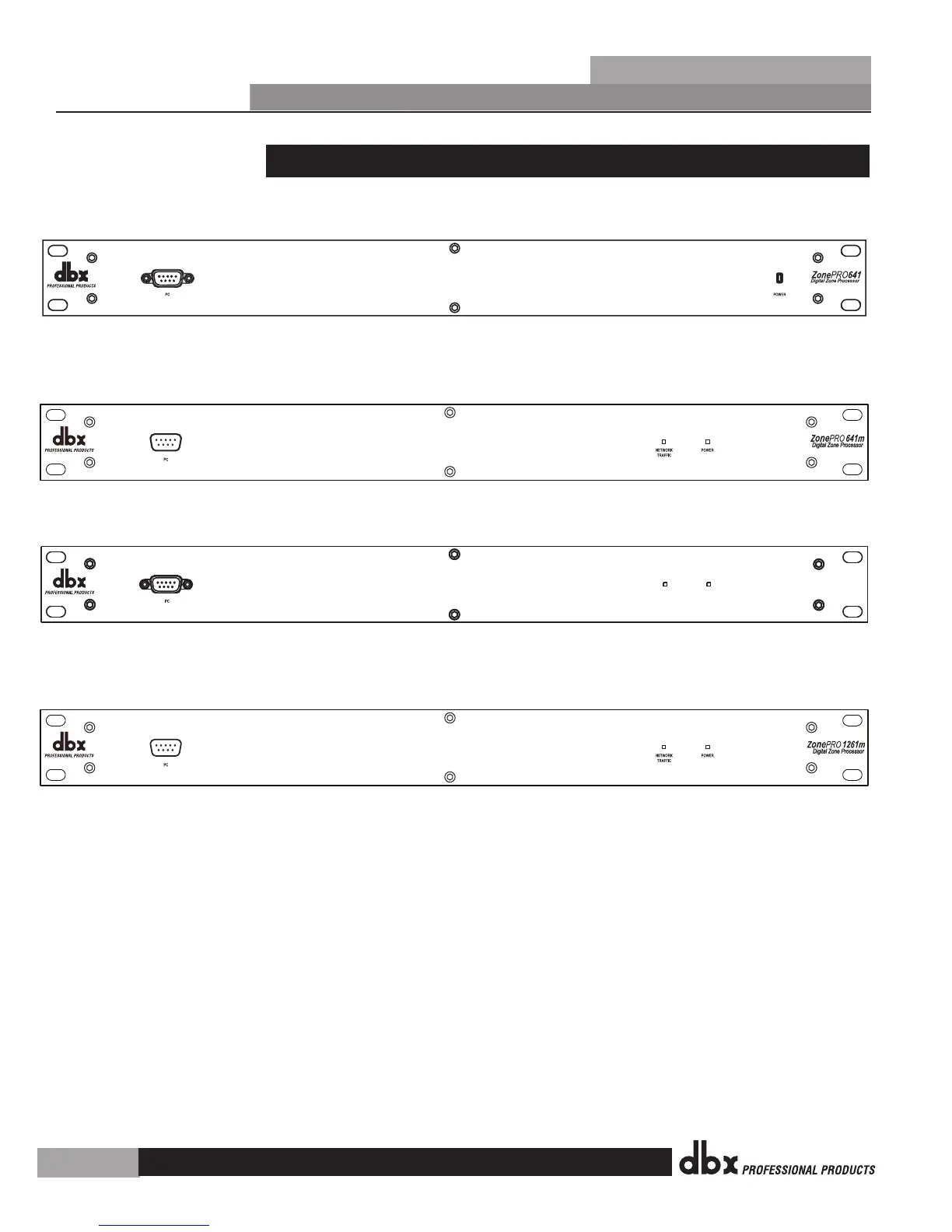

641 Front Panel
641m Front Panel
1261 Front Panel
NETWORK
TRAFFIC
POWER
ZonePRO1261
Digital Zone Processor
1261m Front Panel
PC Connection
This DB-9 connection is used to communicate to the PC via RS-232 protocol.
Power LED
This LED (when lighted), indicates that the ZonePro 641 is currently powered.
Network Traffic (641m, 1261, and 1261m only)
This LED (when lighted), indicates that network traffic is present.
