INSTALLATION

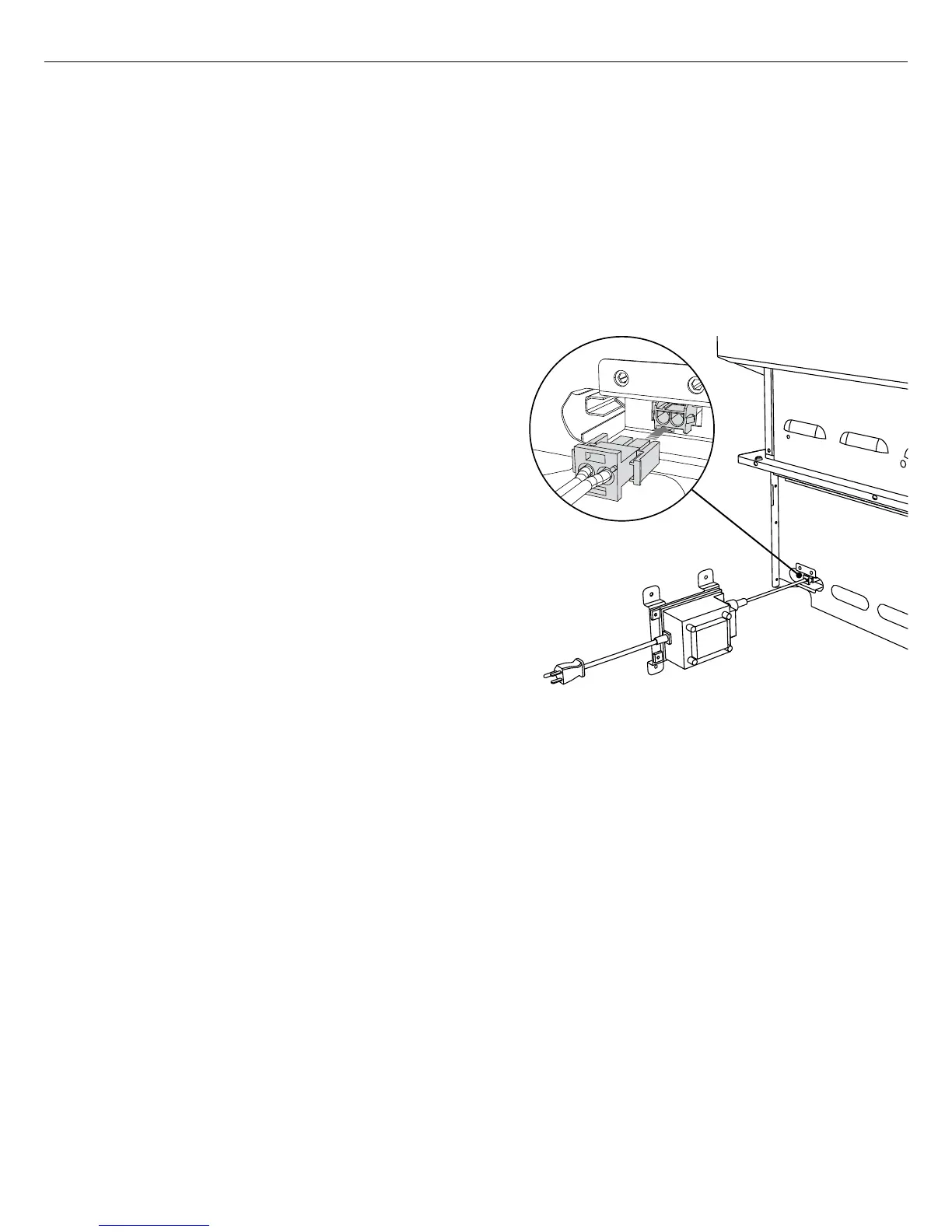

FIG. 13 Transformer Install Location
Electrical Connection
IMPORTANT!
Use only a Ground Fault Interrupter (GFI) protected circuit with this grill.
General
Connection to AC Installation requires an outdoor 120VAC 15A GFI (Ground Fault Interrupter)
electrical outlet adjacent to the grill. The GFI outlet features an internal breaker that reduces shock
hazard. This type of outlet should be installed by a qualified electrician either inside the island
enclosure for built-in units, or near the location where a free-standing unit will be used. For built-in
grills, the supplied 12V transformer is connected to the grill during installation.
All grill models have a power transformer for the
ignition and internal lighting, which is concealed
in a box with an attached power supply cord. This
transformer must be secured in a dry location
and away from the grill firebox and excessive heat
area. When installing, it is recommended that the
transformer be located below the grill in a readily
accessible location. Be sure to provide adequate
access to facilitate service if the transformer or
connections should need future maintenance.
If the electrical system fails to operate, a connection
may have come loose in shipping or the GFI may have
tripped, requiring a reset. See the Troubleshooting
section for more details.
