INSTALLATION
CAVITY DIMENSIONS
BE1-48R BE1-36R
Inches (mm) Inches (mm)
A
Maximum height of enclosure shell
35 1/2" (902) 35 1/2" (902)
B
Depth of enclosure shell
22 3/4" (578) 22 3/4" (578)
C
Minimum depth for hood swing
3 3/4" (95) 3 3/4" (95)
D
Width of enclosure cavity
51 5/8" (1318) 40 1/2" (1029)
E
Height of enclosure cavity
11 1/8"(283) 11 1/8"(283)
f
Depth to gas supply opening
18 1/2"(470) 18 1/2"(470)
G
Height of opening for access doors/drawers
20" (508) 20" (508)
H
Width of opening for access doors/drawers
46" (1168) 34" (864)
ACCESS DOORS
MODEL NUMBER
ACCESS DRAWERS
MODEL NUMBER
CAVITY WIDTH CAVITY HEIGHT
Inches (mm) Inches (mm)
ADN1-20x48 ADR2-48 46" (1168) 20" (508)
ADN1-20x36 ADR2-36 34" (864) 20" (508)
ADN1-20x30 ADR2-30 28" (711) 20" (508)
ADN1-20x24 ADR2-24 22" (559) 20" (508)
D
E
G
H
F
A
B
C

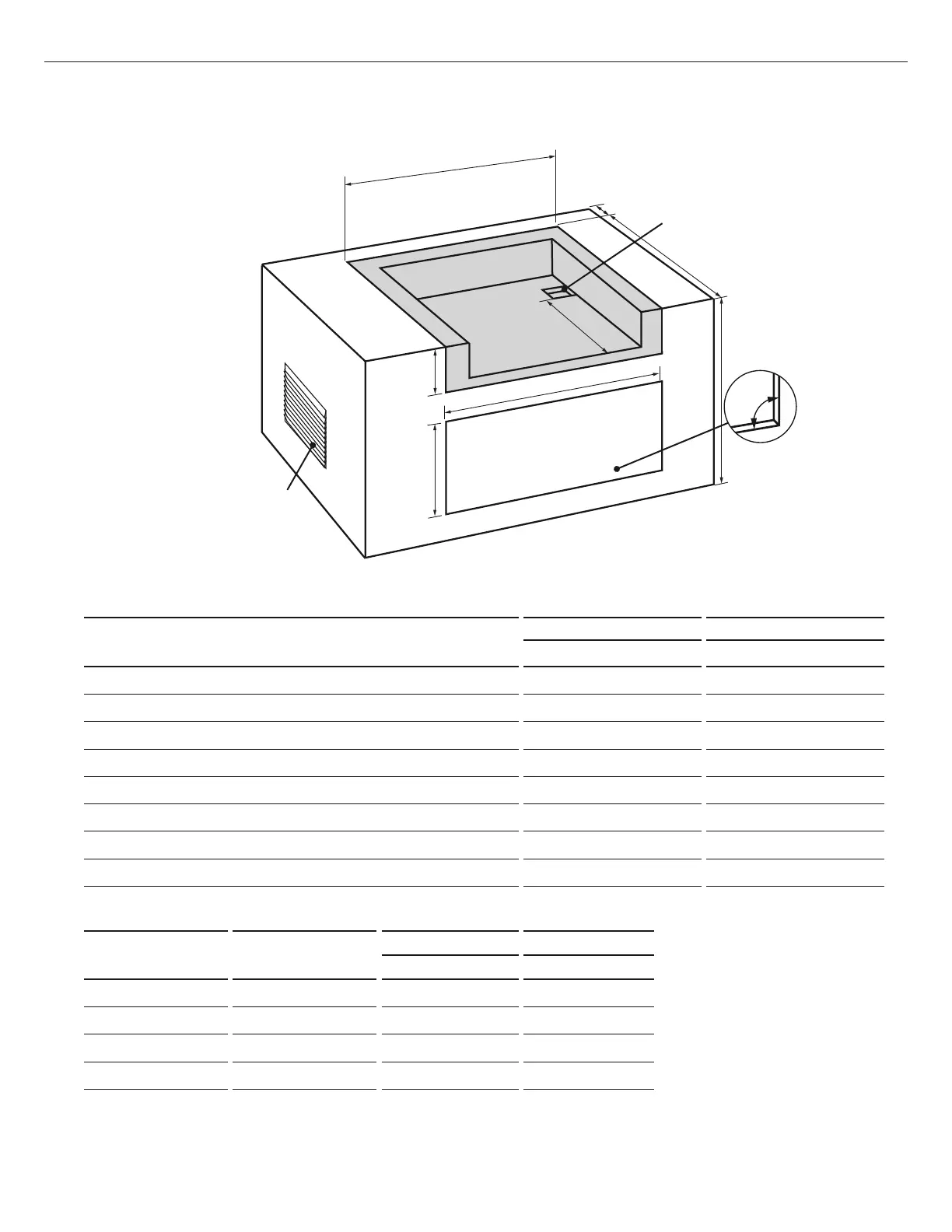

Built-in Construction Details
Standard layout for cavity including insulated jacket
Note: the enclosure should have ventilation
holes to prevent gas build-up in the event
of a leak. Refer to ANSI Z21.58 Standard for
Outdoor Cooking Gas Appliances, Section
1.7 Enclosures For Self Contained LP-Gas
Supply Systems.
Note: the cut-out of each
corner should be a 90°angle
in order for the access doors/
drawers to fit properly.
Note: 4x4” (102mm x 102mm)
opening for gas supply line
FIG. 06
To order access drawers or doors, please visit www.dcsappliances.com for further details.
