18
INSTALLATION
Gas Hook-up
Connection: LP Hose with a Type 1 quick disconnect and regulator is included. Operating pressure:
11.0”W.C. All gas piping and connectors must conform to the Standard for Connectors for Outdoor
Gas Appliances and Manufactured Homes, ANSI Z21.75/CSA 6.27.
If you intend to operate your built-in grill on LP gas utilizing a 20lb type 1 cylinder, then a built- in
LP tank restraint must be installed prior to initial use of the grill. The Installer must supply ½” ID
Flex hose and fixed pipe and a flare adaptor as indicated in Fig. 09.
When using a LP gas cylinder ensure it is installed in a vertical position to provide the required
vap
or withd
rawal.
This appliance can be used with any brand of 20lb LP gas tank provided it is compatible with a proper
retention device (not supplied).
LP built-in hook-up using a 20lb tank
If the grill is to be installed in a built-in application, then the grill must be installed in accordance
with the built–in installation guidelines and
the LP regulator/hose assembly must be removed from
the product
.
IMPORTANT!
Gas piping and connectors must be clamped within the the enclosure to avoid contact with moving
parts and hot surfaces. Where the gas piping passes through an opening in the enclosure, the
piping must be protected for a distance of at least 2” (50mm) either side of the opening.
Bottom of unit
LP regulator/
hose assembly
Enclosure wall
1/2” ID flex hose with
1/2” NPT fittings
(not supplied)
1/2” NPT fixed pipe
(not supplied)
Adapter 3/8”
flare fitting
1/2” NPT female
(not supplied)
20 lb
LP Tank
(not supplied)
Tank retention
device (not
supplied)

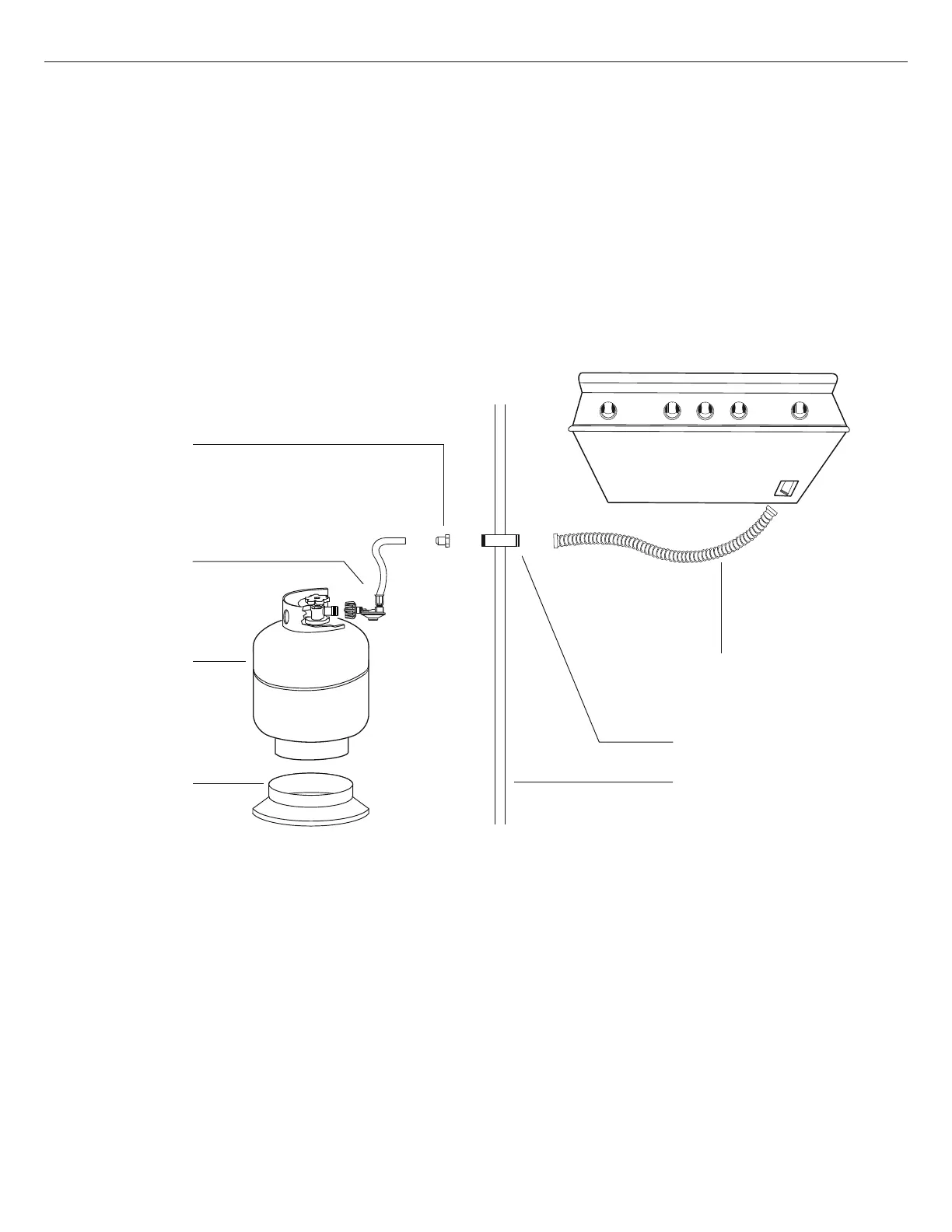

FIG. 09 LP Gas - Built-in
