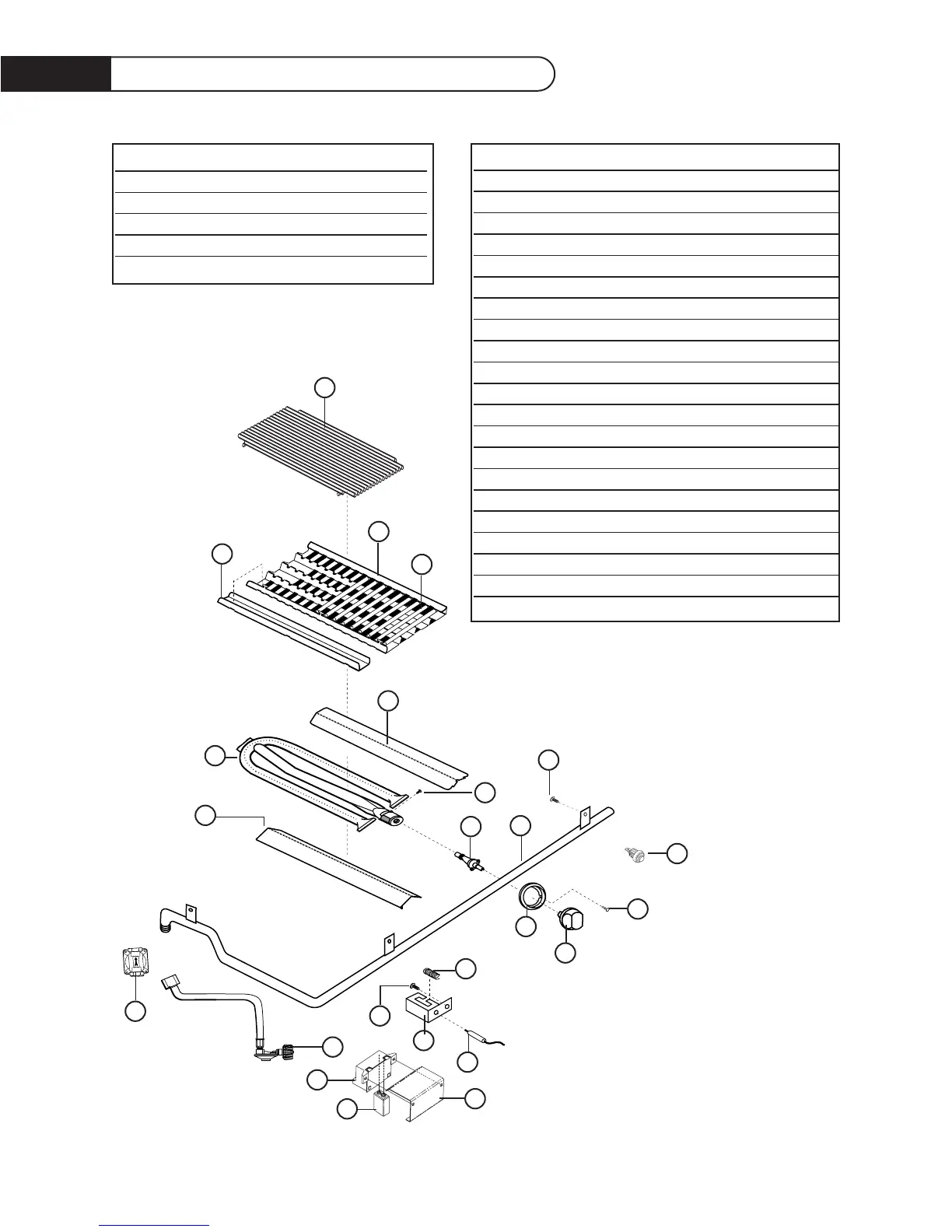

DCS BG27-BQL - Grill Burner Assembly

24
Grill Burner As semb ly
1
2
3
4
6B
19
9
8
17
18
10
14
12
20
21
13
15
11
6A
7
5
ITEM DESCRIPTION PART NO.
1 Grill Rack S/S 27 19014-02
2 Radiant 32218-02
3 Ceramic Rods 32224
4 Radiant Cap 32264
5 27”C/ Heat Shield w/Assy. 32220
22
ITEM DESCRIPTION PART NO.
6a SS Grill Burner 32217
6b Air Shutter Screw 12003-2
7 27” Heat Shield 32336
8 Manifold 27 18034-01
9 Control Valve 13017
10 Control Knob 14154
11 Knob Bezel 14006-PL
12 Collector Box 32801
13 NI-Chrome Wire Coil 32313
14 Burner Electrode L/H 16281-02
Burner Electrode R/H 16281-03
15 Screw 15001-28
16 Bracket, Ignition Module, Eltec4 30991
17 Ignition Module 2 Outputs (BQ Mod) 18349
Ignition Module 4 Outputs (BQR Mod) 18350
18 Bezel Screw 15001-29
19 Manifold Bolt 15001-06
20 Regulator (LP GAS) 13230
21 Regulator (NAT. GAS) 13035
22 Alkaline 9V Battery 18354
23 Switch Igniter Snap-on 18353
16
23
