DCS BG27-BQL - Grill Body Parts List

25

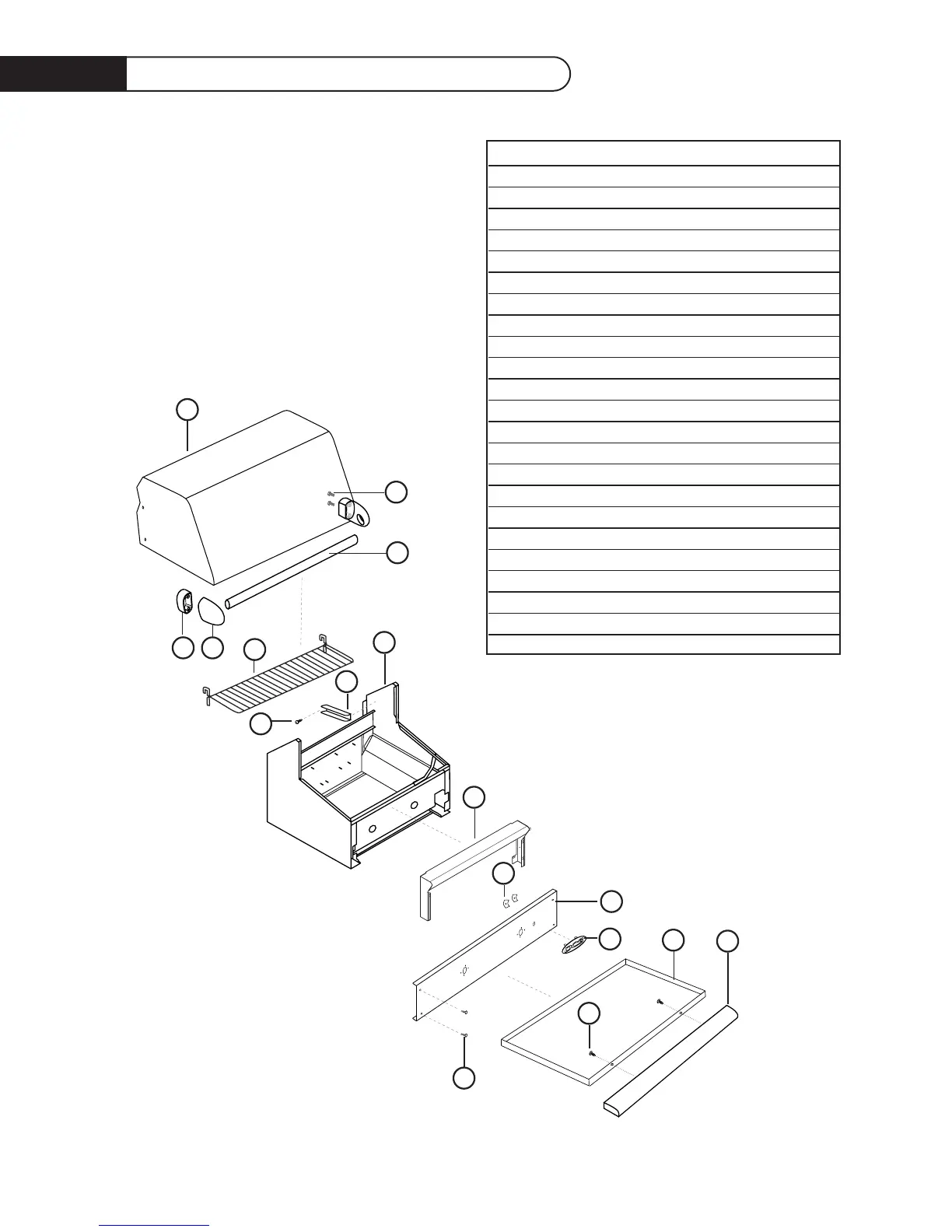

Grill Body Parts List
ITEM DESCRIPTION PART NO.
1 Roll Top Lid 27BQR 32320-01
2 Handle End Cap Spacer 18174
3 Handle End Cap 18164-PL
4 Shoulder Bolt 15089-3
5 Handle Tube 27 32048-05
6Warming Rack 27BQ 32314
7 Body Assembly 27 32271
8 Bolt (small) 15002-26
9Warming Rack Ret. 27 L/H 32340-01
Warming Rack Ret. 27 R/H 32340-02
10 Landing Ledge w/assy. 27 32043
11 Cage Nut 15029-02
12 Valve Panel BG27-BQN 32272-05-PA
Valve Panel BG27-BQL 32272-05-PA
Valve Panel BG27-BQRN 32272-04-PA
Valve Panel BG27-BQRL 32272-04-PA
13 DCS Logo 17382-03
14 Torx Screw 15002-41
15 Drip Pan 27 32260
16 Drip Pan Handle 27 32041
17 Screw 15002-17
Keps Nut 15021-04
Hex Nut 15004-09
1
4
5
2
3
6
7
8
9
10
11
15
14
13
12
16
17
