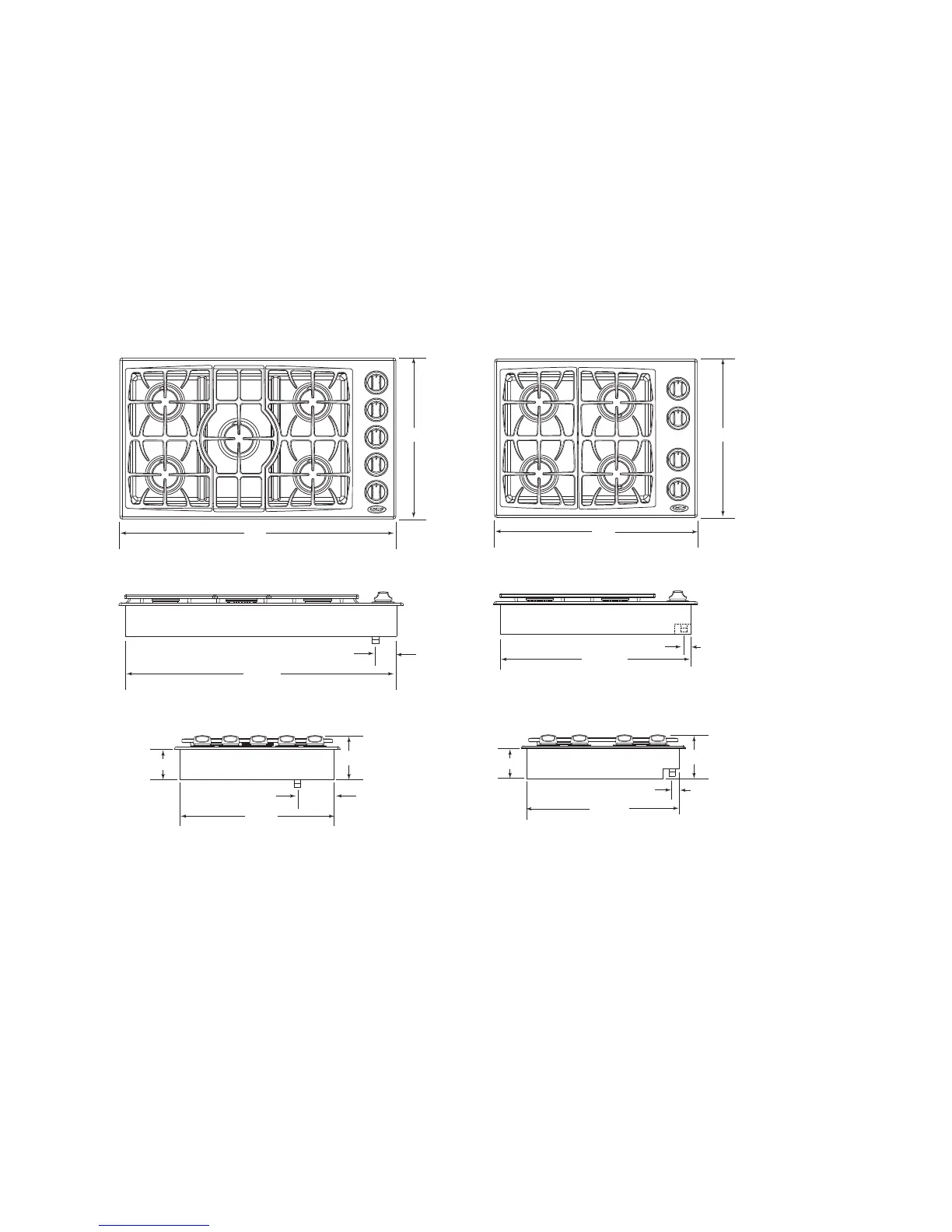

PRODUCT MEASUREMENT SPECIFICATIONS
To be sure that the CUTOUT for the cooktop is correct and to insure a clean installation, REFER TO PAGE 8
FOR CABINET PREPARATION AND CUTOUT SPECIFICATIONS.
36"
Top View
Front View
Right Side View
2
1
"
19-1/2"
5-1/2"
4
"
34-1/2"
2-3/4"
2-7/8"
30"
Top View
Front View
21"
19-1/2"
5-1/2"
4
"
28-5/16"
Right Side View
1-1/2"
2-11/16"
CTD-365
CTD-304
