At present, the USB HID interface is not supported by the USB Class 2 Windows driver.
For the Media Player functions, the category code is 20.
Function Code
Play / Pause 53
Previous track 33
Next track 32
Fast forward 52
Fast reverse 50
Input Indicators
In normal use, one of these indicators (J) illuminates to indicate the selected input. For Dual AES, both
AES 1 and AES 2 indicators illuminate. If the DAC is not receiving data through the selected input, the
indicator will flash.
Sample Rate Indicators
The column of sample rate indicators (K) remain off when the unit is not locked. When the unit locks to
incoming digital data, the indicator for the detected sample rate will illuminate. When receiving DSD
data, the 176.4 and
192 indicators illuminate.
When the volume is adjusted, the function of these indicators changes to show the volume setting in
10dB steps, see the table below. 5 seconds after the last volume adjustment, they display the sample
rate once more.
32
44.1
48
88.2
96
176.4
192
-60dB
32
44.1
48
88.2
96
176.4
192
-50.5 ~
-59.5dB
32
44.1
48
88.2
96
176.4
192
-40.5 ~
-50dB
32
44.1
48
88.2
96
176.4
192
32
44.1
48
88.2
96
176.4
192
32
44.1
48
88.2
96
176.4
192
32
44.1
48
88.2
96
176.4
192
-30.5 ~
-40dB
-20.5 ~
-30dB
-10.5 ~
-20dB
-0.5 ~
-10dB
32
44.1
48
88.2
96
176.4
192
0dB
-60dB
-50dB
-40dB
-30dB
-20dB
-10dB
0dB

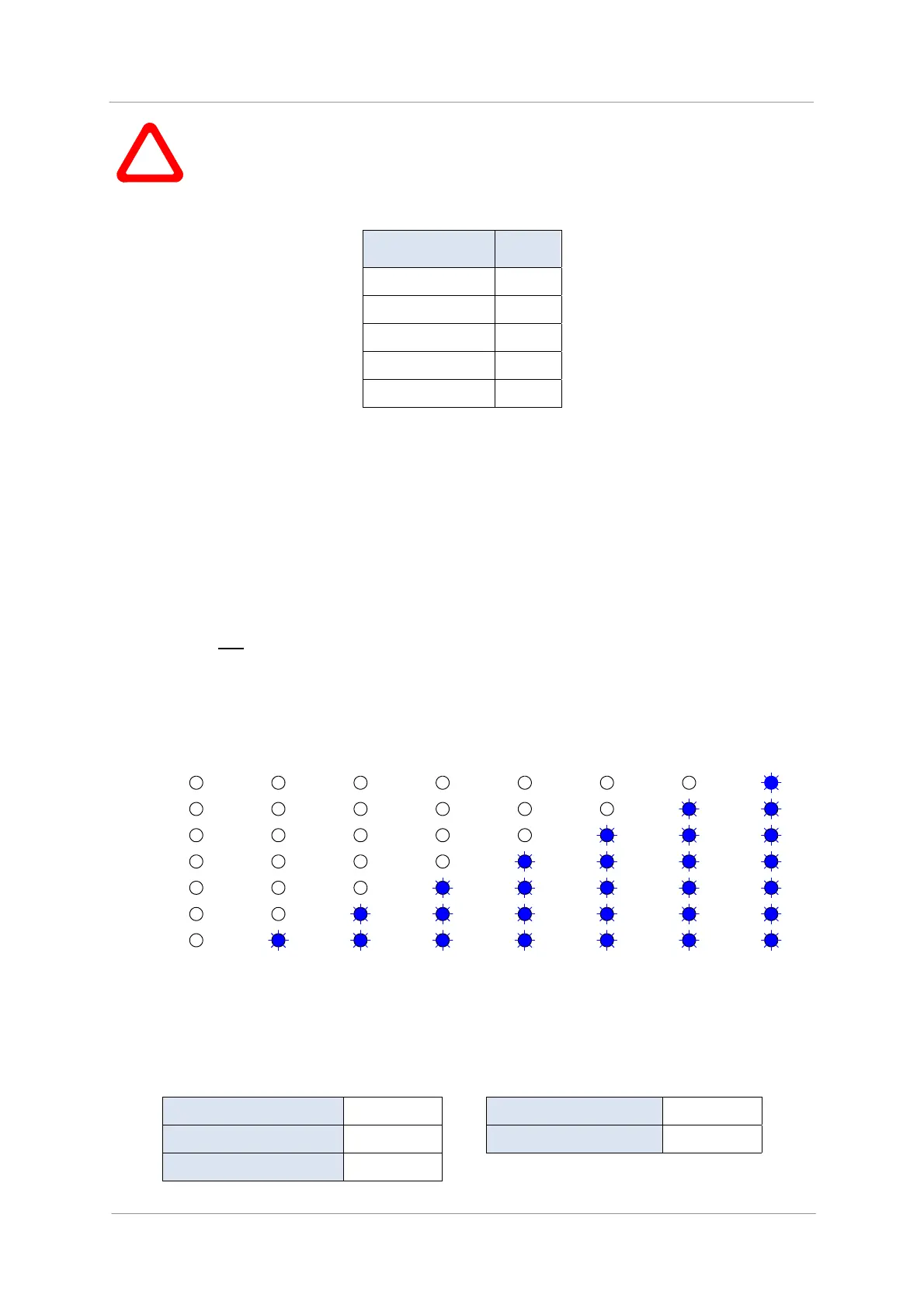

Figure 7 – The Volume indicator ranges
Factory Reset
To reset the unit to factory defaults, hold down the Vol+ and Vol- buttons together at power-on until
ALL the LEDs start flashing, then release both buttons. This will reset the unit as follows:
Volume -30dB Phase Normal
Mute Not muted Input USB
Filter Sharp filter
To Next Page
