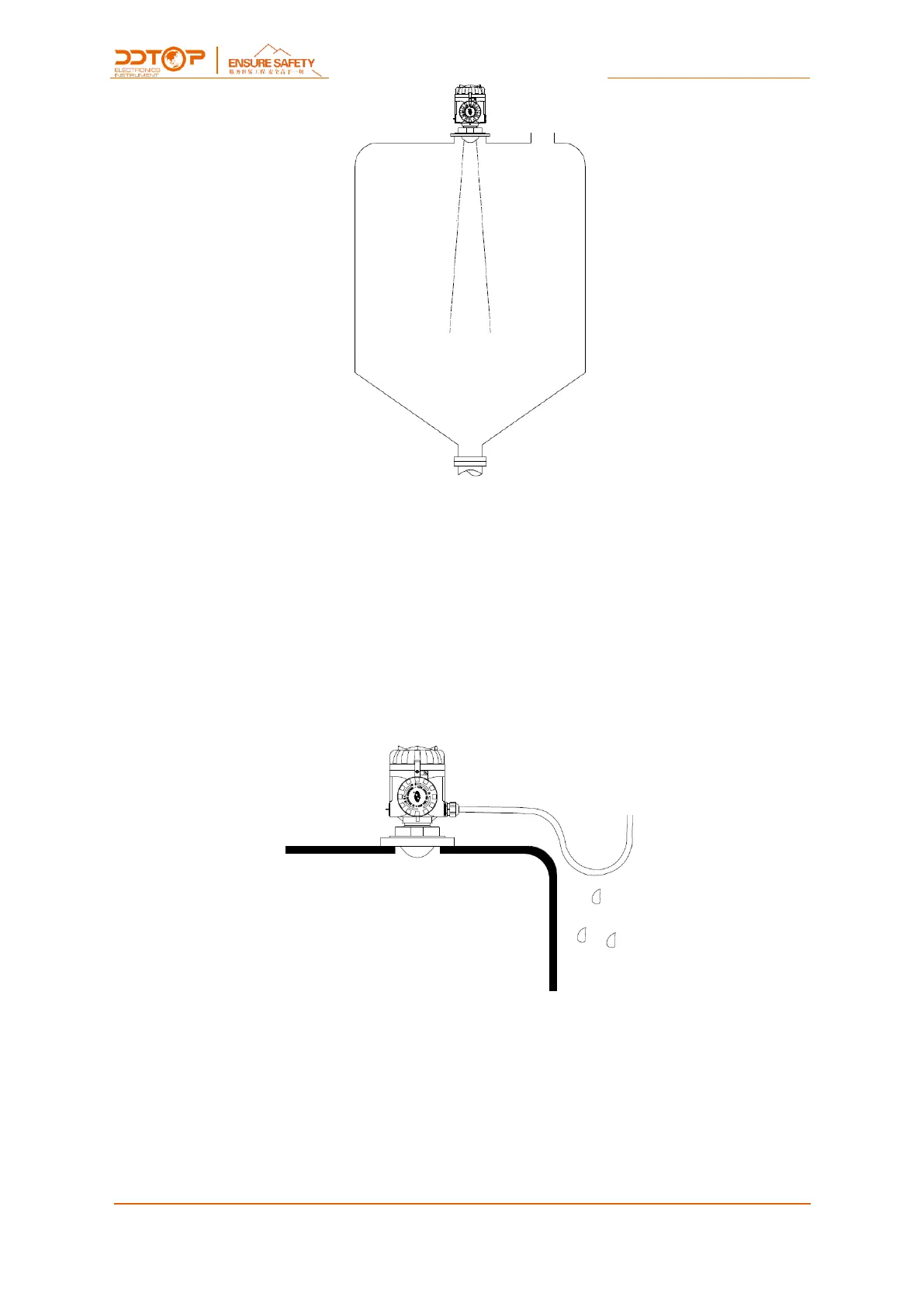

Figure 8 Conical Bottom Tank Installation Position Diagram
Damp-proof
For installation outdoors or in wet rooms and on refrigerated or heated tanks, the cable sealing
sleeve should be tightened to protect against moisture and the cable should be bent downwards
at the entry point - Figure. 9
Figure 9 Damp-proof Wiring Schematic Diagram
Container Receiver
The length of the vessel receiver should be such that the end of the antenna extends into the
tank as far as possible - Figure 10
