Dea NET24N User Manual

EN-12

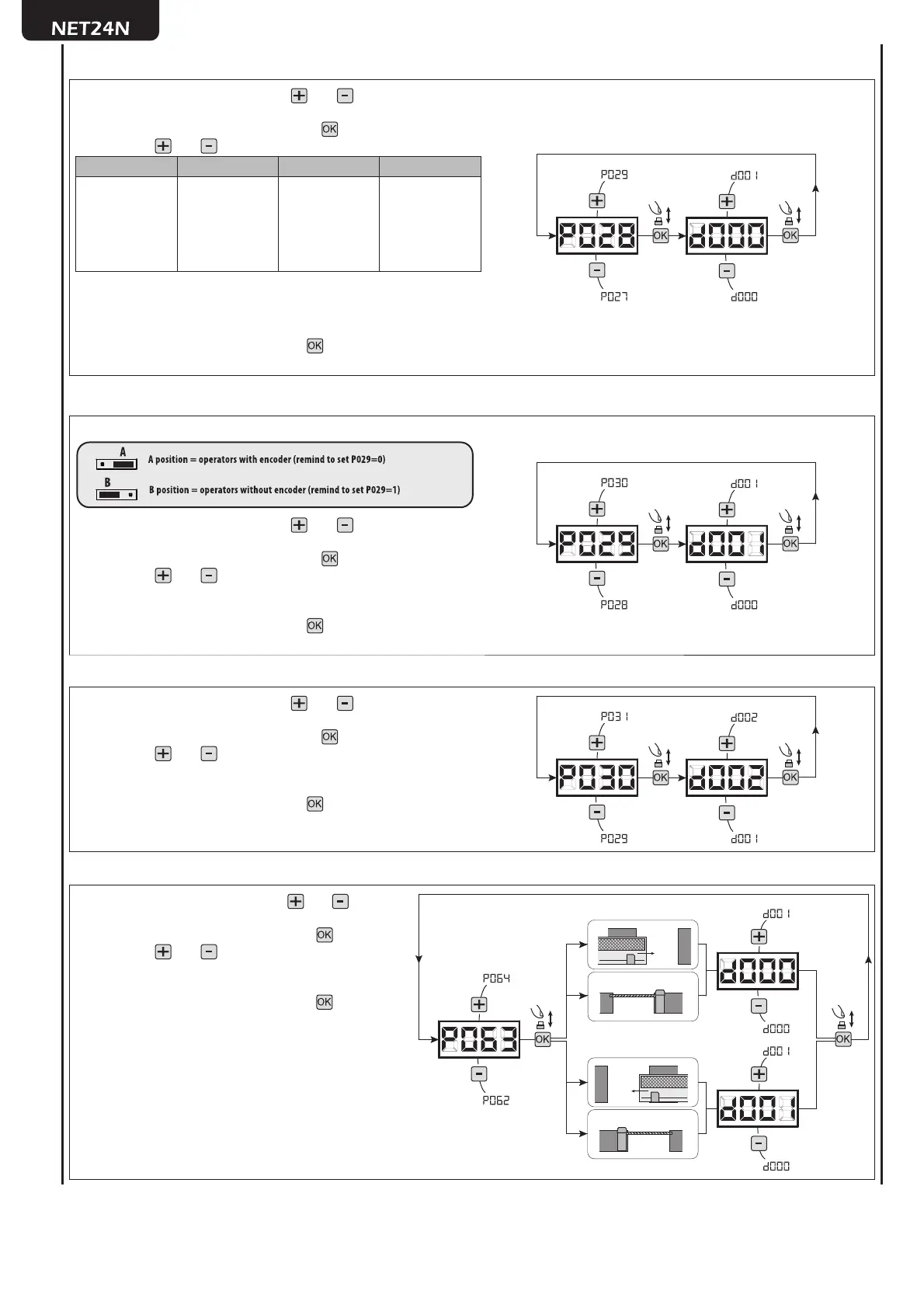

3 Selection type of operators ! IMPORTANT !
1. Scroll down the parameters with and keys until you visua-
lise P028;
2. Access the parameter by pressing the
key;
3. Acting on
and keys, set:
Type 00 Type 01 Type 02 Type 03
• 005 5/24
• 006 8/24
• 007 Rev
• 000 Geko
• 001 Look - Mac
- Sting
• 002 Ghost
• 003 Livi 500
- 502 - 550PL -
Angolo
• 003 Livi 902/24 -
905/24
• 003 Pass
• 004 Stop
Warning: If you are using non DEA System operators, set the parame-
ter on the closer value for family type and performances (refer to table
on page EN-3).
4. Confi rm your choice by pressing the
key (display returns again
to P028).
4 Selection operating with or without encoder ! IMPORTANT !
Warning: Remember to correctly set the jumpers J5 and J9.
1. Scroll down the parameters with and keys until you visua-
lise P029;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
- d000=for operators with encoder;
- d001=for operators without encoder;
4. Confi rm your choice by pressing the key (display returns again
to P029).
5 Selection 1 or 2 operators functioning
1. Scroll down the parameters with and keys until you visua-
lise P030;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
- d001=for a single motor operating;
- d002=for 2 motors operating;
4. Confi rm your choice by pressing the key (display returns again
to P030).
6 Selection of direction of motion (only Type 00 and Type 03)
1. Scroll down the parameters with and keys until
you visualise P063;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
- d000=motor in standard position;
- d001=motor in inverted position;
4. Confi rm your choice by pressing the key (display
returns again to P063).
Warning: The parameter automatically reverses the
motors output open/close.
Warning: Changing this parameter you need to change
the parameters for the opening and closing limit switches.
