2 PRODUCT DESCRIPTION
NET24N is a universal control panel for DEA System 1 or 2 24V operators automations with or without encoder.
The main feature of this control board is its ease of confi guration of inputs and outputs according to any needs thus ensuring adaptability
to any type of automation. It is therefore easy to set up and exclude all unnecessary functions.

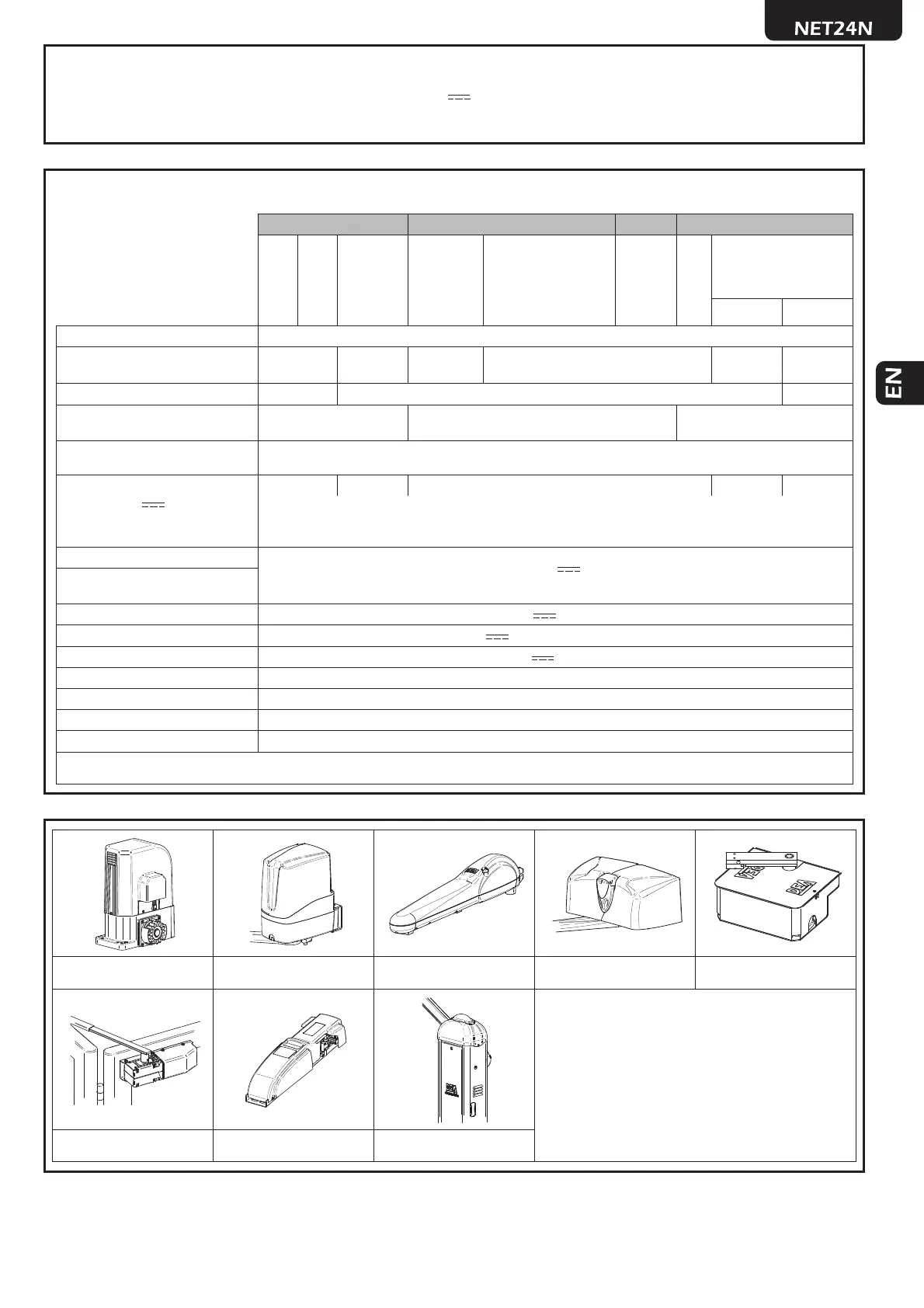

3 TECHNICAL DATA
TYPE 00 TYPE 01 TYPE 02 TYPE 03
Livi 5/24
Livi 8/24
REV
GEKO
ANGOLO
Ghost 100/200
LOOK - MAC - STING
LIVI 500/502
550PL
Livi 902/24
Livi 905/24
PASS
STOP
4÷5 m ≥ 6 m
Power supply (V) 230 V ~ ±10% (50/60 Hz)
Rated power transformer (VA)
80 VA
(230/22V)
250 VA
(230/22V)
120 VA
(230/22V)
150 VA
(230/22V)
150 VA
(230/22V)
250 VA*
(230/22V)
Fuse F1 (A) (transformer) 1A 2A 3,15A*
Batteries
2x
12V 1,3A
2x
12V 1,3A
2x
12V 4A
Fuse F2 (A) (batteries input) 15A
Outputs 24V
motors (maxi-
mum output current) (A)
1x 5A 1x 10A 2x 5A 2x 5A 2x 7A*
Warning: The above values are calculated by taking the maximum power supplied by the respective processors.
In absolute terms, the maximum current for each output should not exceed 10A when using a single motor and
7A when using 2 motors.
Auxiliaries power supply output
24 V
(24V_AUX + 24V_ST = max 200mA)
Stabilized power supply output for
safety devices
“Warning” output +24 V
max 15 W
Electric lock output 24V
max 5W or max 1 art. 110
Flashing light output 24 V
max 15W
Operating temperature range (°C) -20÷50 °C
Receiver frequency 433,92 MHz
Transmitters type of coding HCS fi x-code - HCS rolling code - Dip-switch - DART
Max remote controllers managed 100
* Values for STOP with boom ≥ 6 m.
Livi 5/24 - Livi 8/24
Rev
Geko Look - Mac - Sting Livi 500 - Livi 502 - Angolo Ghost 100 - Ghost 200
* If you are not using DEA operators, set the
parameter “Selection type of operator” to the closer
value as family type and performances.
Livi 550PL
Livi 902/24
Livi 905/24
Pass - Stop
