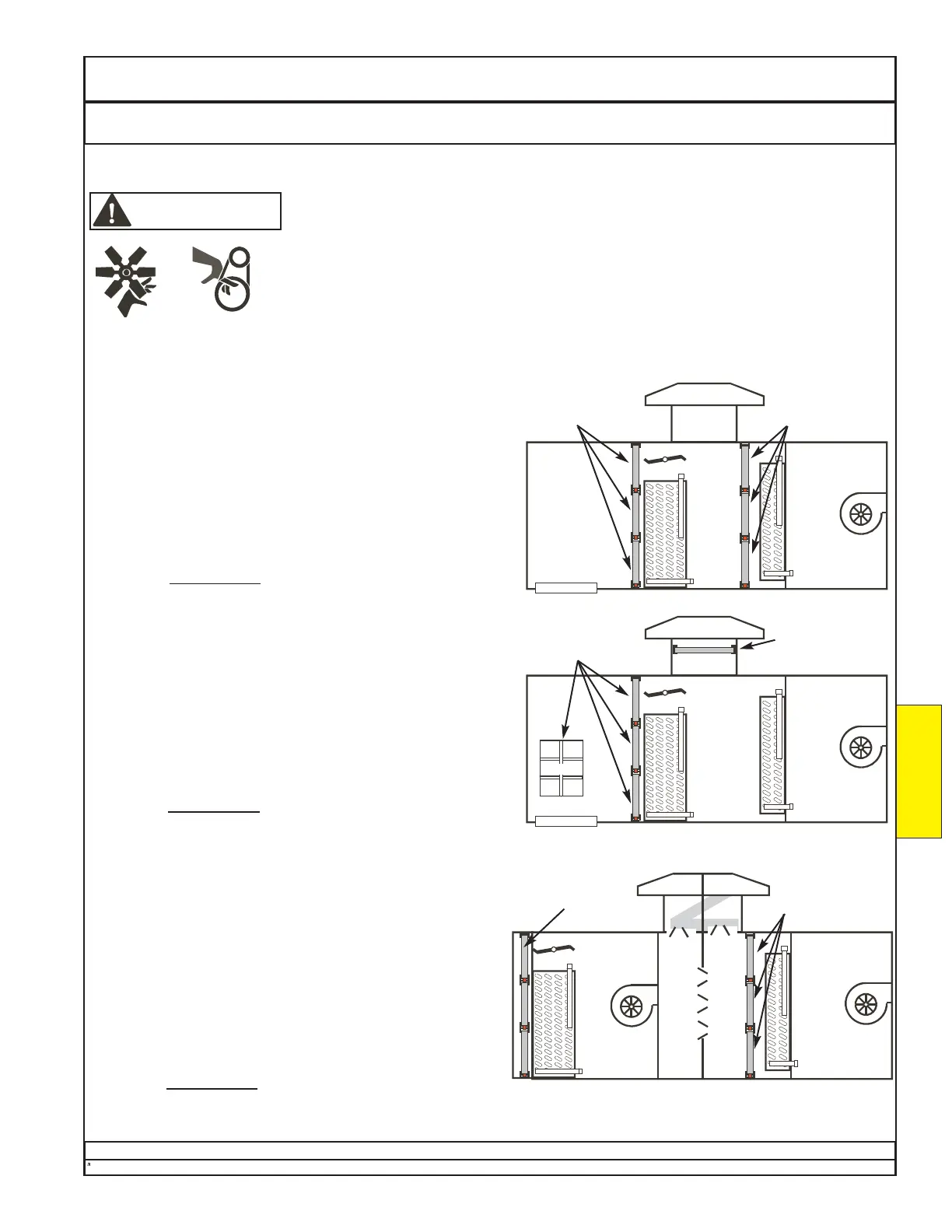

Page #173 background imageLoading...
Page #173 background image
Dectron, Inc. March 2012
Owners Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Check Air Filters T.A.B.
Data subject to change without notice.
173
DECTRON
FILTERFILTERFILTER
FILTERFILTERFILTER
Some horizontal units may have the optional Purge mode
feature. In this case, there will be a set of filters for out-
door air located upstream of the reheat coil. Most such
units have lift-out return-air filters accessible through a
door.
Filters for outdoor air must be moisture resistant.
The location, size, and number of filters may vary.
Refer to Appendix M6
.
Return-Air
Filters
Outdoor-Air
Filters
cooling coil
reheat coil
FILTER
FILTER
FILTERFILTER
Some horizontal units may have the optional
SmartSaver
®
feature. In this case, there will be two sets
of filters for return air as shown. Most such units have lift-
out return-air filters accessible through a door.
There will also be a set of filters for outdoor air as shown.
These filters may be lift-out or may have draw tabs.
Filters for outdoor air must be moisture resistant.
The location, size, and number of filters may vary.
Refer to Appendix M3
.
Return-Air
Filters
Outdoor-Air
Filters
cooling coil
FILTERS
FILTERFILTERFILTER
FILTERFILTERFILTER
Some horizontal units may have the optional econo-
mizer feature. In this case, there will be a set of filters
for return air as shown. These filters may be lift-out or
may have draw tabs.
There will also be a set of filters for outdoor air as
shown. These filters may be lift-out or may have draw
tabs.
Filters for outdoor air must be moisture resistant.
The location, size, and number of filters may vary.
Refer to Appendix M5
.
Return-Air
Filters
Outdoor-Air
Filters
cooling coil
reheat coil
reheat coil
Sample
Actual layout
may vary.
Sample
Actual layout
may vary.
Sample
Actual layout
may vary.
HORIZONTAL UNITS - SEE SUBSEQUENT PAGE FOR VERTICAL UNITS
Risk of contact with moving parts. Can cause injury or death.
This product contains rotating parts and V-belt drives. Some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death from
contact with these parts.
Using only approved devices (e.g. locking safety switch), disconnect, lockout, and
tagout all sources of electrical energy before working inside the unit cabinet. Allow
adequate time for rotating parts to stop. Follow all applicable safety regulations.
WARNING
T.A.B.
5.5
