Dectron, Inc. March 2012
DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owner’s Manual
T.A.B. Check Air Filters
Data subject to change without notice.
172
draw tab
one for each row
DECTRON

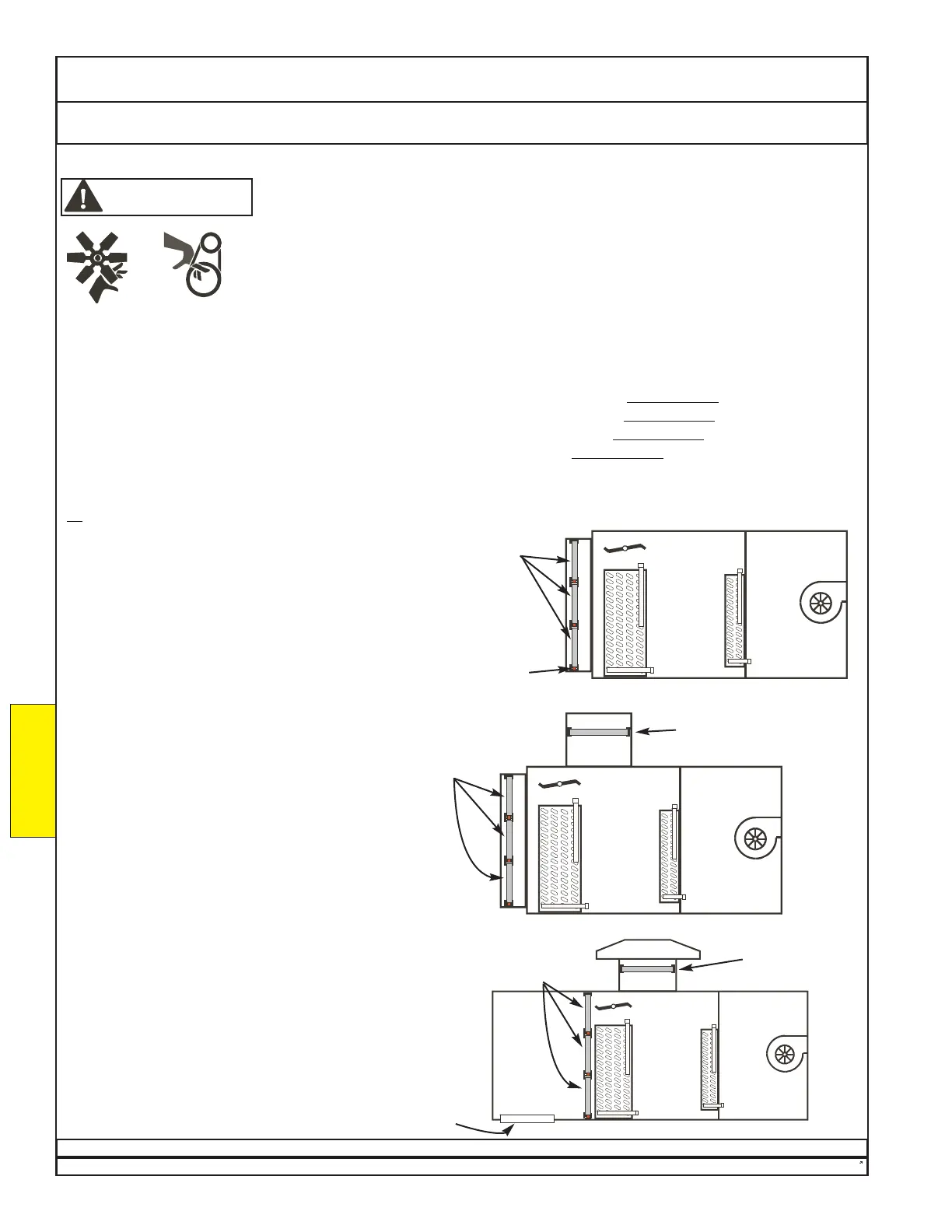

CHECK THAT ALL FILTERS ARE CLEAN AND IN PLACE
NOTE: The number and location of air filters depends on unit size, options, etc.
If your unit has the Chloraguard
®
option, other filters will be described in Appendix M2.
If your unit has the SmartSaver
®
option, other filters will be described in Appendix M3.
If your unit has the Economizer option, other filters will be described in Appendix M5
.
If your unit has the Purge option, other filters will be described in Appendix M6.
Return-Air
Filters
FILTER
FILTER
FILTER
This list may not be inclusive of all options. There are many combinations of options. Use judgment to be sure
all
air filters have been located.
Basic horizontal units may have return-air filters just
before the cooling coil. Use draw tabs or lift-out frames
to remove all filters, then replace them. This assures that
all filters are present.
The size and number of filters and draw tabs may vary.
FILTER
FILTER
FILTER
FILTER
Some horizontal units may have a connection for
outdoor-air intake, as shown. Use draw tabs to
remove all filters, then replace them. This assures
that all filters are present.
Filters for outdoor air must be moisture resistant.
The size and number of filters and draw tabs
may vary.
Return-Air
Filters
Outdoor-Air
Filters
FILTER
FILTER
FILTER
FILTER
Some horizontal units may have bottom, top, or side
return-air connection (bottom connection shown).
Such units may have lift-out return-air filters accessible
through a door.
Filters for outdoor air must be moisture resistant.
The location, size, and number of filters may vary.
Return-Air
Filters
Outdoor-Air
Filters
Return-Air
Connection
Sample
Actual layout
may vary.
Sample
Actual layout
may vary.
Sample
Actual layout
may vary.
Risk of contact with moving parts. Can cause injury or death.
This product contains rotating parts and V-belt drives. Some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death from
contact with these parts.
Using only approved devices (e.g. locking safety switch), disconnect, lockout, and
tagout all sources of electrical energy before working inside the unit cabinet. Allow
adequate time for rotating parts to stop. Follow all applicable safety regulations.
WARNING
HORIZONTAL UNITS - SEE SUBSEQUENT PAGE FOR VERTICAL UNITS
T.A.B.
To Next Page
