Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Voltage Monitor T.A.B.
Data subject to change without notice.
189
UNITS WITH VOLTAGE MONITOR ONLY
For TYPE 2 monitors, skip to next page.

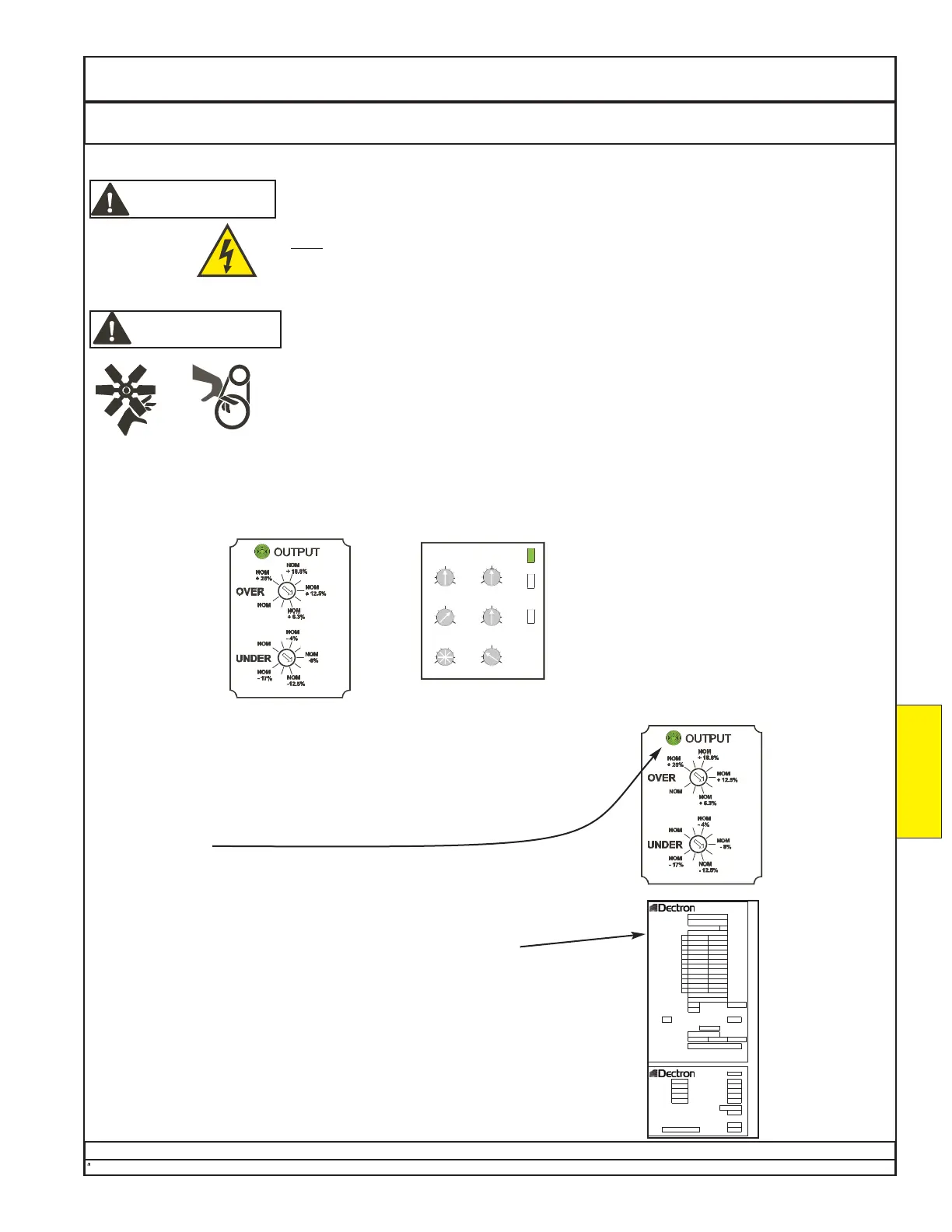

Type 1 Voltage Monitor
After power wiring is complete, and when safe to do so, turn on the branch-
circuit disconnect switch.
In some cases the blower may start. Some
DRY-O-TRON® units may have voltage monitors that prevent operation in the
event the branch circuit has voltage that is too high, too low, has lost a phase,
or has reversed phase sequence.
If the green LED
is not lit, confirm that the applied voltage is within ±10% of the nameplate volt-
age (NEMA MG-1), that all three phases are present, and that the phase
sequence is correct. Be sure that the knob(s) are set correctly.
The over-voltage setting should be at nominal voltage plus 10%.
The under-voltage setting should be at nominal voltage minus 10%.
Risk of contact with moving parts. Can cause injury or death.
This product contains rotating parts and V-belt drives. Some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death from
contact with these parts.
Using only approved devices (e.g. locking safety switch), disconnect, lockout, and
tagout all sources of electrical energy before working inside the unit cabinet. Allow
adequate time for rotating parts to stop. Follow all applicable safety regulations.
WARNING
Identify the type of voltage monitor present.
105
80
85
90
95
0.1
0.1
0.1
5
5
5
10
10
10
15
15
15
20
20
20
110
115
Vmax (%Ue)
Vmin (%Ue)
Ue (VAC)
Delay (sec)
ON
Delay (sec)
Delay (sec)
TYPE 1 TYPE 2
DRY-O-TRON ®
MODEL #:
SERIAL #:
I.D.
D
ELECTRICAL RATING
460 V ac, 3 ph, 60 Hz
COMPRESSOR
LRA RLA
COMPRESSOR
LRA RLA
COMPRESSOR
LRA RLA
COMPRESSOR
LRA RLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
COND. FAN MOTOR HP FLA
COND. FAN MOTOR HP FLA
PUMP MOTOR HP FLA
ENTHALPY MOTOR HP FLA
ELECTRIC HEATER kW A
Max. L.A.T. (°F)
SERVICE POWER
SPACE HEATING COIL
PSIG Max.
MCA A MAX. FUSE/CKT. BKR.*
15
A
*(HACR type per NEC)
R-22 FACTORY CHARGE
lbs
AIR VOLUME CFM
BELT SIZE
WIRING DIAGRAM
REFRIGERANT DESIGN PRESSURES: HIGH/LOW 300/150 PSIG
FABRIQUÉ AU CANADA / MADE IN CANADA
REF.:
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AIR TEMP.: °F R.H.: %
R-22 TOTAL SYSTEM CHARGE:
lbs
MAX. LENGTH OF REF. LINES (ONE WAY) ft
BETWEEN D.O.T. & REMOTE CONDENSER:
LINE SIZE:
AIR COOLED COND. MODEL #:
HOT GAS: in
LIQUID: in
WARNING
Risk of electric shock. Can cause injury or death.
Exposed electric terminals may be present inside electrical and control enclosures.
Access to the voltage monitor (if any) may require opening the electrical enclosure.
Only
persons qualified to work with exposed line-voltage terminals should be allowed
to open the unit electrical enclosure.
Follow all safety regulations.
T.A.B.
5.21
