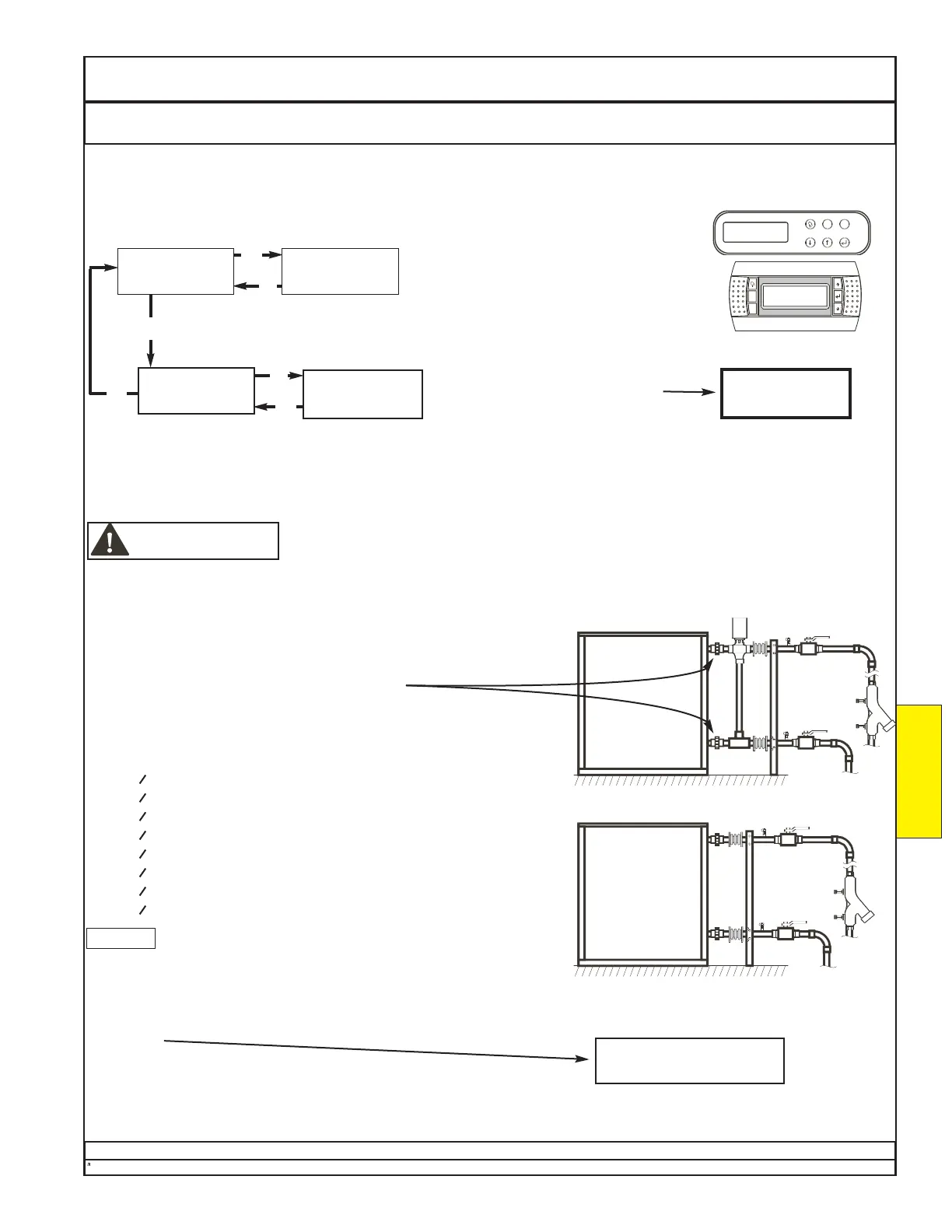

DECTRON
Some units may have optional hot-water or steam space heaters built in. Where the hot water or steam is
supplied by others, it is necessary to adjust the maximum flow.
To set the maximum flow, it is first necessary to put the unit into full heating mode. This is done by temporarily
changing the room-air temperature set point to a high value.
Dectron, Inc. March 2012
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Set Optional Heating-Water or Steam Flow T.A.B.
Data subject to change without notice.
203
For a controller interface map, see Operation.
GO TO
SET POINTS
HUMIDITY SET bbb%
RETURN AIR SET ddd F
POOL 1 SET eee F
POOL 2 SET ggg F
MAIN MENU
SCROLL DOWN
FOR OPTIONS
Default Screen
HUMIDITY aaa / bbb %
ROOM AIR ccc / ddd F
Press
↓↓
repeatedly to reach screen below.
Press
↵↵
repeatedly to move the cursor to the ddd position.
Press
↑↑
repeatedly to change the room-temperature set point
to 99°F (37°C).
If asked for a password, enter 1793 for units made before April
2005. For units made since April 2005, enter 1793 or just 17.
Press
↵↵
repeatedly to move the cursor to the top left corner of
the screen.
Copy the value of the room-air
temperature set point ddd here.
BOX A
Indoor Unit
Outdoor Unit
NOTICE
Risk of unit damage. Risk of failure to operate.
Excessive flow rates can damage heat exchangers.
Inadequate flow rates can cause failure to operate.
When the flows and temperatures are properly set, mark the adjusting device as having been set. Write the flow
rate here.
Return to the controller interface as above and return the room-temperature set point to the value recorded
above.
Be sure that the water or fluid temperature is near 180°F (82°C), and
not less than 160°F (71°C), unless otherwise specified by Dectron.
Note the size of the connections on the unit.
Adjust the flow rate to achieve the desired maximum space-heating
rate. Do not exceed the water flows shown here:
Connection Size Maximum Flow
1 ” O.D. or 1” NPT 16 GPM (60 l/m)
1 ” O.D. or 1 1/4” NPT 26 GPM (98 l/m)
1 ” O.D. or 1 1/2” NPT 36 GPM (136 l/m)
2 ” O.D. or 2” NPT 65 GPM (246 l/m)
2 ” O.D. or 2 1/2” NPT 101 GPM (382 l/m)
3 ” O.D. 144 GPM (545 l/m)
4 ” O.D. 250 GPM (946 l/m)
5 ” O.D. 460 GPM (1741 l/m)
1
8
1
8
5
8
1
8
1
8
1
8
3
8
5
8
Risk of scalding. Can cause injury.
Do not open any drains until pressures
and temperatures are minimized.
WARNING
T.A.B.
↵↵
↵↵
Esc
Esc
Esc
To Next Page
