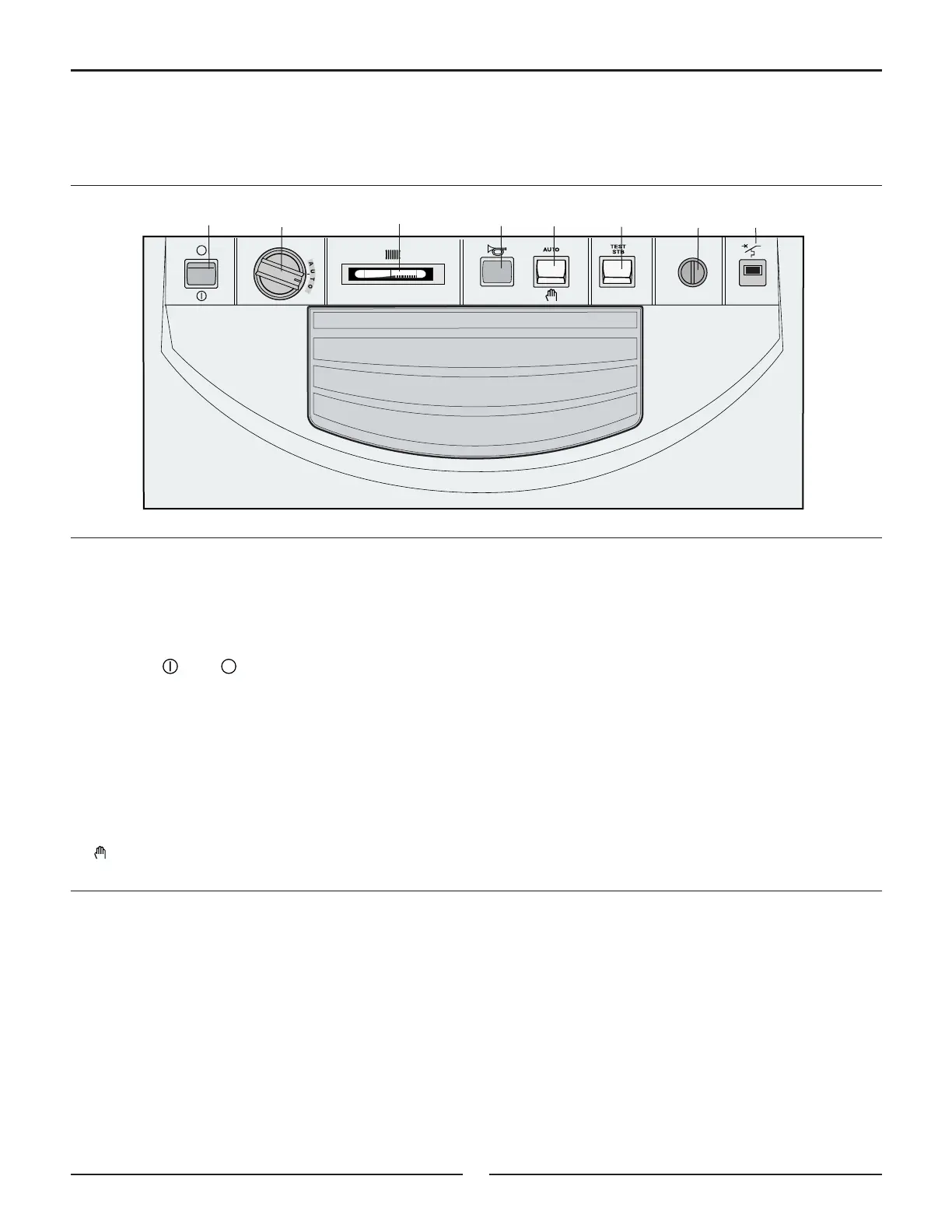

A. Timed circuit breaker (6 A)
B. Safety thermostat with manual reset
(Set to 110°C / 230°F)
C. Main On /Off
switch.
Note: we recommend leaving the boiler on during the
summer, particularly so that the heating pump clea-
ning function can remain in operation. It is preferable
to use "summer" mode for the period during which the
heating is to be cut off.
D.
2-position switch
AUTO : automatic operation
(manual) : forced operation
E.
"Test-STB" push button
When pushed and held in, safety thermostat tests and
cutoff of the heating pump.
F. Alarm light
This light is turned on when the burner is in safety (out
of order)
G.
Boiler thermostat
- during manual operation, adjustable from 30°C to
90°C / 86°F to 194°F (original stop at 75°C / 167°F).
- during automatic operation by the Easymatic regu-
lator, put the thermostat to the AUTO position
(between the 7 and 9 marks).
H. Boiler thermometer
C
F
D
EBA
HG
