6
WHE 2.24 / WHE 2.24 FF 17/07/2008 - 300011777-001-C
3. Description

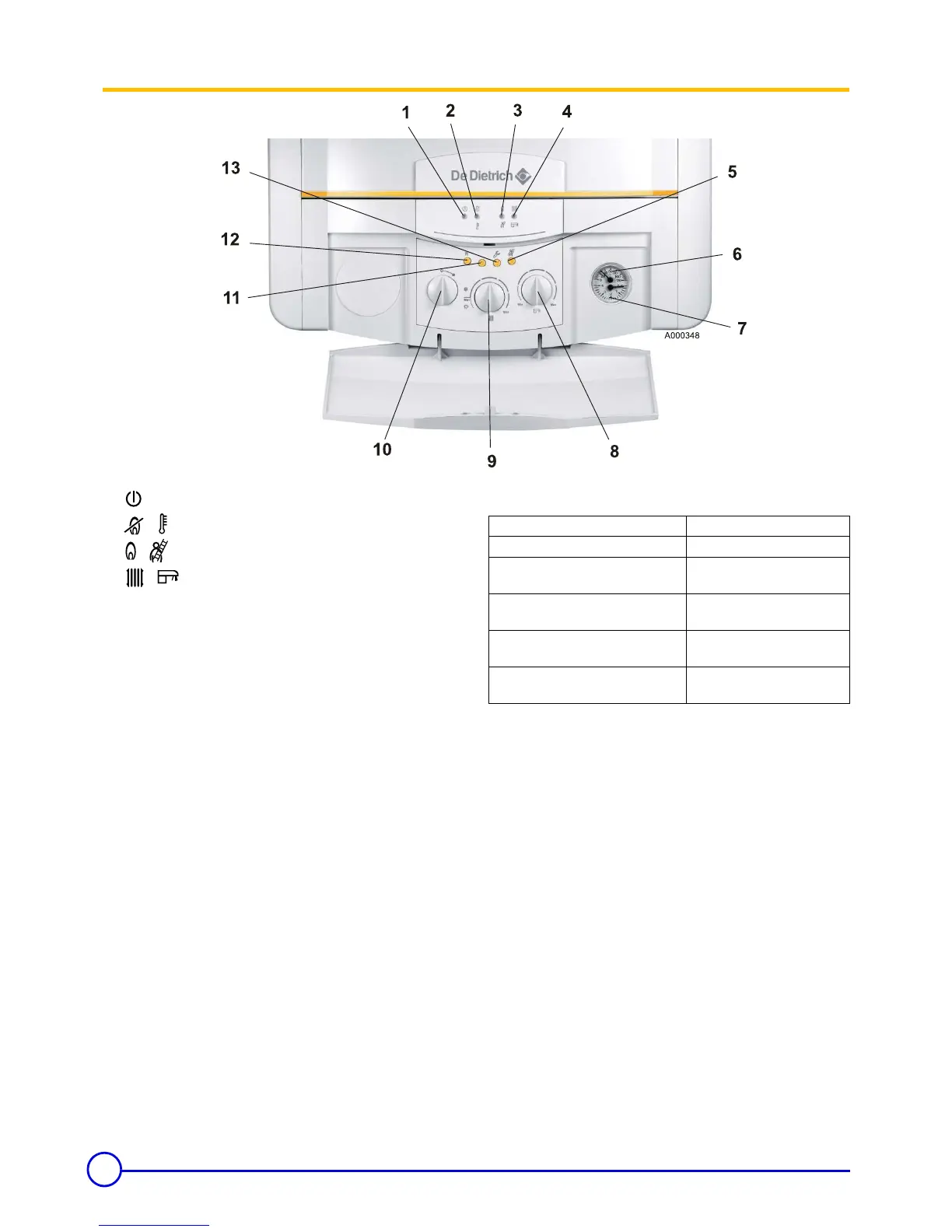

3.2 Control panel
1. : ON/OFF light
(1)
2. / : No flame or thermostat activation light
(1)
3. / : Flame present or sweeping mode activation light
(1)
4. / : "Heating" or "domestic hot water" ON light
(1)
5. "Chimney sweep" button (Sweeping mode)
6. Thermometer (Heating circuit temperature)
7. Pressure gauge (Pressure in the heating circuit)
8. domestic hot water thermostat (35 to 60 °C)
9. Boiler thermostat (35 to 80 °C)
"SUMMER" position / "WINTER" position
10. Main ON/OFF switch
11. Not used
12. Unlock button (reset)
13. "Fitter" button (Setting the boiler parameters)
The button can be locked by turning it 45°
(1)
The lights may have 6 different signals
For the meanings of the various combinations, see the following
chapters:
- Meaning of the lights (normal operation) - Page: 7
- Error messages - Page: 10
On
Off
Flashing slowly
On: 0.75 s
Off: 0.75 s
Flashing rapidly
On: 0.10 s
Off: 0.40 s
Flashing on modification
On: 0.75 s
Off: 0.25 s
Flashing on update
(2 flashes)
On: 0.15 s
Off: 0.15 s
