Deep Sea Electronics Plc DSE892 SNMP - Rs232 Connector; Null Modem Cable Wiring

Specifications
057-179 ISSUE: 3
Page 8 of 50

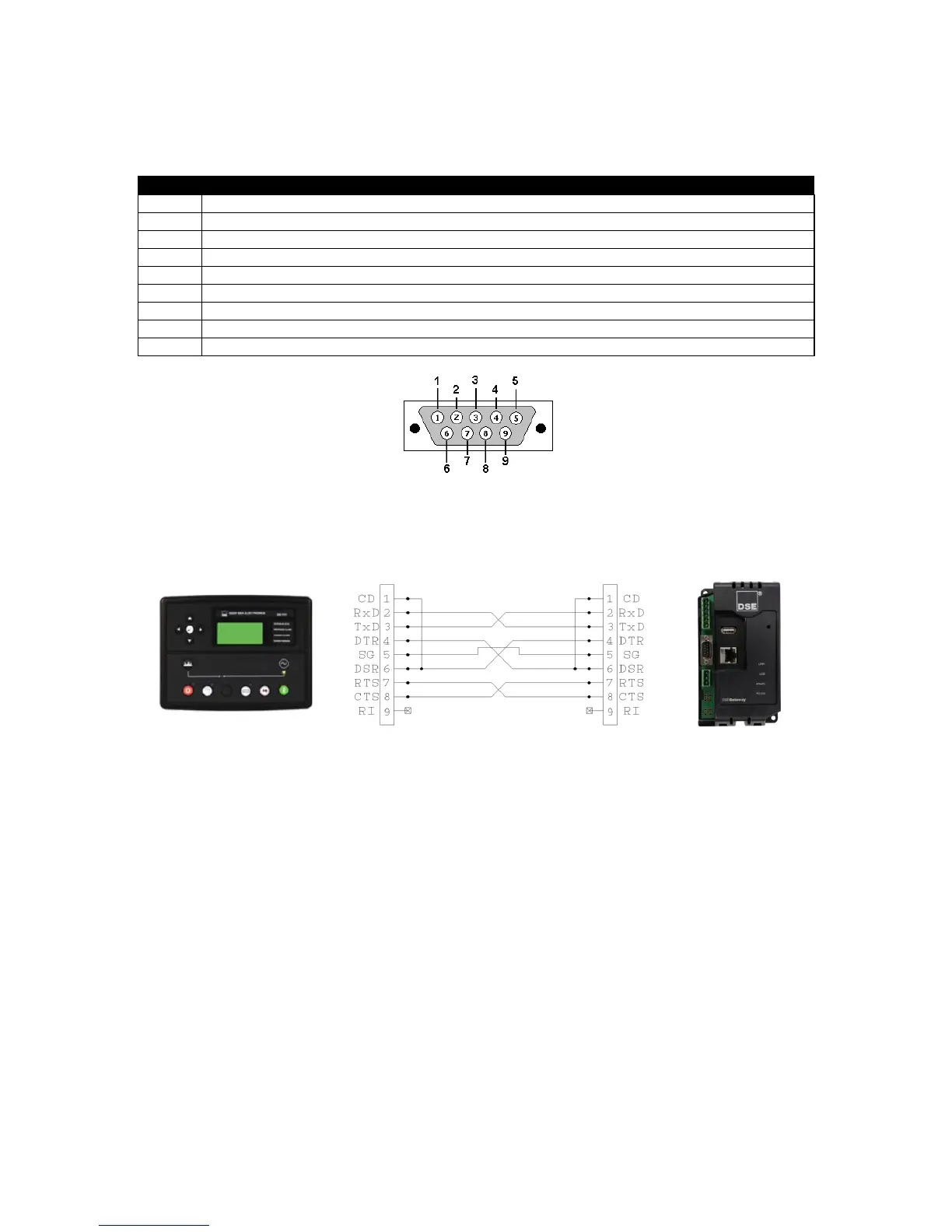

3.5 RS232 CONNECTOR
This socket provides support for connection to one DSE controller.
PIN No
NOTES
1
Received Line Signal Detector (Data Carrier Detect)
2
Received Data
3
Transmit Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request To Send
8
Clear To Send
9
Ring Indicator
View looking into the male connector on the module
3.5.1 NULL MODEM CABLE WIRING
DSE Controller with RS232
Null Modem Cable
DSE892 Gateway
