Deep Sea Electronics Plc DSE892 SNMP - Rs485 Connector

Specifications
Page 9 of 50
057-179 ISSUE: 3

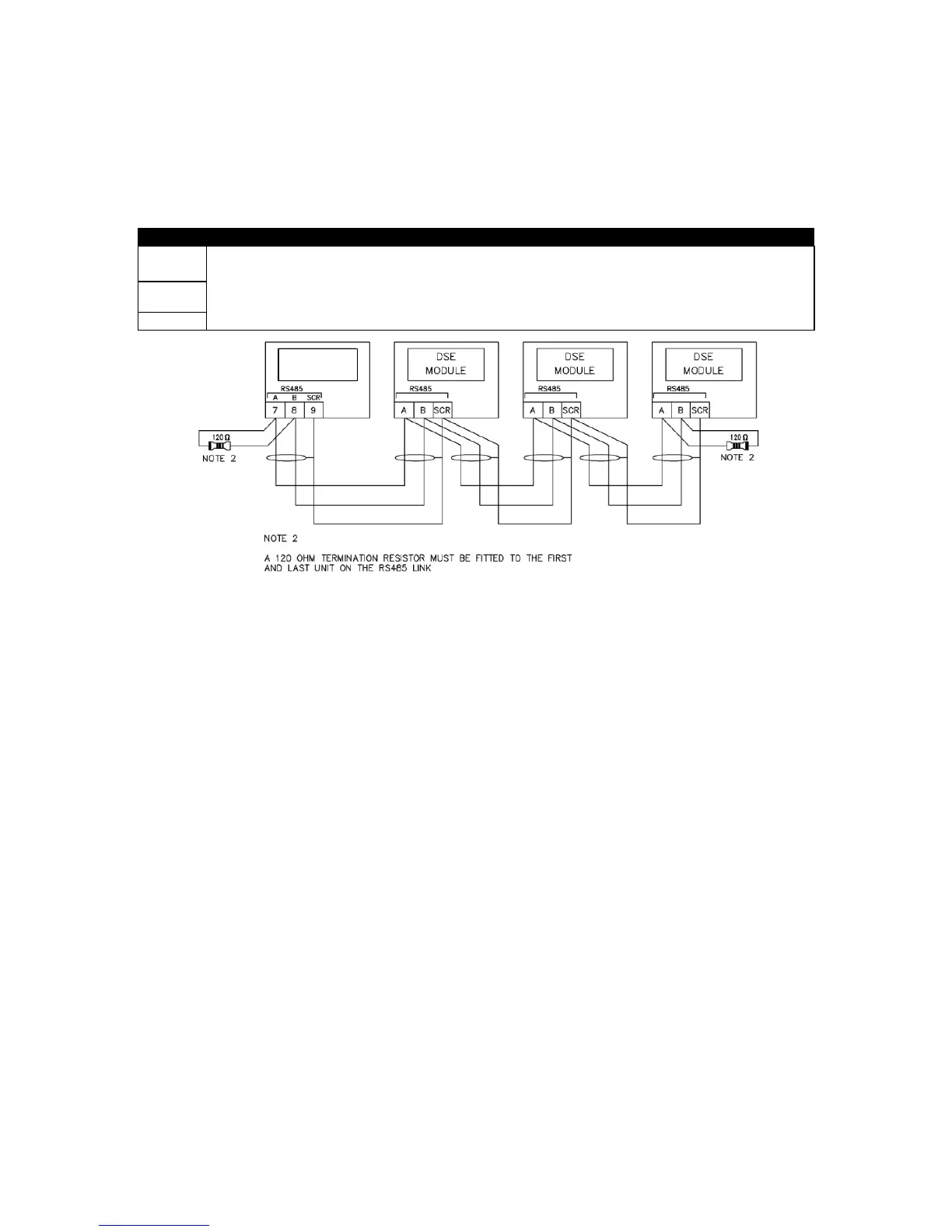

3.6 RS485 CONNECTOR
This socket provides support for connection to a maximum of five DSE controllers in a daisy chain
RS485 network.
Ensure termination resistors (120 ) are fitted as shown to the ends of the link as per RS485
standard.
PIN No
NOTES
A (-)
Two core screened twisted pair cable.
120  impedance suitable for RS485 use.
Recommended cable type - Belden 9841
Max distance 1200 m (1.2 km) when using Belden 9841 or direct equivalent.
B (+)
SCR
DSE892
