Probes
Probes
When powered-up, the PosiTector automatically determines which
probe is attached and does a self-check.

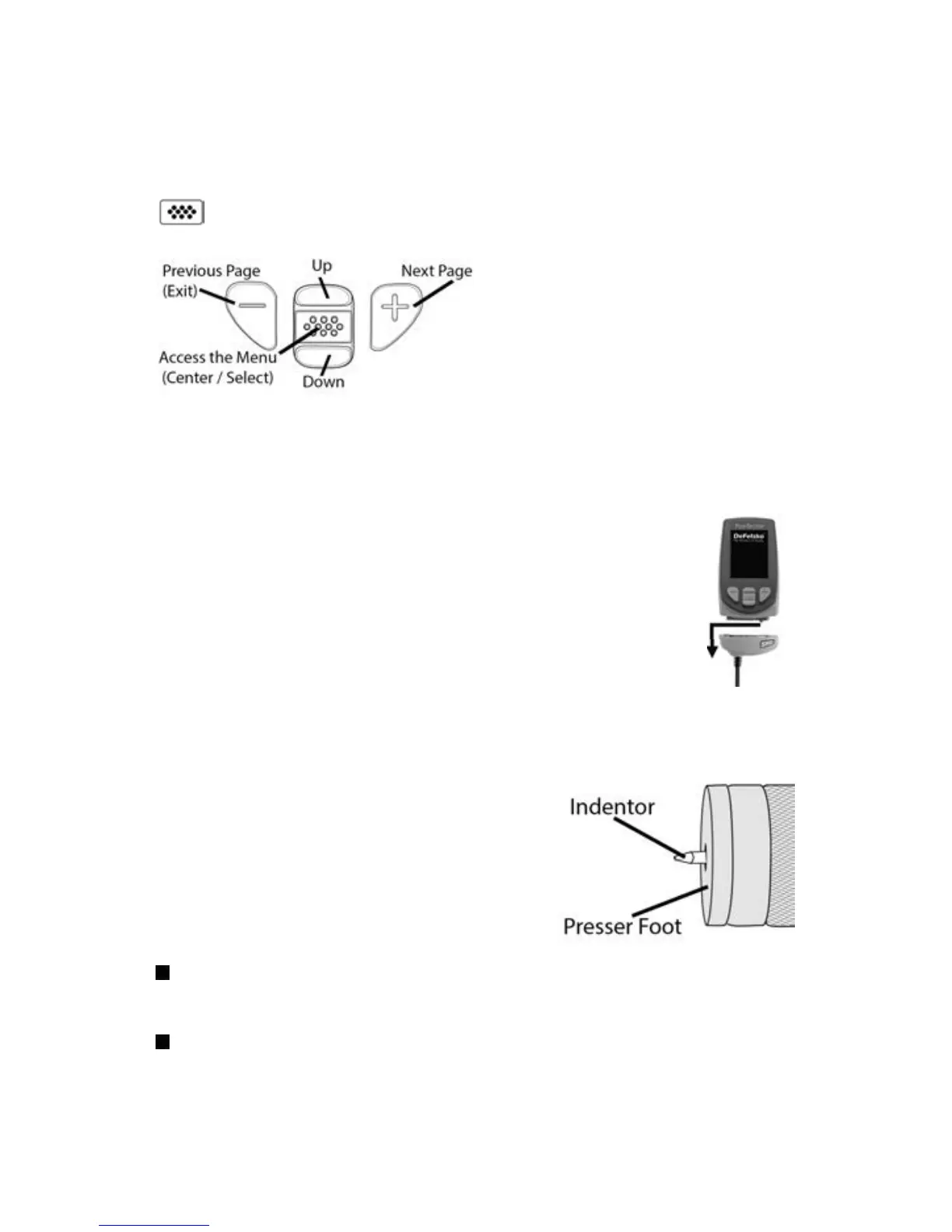

To disconnect a probe from a body, slide the plastic probe
connector horizontally (in the direction of the arrow) away
from the body. Reverse these steps to attach a different
probe. It is not necessary to power-down the Gage when
switching probes.
The PosiTector gage body accepts a wide variety of
probe types including magnetic, eddy-current and ultrasonic
coating thickness, surface profile, environmental, hardness,
salt contamination and ultrasonic wall thickness probes.
See www.defelsko.com/probes
The PosiTector SHD probe consists of
an indentor, calibrated spring and a
presser foot.
Two probe models are available for
measuring on a variety of materials:
PosiTector SHD-A (Shore A)
soft rubber, elastomers, neoprene, silicone, etc.
PosiTector SHD-D (Shore D)
hard rubber, epoxies, hard plastics, PVC, acrylic, etc.
To navigate, use the Up and Down buttons to scroll vertically and
to SELECT.
Press the (+) button to switch
pages in a multipage menu.
Press the (-) button to return to
the previous menu or page.
Select Exit to exit from any menu.
Menu Operation
Menu Operation
Gage functions are menu controlled. To access the Menu, power-up
the gage, then press the center navigation button.
To Next Page
