Defy 600STE - Oven Installation; Control Panel

3
OVEN
THERMOSTAT
MULTIFUNCTION
SELECTOR
RINGER
TIMER
WARMING
DRAWER
Installation
•
Insert the oven into the cupboard.
•
Open the door to expose the
fixing holes in the side
trims.
•
Secure the oven by 4 countersunk screws (fasteners are not supplied
).
(A)
Aperture

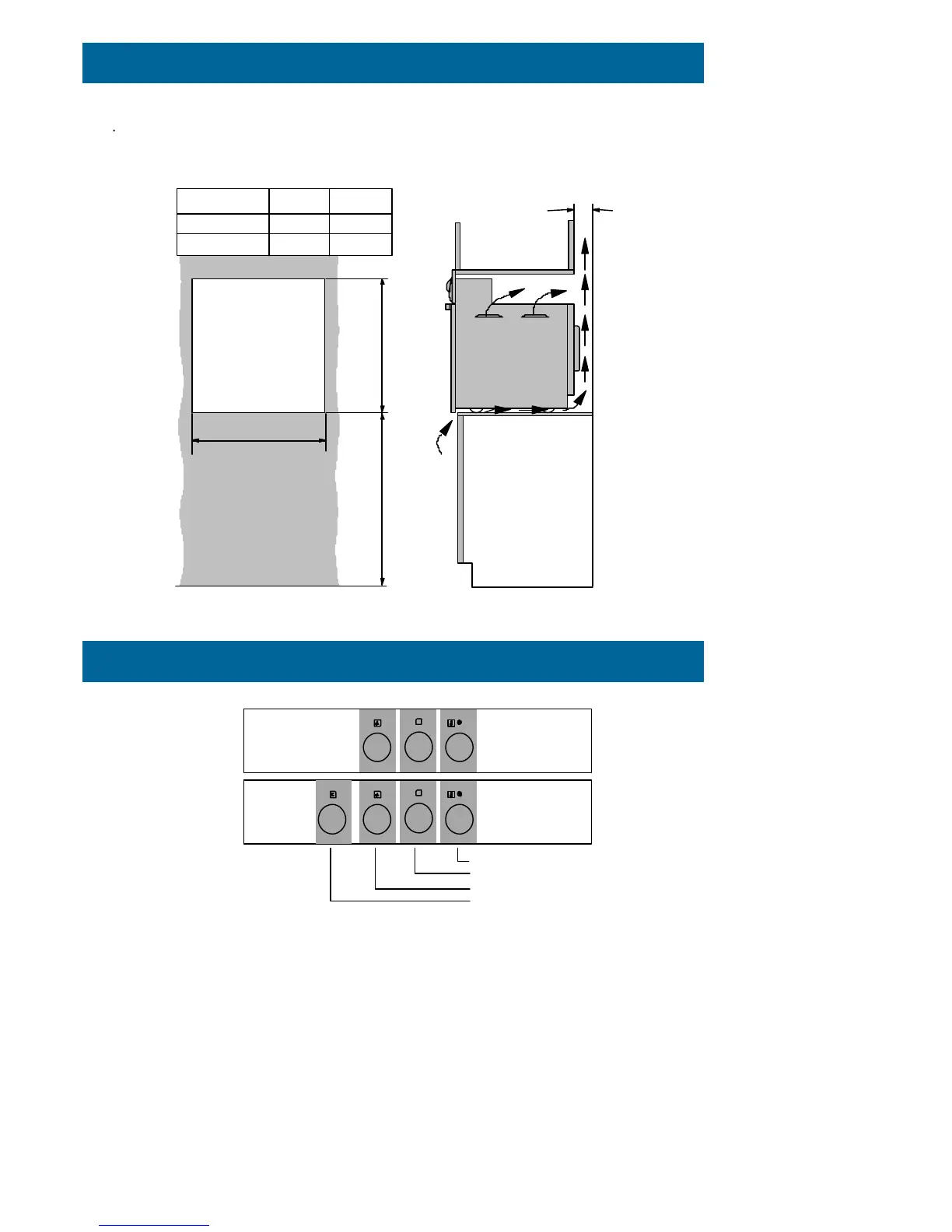

Typical section showing
ventilation requirements
565
(B)
Above floor
level
Floor
60
+
_
3
0
+
_
3
0
+
_
3
0
+
_
3
0
Dimension
(A)
Dimension (B)
590mm
900mm
840mm
650mm
600STE
600SMW
The control panel
600 STE
MULTIFUNCTION
600 SMW
MULTIFUNCTION
WITH WARMING
DRAWER
